GE V7768-312001、单板计算机、控制器模块、PLC配件
产品描述：
V7768-320000 350-9301007768-320000 A0 GE VME单板计算机主要用于处理和存储数据。
特征
•高达2.16 GHz的Intel Core 2 Duo处理器
•高达4 Mbyte L2缓存
•通过单个SODIMM实现高达2 Gbyte DDR2 SDRAM
•667 MHz系统和内存总线
•高达8 Gbyte可启动CompactFlash
•一个PCI-X PMC扩展站点
•用于PMC237CM1/VPMC扩展板的板对板连接
•前面板上的2个千兆以太网
•2个串行端口
•4个USB 2.0端口
•2个SATA•PS/2前面板上的键盘/鼠标
•操作系统支持Windows®XP、VxWorks®和Linux®

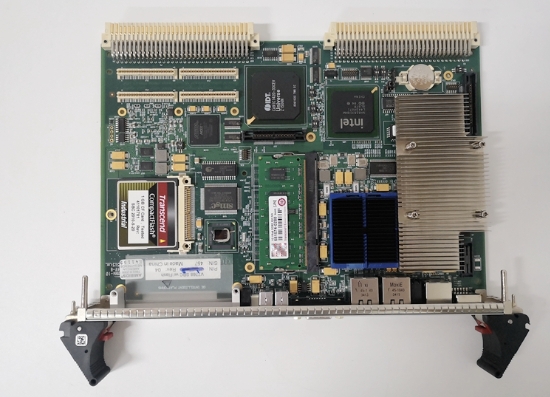

V7768是GE Fanuc Intelligent Platforms的VMEbus单板计算机，通过Intel Core 2Duo处理器和高达2 GB的DDR2 SDRAM提供高达2.16 GHz的处理速度。该板集成了Intel 945GME ExpressChipset，并提供了一个非常丰富的I/O集，使其成为我们庞大的集成体系结构VME SBC系列的一个非常灵活的补充。I/O选项包括千兆以太网、两个SATA接口、四个USB 2.0端口、前面板上的键盘/鼠标/SVGA，以及一个支持PCI-X的PMC站点。V7768还提供了赛扬®M处理器选项，可在上限工作温度上再提高20度。V7768为来自GE Fanuc Intelligent Platforms的PMC237CM1/V PMC扩展板提供了更多客户定义的I/O功能，除了V7768上的PCI-X PMC站点外，它还为客户提供了三个额外的PMC扩展站点。
应用领域
V7768-320000 350-9301007768-320000 A0 GE VME单板计算机广泛应用于通信、工业控制、航空航天、科研等领域。
Product Description:
V7768-320000 350-9301007768-320000 A0 GE VME single board computer is mainly used for processing and storing data.
features
Intel Core 2 Duo processor with up to 2.16 GHz
Up to 4 Mbyte L2 cache
• Achieve up to 2 Gbyte DDR2 SDRAM with a single SODIMM
667 MHz system and memory bus
Up to 8 Gbyte bootable CompactFlash
• A PCI-X PMC expansion site
Board to board connection for PMC237CM1/VPMC expansion board
Two Gigabit Ethernet ports on the front panel
• 2 serial ports
4 USB 2.0 ports
• 2 SATA • Keyboard/Mouse on PS/2 Front Panel
The operating system supports Windows ® XP, VxWorks, and Linux ®
V7768 is a VMEbus single board computer from GE Fanuc Intelligent Platforms, providing processing speeds of up to 2.16 GHz through an Intel Core 2Duo processor and up to 2 GB of DDR2 SDRAM. This board integrates the Intel 945GME ExpressChipset and provides a very rich I/O set, making it a very flexible supplement to our extensive integrated architecture VME SBC series. I/O options include Gigabit Ethernet, two SATA interfaces, four USB 2.0 ports, keyboard/mouse/SVGA on the front panel, and a PCI-X supported PMC site. V7768 also offers Celeron ® The M processor option can increase the upper operating temperature by an additional 20 degrees. V7768 provides more customer defined I/O functionality for the PMC237CM1/V PMC expansion board from GE Fanuc Intelligent Platforms. In addition to the PCI-X PMC site on V7768, it also offers customers three additional PMC expansion sites.
application area
V7768-320000 350-9301007768-320000 A0 GE VME single board computer is widely used in communication, industrial control, aerospace, scientific research and other fields.
