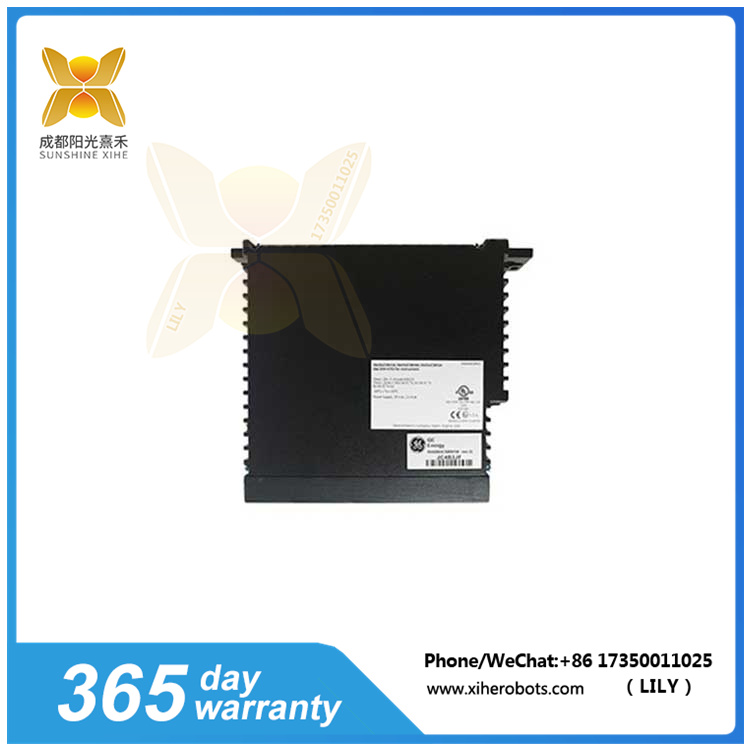

GE IS420UCSBH1A 、紧凑型Mark VIe控制器、UCSB 控制器模块







IS420UCSBH1A 产品描述：

General Electric的Mark VIe控制器IS420UCSBH1A类似于UCSC控制器，所有相同的一般信息都可以应用于UCSB模型。IS420UCSBH1A型号通常是紧凑型独立控制器，用于帮助处理控制器逻辑。

IS420UCSBH1A控制器是通用电气制造的第一款UCSB控制器，是Mark VIe控制安全系统系列的一部分。该控制器类似于UCSC控制器，虽然它没有相同的硬件，但操作该控制器所需的软件几乎相同。根据GEH-6725 Mark VIe和Mark VIeS，控制设备HazLoc说明指南，IS420UCSBH1A控制器被标记为Mark VIe、LS2100e和EX2100e控制器。该控制器还有一个特定的微处理器，安装在该设备中的微处理器是600 MHz EP80579 Intel处理器。

IS420UCSBH1A供电所需的电气/电源额定值，额定值如下，最小电压为18直流电，最大电压为30伏直流电，标称额定功率为24和28伏直流电。此设备使用的最大额定电流为1.5 ADC。

安装时，需要通过多项认证才能将IS420UCSBH1A控制器安装在危险和非危险场所。例如，当安装在ATEX Zone 2，Group IIC时，需要的认证是UL DEMKO 12 ATEX 1114875X。有关安装在I类、2区、IIC组、非危险和I类、2区、A、B、C和D组的控制器的所有认证都是相同的，这些位置的认证要求是UL E207685。

IS420UCSBH1A优点
UCSB 控制器具有以下优势：

单模块

内置电源

无需跳线设置

无电池

无风扇

更小的面板占地面积

闪存可以轻松更新

UCSB 控制器安装在面板中，并通过板载 I/O 网络 (IONet) 接口与 I/O 包进行通信。IONet 是一种私有专用以太网，仅支持 Mark 控制 I/O 模块和控制器。

特征
微处理器：：600 MHz Intel EP80579

内存：256 MB DDR2 SDRAM，带纠错码 (ECC)、闪存支持的 SRAM、NAND 闪存大小为 2 GB

操作系统：QNX Neutrino

重量：2.4磅





IS420UCSBH1A Product Description:
The Mark VIe controller IS420UCSBH1A from General Electric is similar to the UCSC controller, and all the same general information can be applied to the UCSB model. The IS420UCSBH1A model is typically a compact independent controller used to assist in handling controller logic.
The IS420UCSBH1A controller is the first UCSB controller manufactured by General Electric and is part of the Mark VIe Control Safety System series. This controller is similar to the UCSC controller, although it does not have the same hardware, the software required to operate the controller is almost the same. According to the GEH-6725 Mark VIe and Mark VIeS, the IS420UCSBH1A controller is labeled as a Mark VIe, LS2100e, and EX2100e controller based on the HazLoc instruction manual for control equipment. The controller also has a specific microprocessor, which is a 600 MHz EP80579 Intel processor installed in the device.
The electrical/power ratings required for IS420UCSBH1A power supply are as follows, with a minimum voltage of 18 DC and a maximum voltage of 30 V DC, and nominal rated power of 24 and 28 V DC. The maximum rated current used by this device is 1.5 ADC.
During installation, multiple certifications are required to install the IS420UCSBH1A controller in hazardous and non hazardous locations. For example, when installed in ATEX Zone 2, Group IIC, the required certification is UL DEMKO 12 ATEX 1114875X. All certifications for controllers installed in Class I, Zone 2, IIC group, non hazardous and Class I, Zone 2, A, B, C, and D groups are the same, and the certification requirements for these locations are UL E207685.
IS420UCSBH1A Advantages
The UCSB controller has the following advantages:
Single module
Built in power supply
No need for jumper settings
No battery
No fan
Smaller panel footprint
Flash memory can be easily updated
The UCSB controller is installed in the panel and communicates with the I/O pack through the onboard I/O network (IONet) interface. IONet is a private dedicated Ethernet that only supports Mark controlled I/O modules and controllers.
features
Microprocessor: 600 MHz Intel EP80579
Memory: 256 MB DDR2 SDRAM with error correction code (ECC), SRAM supported by flash memory, NAND flash memory size of 2 GB
Operating System: QNX Neutrino
Weight: 2.4 pounds
