0-57100 Control logic module

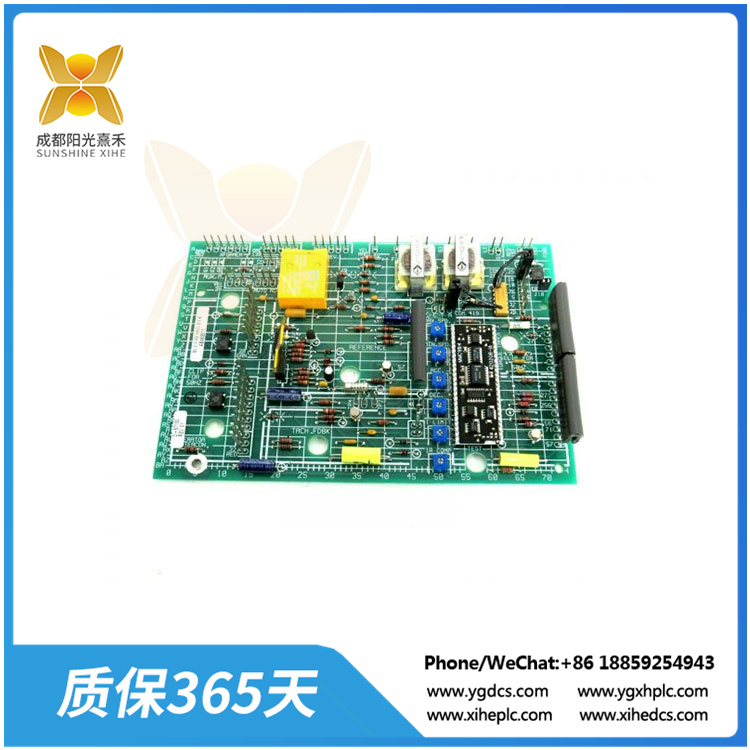

The 0-57100 is a circuit board component for Reliance drives, usually Mini Pak Plus DC variable speed drives.

0-57100 as a regulator/control logic module. It has been discontinued by the manufacturer and is no longer produced. 0-57100 is marked on both sides with reference hashes, which are represented by numbers on one axis and letters on the other. Components do not carry any type of reference mark, but are sometimes labeled with their purpose and usually have their original manufacturer part number printed on their surface.

Drill holes in 0-57100 to install hardware in one corner and board in the other place three times. The surface of the board has six slightly larger circular openings. The board assembly consists of six potentiometers, two transformers, a relay, several transistors, and two surface-wired female pin connectors. The board also features four integrated circuits, metal film resistors and capacitors made of various media, including aluminum electrolysis, ceramics and polyester vinyl. The circuit board has multiple terminal pins. Each thread tends to have some sort of label, either an individual pin or the whole thread. The back of the board is marked with several additional codes, including 801416-68A.
