0-57210-31 115/230VAC第一相主电路板

Description

0-57210-31     115/230VAC第一相主电路板

0-57210-31     115/230VAC第一相主电路板

The 0-57210-31 module is a regulator board which was designed by Reliance Electric. The 0-57210-31 regulator board is not being made by the original manufacturer anymore, but AX Control makes an attempt to supply it for our customers. Check on this product’s availability in our stock by reaching out to us over the phone or through email or by looking on our website.

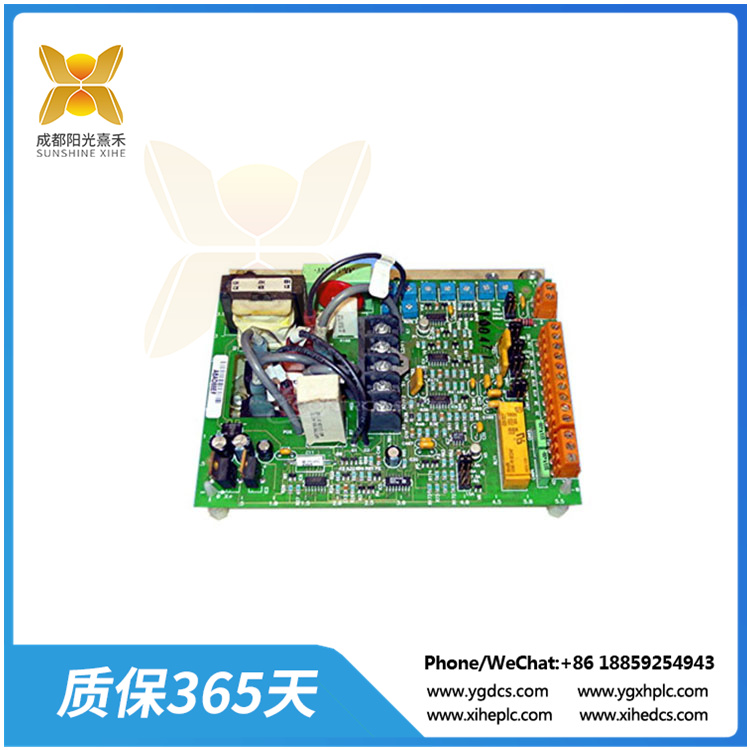

The 0-57210-31 regulator board is a small board but it is packed with numerous electrical components, both large and small. The largest feature is the power cube, which has numerous wires coming out of that connect to different places on the regulator board. There is also a large terminal block right next to the power cube. In the same vicinity, you will also find a group of five large terminals. On the opposite side of the board, there is a much thinner terminal strip that runs almost the entire length of the board.

Surrounding the larger components, you will find numerous much smaller components. The most plentiful of these components on the board would have to be the resistors. In addition to that, you will also find numerous MOVs, integrated circuits, capacitors, and jumpers.

The board is placed on top of a larger metal piece that makes it easier for mounting to surfaces such as panels. The top of the metal piece has two holes for mounting. The top and bottom parts of this metal piece also have screws.

The 0-57210-31 regulator board has a total weight of only approximately 1.40 lbs. or 0.64 kg.

Frequently Asked Questions about 0-57210-31
How does the 0-57210-31 connect to other devices such as drives?
The 0-57210-31 connects to other devices via the blue and pink cables located on the upper half of the circuit board.

Where can I find the manual for the 0-57210-31?
The 0-57210-31 does not have a specific manual but it is listed in the DC2 Series manual. You can find the DC2 manual on our website, axcontrol.com.

What drives are compatible with the 0-57210-31?
The 0-57210-31 is compatible with a variety of Reliance DC2 including the DC2-66U, DC2-76U, and the DC2-84U.

What is the 0-57210-31’s output current?
The 0-57210-31 has an output current of 90/180 VDC.
