0-60029-1 信实电接口卡DPS

Description

0-60029-1 信实电接口卡DPS

产品描述
0-60029-1信实接口卡/ DPS PMI交流并行SA 3000

来自信实的0-60029-1是一种电路板和面板模块，用于该公司的驱动器，最常用的是SA 3000。

0-60029-1作为接口卡使用。前面板上除了安装后用于固定模块的两颗螺钉和标识为“P1/并联电源模块接口”的单母连接器外，其他全部裸露。面板大约有8英寸高。上面有公司的标志和董事会的身份证号。面板通过两个螺钉连接到电路板上。

0-60029-1的电路板部分由9个晶体管、14个集成电路、金属膜电阻器、二极管和陶瓷电容器组成。它还有三个薄膜电阻器(TDP16032002)。这些有两个标准电路在一个模制的外壳结构，由高度稳定的薄膜材料。后边缘有一个单一的直角接口连接器位于其中心。大多数组件都标有引用指示符。板子的两边都打上了hash标记，所有的角落都经过了工厂的钻孔。

有关单板组件的更多信息，或关于如何安装在正确位置的详细信息，请参阅用户指南或数据表等技术支持产品。这些产品最初由Reliance提供。它们现在可以通过其他制造商如Baldor-Reliance或可能的Asea Brown Boveri获得。0-60029-1单板元器件为静电敏感产品。开箱前请阅读并遵守所有安全和处理程序。

0-60029-1

0-60029-1 信实电接口卡DPS

Product Description
0-60029-1 Reliance Interface Card / DPS PMI AC Parallel SA 3000

The 0-60029-1, from Reliance, is a circuit board and faceplate module manufactured for use within the company’s drives, most often the SA 3000.

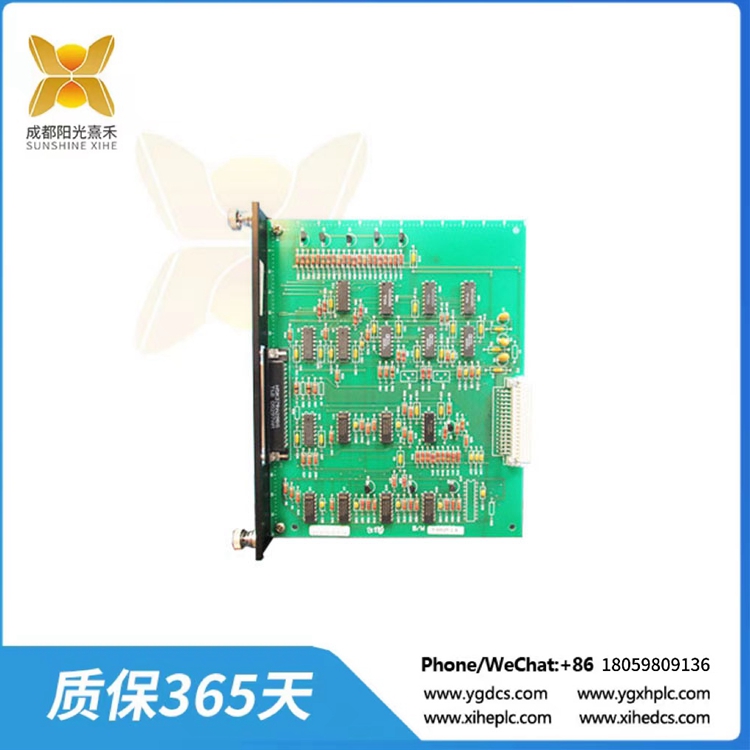

The 0-60029-1 functions as an Interface Card.  The front faceplate is bare except for the two screws used to lock the module in place after installation and a single female connector that is labeled P1/Parallel Power Module Interface.  The faceplate is approximately eight inches high.  It is marked with the company logo and with the board’s ID number.  The faceplate attaches to the circuit board via two screws.

The circuit board portion of the 0-60029-1 is populated by nine transistors, fourteen integrated circuits, metal film resistors, diodes, and ceramic capacitors.  It also has three thin-film resistors (TDP16032002.) These have two standard circuits in a molded case construction made from highly-stable thin-film material.   The rear edge has a single right-angled interface connector located in its center.  Most components are marked with reference designators.  The board is marked with hash marks along two edges and is factory-drilled in all corners.

For more information regarding board components, or for detailed information about how to install this board in its proper location, please refer to technical support products like user guides or data sheets.  These products were originally provided by Reliance. They may be available now through other manufacturers such as Baldor-Reliance or possibly Asea Brown Boveri.  The 0-60029-1 board component is a static-sensitive product.  Please read and follow all safety and handling procedures before unboxing.
