0-60031-5    I/O解析器驱动PMI模块

产品描述
0-60031-5 I/O解析器驱动器PMI模块

0-60031-5是由Reliance制造的电路板，作为其各种驱动系统的组件，最常见的是自动化系列驱动器。0-60031-5被认为是一个过时的零件，不再在积极生产。它通常被标记为信实部分。然而，公司结构的变化将信实电气的这一部分与其他制造商合并。您要更换的部件最初可能来自Baldor-Reliance或Asea Brown Boveri。

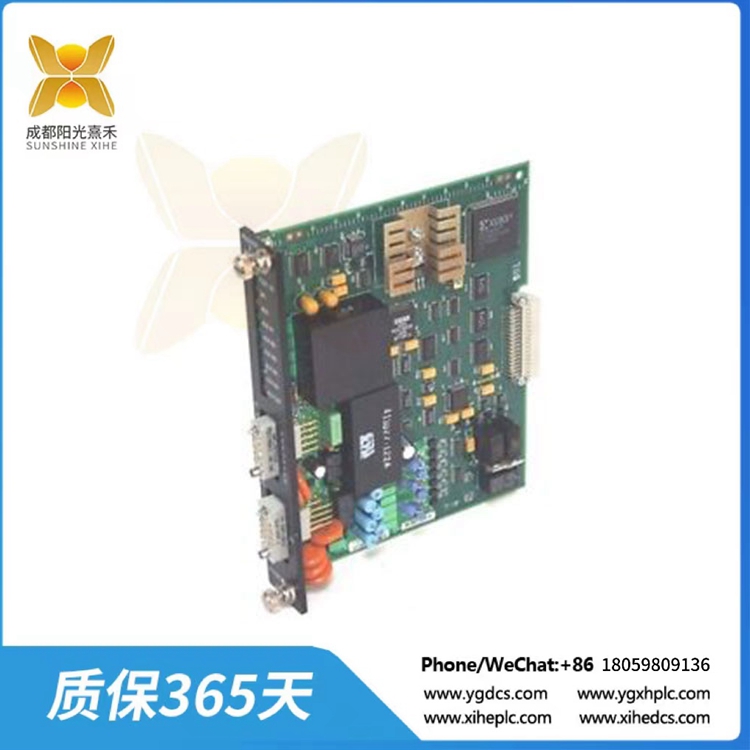

0-60031-5是一个解析器和驱动器I/O PMI模块。这个组件有一个狭窄的面板，在其下半部分有两个母插头连接器。这些被标记为“解析器反馈”和“驱动器I/O”。主板还有9个LED指示灯(按2绿1红5绿1红的模式安装)。它们被标记为fdbk, rpi, mcr, aux in1, aux in2, auxin3, auxin4, auxin5和aux out。

0-60031-5板组件包括位于后边缘中心的多针直角接口连接器。它有三个继电器，一个电感线圈，一个变压器，磁盘电容器，高压电容器，晶体管，电阻器和二极管。该板有一个3000uV双极运算放大器安装在一个散热器内。这是位于左板边缘。它也有超过35个集成电路，包括现场可编程门阵列。

0-60031-5

0-60031-5    I/O解析器驱动PMI模块

Product Description
0-60031-5 I/O Resolver Drive PMI Module

The 0-60031-5 is a circuit board fabricated by Reliance as a component for their various drive systems, most usually the Automate series of drives.   The 0-60031-5 is considered an obsolete part and is no longer in active production. It is typically notated as a Reliance part. However, changes in company structure merged this portion of Reliance Electric with other manufacturers. The part you are replacing may have shipped originally from Baldor-Reliance or Asea Brown Boveri.

The 0-60031-5 is a Resolver and Drive I/O PMI module.  This component has an attached narrow faceplate with two female plug connectors in its lower half.  These are labeled ‘resolver feedback’ and ‘drive I/O.’ The board also has nine LED indicators (mounted in a pattern of two green, one red, five green, one red.)  These are labeled fdbk ok, rpi, mcr, aux in1, aux in2, auxin3, aux in4, auxin5 and aux out.

The 0-60031-5 board component includes a multi-pin right angled interface connector located at the center of the rear edge.  It has three relays, an inductor coil, a transformer, disk capacitors, high-voltage capacitors, transistors, resistors, and diodes.  The board has a 3000uV Bipolar Operational Amplifier mounted within a heat sink. This is located on the left board edge. It also has over thirty-five integrated circuits including field programmable gate arrays.
