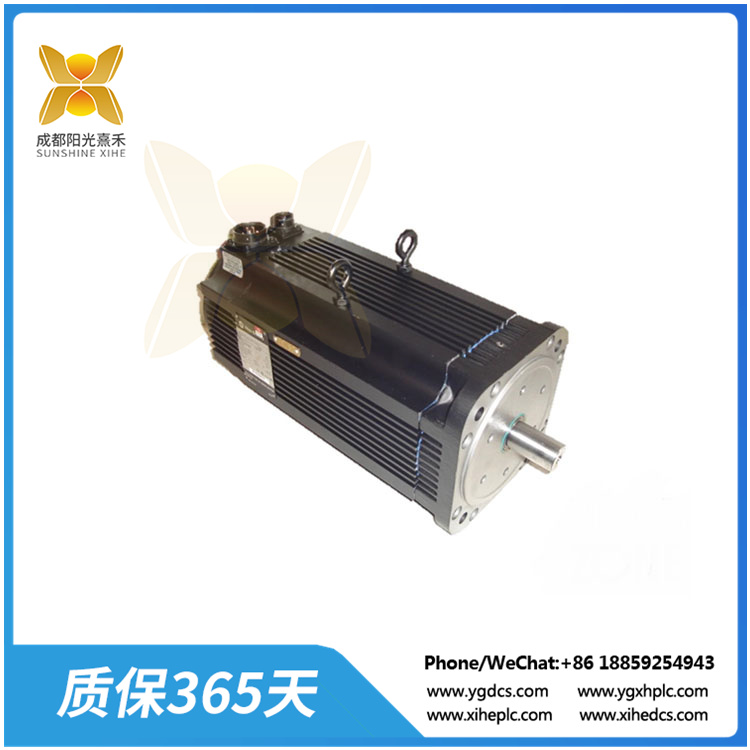

1326AB-B730E-M2L 高性能交流伺服电机
基本伺服电机描述
1326AB-B730E-M2L伺服电机是Allen-Bradley设计的高性能三相无刷交流同步电机系列，可满足伺服系统应用的严格要求。该系列标准dac伺服电机可与1391交流伺服控制器配合使用。这些电机与所选放大器的性能参数列在第8页。典型的速度-转矩曲线(见第9页)描述了这些电机和控制器组合的运行包络。
每台电机具有以下标准特性:
•永磁转子增加伺服响应。
•三相正弦绕线定子场的热量直接传递到环境，并在低速平稳运行。
•无刷解析器提供位置，换相和速度反馈信息。这也提供了耐用性，在恶劣的环境下，没有车载电子马达。1391四B(可选)编码器输出(高达2048 ppr)是通过解析器反馈产生的。
•100%连续额定输出扭矩在失速(零rpm)。
•精确平衡0.0005“(0.0127毫米)总峰值位移。
•垂直轴上下安装。
•TENV结构。
•IP65等级(当与轴密封选项一起使用时)，可承受恶劣环境。电机是防尘的，能够承受脉动水射流，没有液体进入电机。重要:当使用外部安装的编码器/解析器反馈或鼓风机包时，1326AB电机失去IP 65额定值。
•电机绕组中的常闭热开关(1A时额定115V AC, 1A时额定24V DC)提供热过载指示。
•环保密封的电源和反馈电缆封装。电源和解析器反馈电缆可按标准(柔性)，轨道(多柔性)或延长长度(ES)订购。
•MIL规格连接器是标准的。
•性价比高的铁氧体磁铁。
•UL认可的绝缘系统(文件# E57948)。
1326AB-B730E-M2L 高性能交流伺服电机
Basic Servomotor Description
The 1326AB-B730E-M2L Servomotors are a family of high performance, three-phase,brushless AC synchronous motors designed by Allen-Bradley to meet thestringent requirements of servo system applications. This series of standardAC servomotors can be used with 1391 AC Servo Controllers. The performance parameters of these motors with selected amplifiers are listed onpage 8. The typical speed-torque curves (see page 9) depict the operational envelope of these motor and controller combinations.
Each motor has the following standard features:
• Permanent magnet rotor for increased servo response.
• Three-phase sinusoidal wound stator field for direct transfer of heat toambient, and smooth operation at low speeds.
• Brushless resolver supplies position, commutation & velocity feedbackinformation. This also provides durability in harsh environments by nothaving on-board electronics in the motor. 1391 A Quad B (optional)encoder output (up to 2048 ppr) is generated via resolver feedback.
• 100% continuous rated output torque at stall (zero rpm).
• Precision balance of 0.0005” (0.0127 mm) total peak-peakdisplacement.
• Vertical shaft up or down mounting.
• TENV construction.
• IP65 rated (when used with the Shaft Seal option) to withstand harshenvironments. Motor is dust-tight and able to withstand pulsating waterjets without liquid entering the motor.Important: 1326AB motors lose the IP 65 rating when externallymounted encoder/resolver feedback or blower packages are used.
• Normally closed thermal switch in the motor winding (rated 115V AC at1A, 24V DC at 1A) provides thermal overload indication.
• Environmentally sealed power and feedback cable packages. Power andresolver feedback cables can be ordered as standard (flex), track(multi-flex) or extended length (ES).
• MIL spec connectors are standard.
• Ferrite magnets for cost effective performance.
• UL recognized insulation system (file # E57948).
