1336-SN-SP10A 74101-363-51 逆变器缓冲器

Description

1336-SN-SP10A 74101-363-51 逆变器缓冲器

描述:Allen-Bradley 1336- sn – sp10a是Bulletin 1336驱动器的一个组件。该单元是用于1336 Plus, Plus II，冲击和力驱动的逆变器缓冲器。这用于帧E驱动器。

品牌:Allen-Bradley /罗克韦尔自动化
系列:1336 PCB板
部件编号:1336-SN-SP10A

产品类型:带缓冲PCB的备件套件
兼容性:1336 PLUS, PLUS II，力和冲击

1336- sn – sp10a用于Allen-Bradley的1336可调频率交流驱动器。它特别兼容1336 Plus, Plus II，冲击和力驱动器。本产品为二级装配部件的备品备件。每个驱动器使用三(3)减震器套件。

该缓冲器印刷电路板(PCB)用于帧E或输出功率为150、200、250和X300HP的驱动器。缓冲板安装在驱动器的主机箱内部，位于转换器舱内桥式散热器的一侧。

当更换这个板时，电源必须从驱动器中取出，最好是锁定在访问之外。即使驱动器的电源被移除，也不要立即触摸组件，因为它具有短期存储电压的电容器。在继续之前，请测量驱动器的逆变器托架上的TB1端子座上的+DC和-DC。同时，请严格遵守静电防护措施，避免损坏其他固态设备。

要卸载缓冲板，请拆卸终止于+06和-16插接连接的引线。根据接线端子的出处正确地标记这些电线。卸载位于81、82和83端子的引线。相应地给电线贴上标签。从四(4)个塑料支架上卸下驱动器。安装新板，根据四(4)个孔对齐板，并将标记的引线终止到适当的插接连接。

1336-SN-SP10A 74101-363-51

1336-SN-SP10A 74101-363-51 逆变器缓冲器

Description: The Allen-Bradley 1336-SN-SP10A is a component of the Bulletin 1336 drives. This unit is an Inverter Snubber used for 1336 Plus, Plus II, Impact and Force drives. This is used for Frame E drives.

Brand ：Allen-Bradley / Rockwell Automation
Series ：1336 PCB Boards
Part Number ：1336-SN-SP10A

Product type ：Spare part kit with snubber PCB
Compatibility：1336 PLUS, PLUS II, FORCE and IMPACT

The 1336-SN-SP10A is used for the 1336 Adjustable Frequency AC drive of Allen-Bradley. It is particularly compatible for the 1336 Plus, Plus II, Impact and Force drives. This product is a spare part item that is a Level 2 Assembly component. Three (3) Snubber kits are used for each drive.

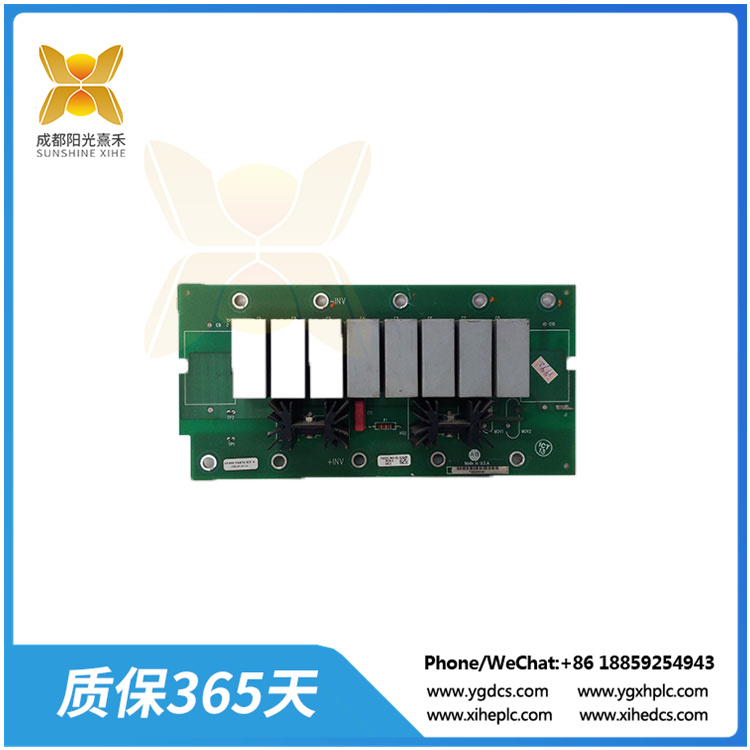

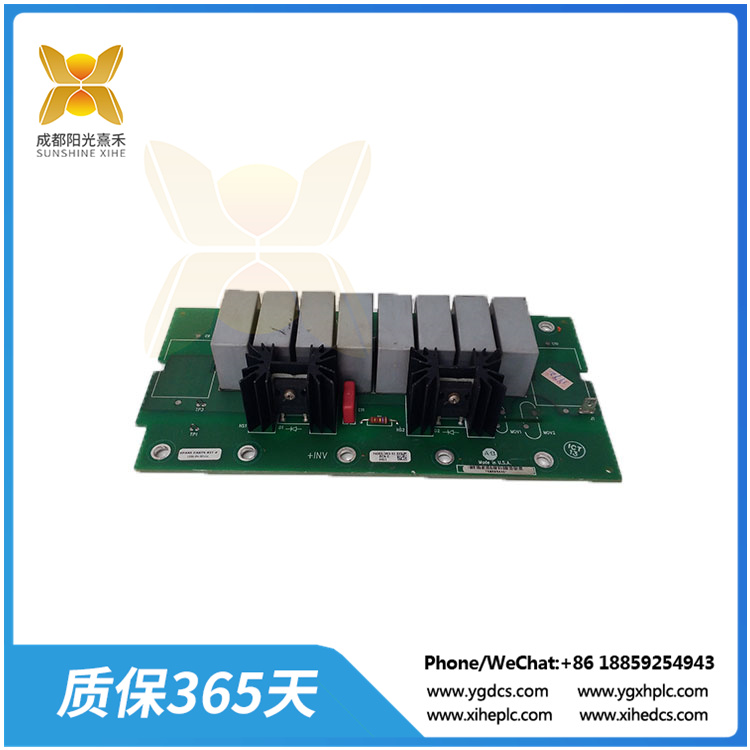

This Snubber Printed Circuit Board (PCB) is used for drives with Frame E or those with output power of 150, 200, 250 and X300HP. The snubber board is installed inside within the drive’s main chassis, located on the side of the bridge heatsink in the converter bay.

When replacing this board, power must be removed from the drive and ideally locked out from access. Do not immediately touch the components even if the drive’s power is removed as it has capacitor that store voltage for a short period. Before proceeding, measure the +DC and -DC on the TB1 Terminal Block which may be found in the inverter bay of the drive. Additionally, observe electrostatic discharge preventive measures to prevent damage to other solid-state devices.

To uninstall the snubber board, remove the leads terminated at +06 and -16 stab-on connections. Tag these wires properly according to the terminal where it came from. Uninstall also the leads located at 81, 82 and 83 terminals. Tag the wires accordingly. Remove the drive from the Four (4) plastic stand-offs. Install the new board by aligning the board according to the Four (4) standoff holes and terminating the tagged leads to the appropriate stab-on connections.
