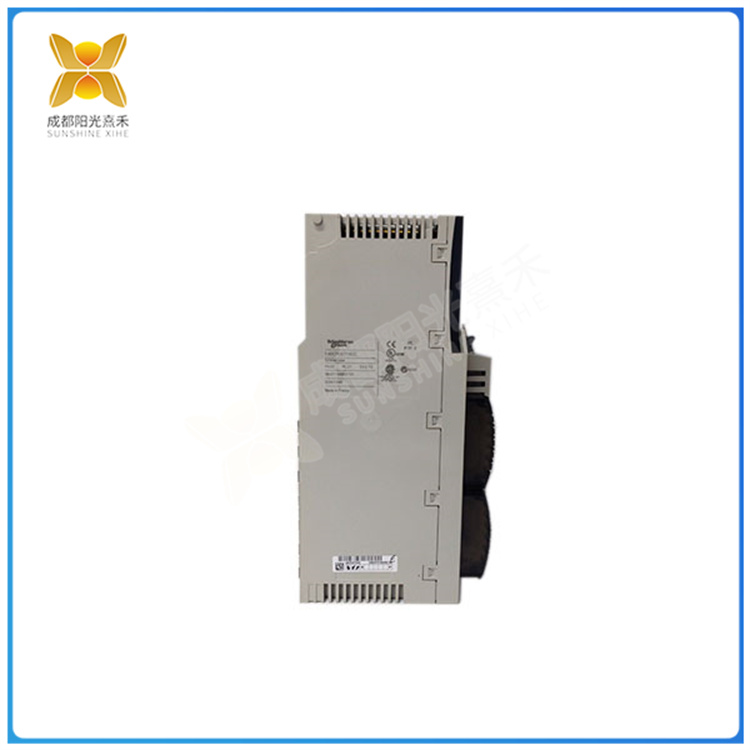

140CPU67160 主要体现在指令的执行和数据存储方面

Description

140CPU67160 主要体现在指令的执行和数据存储方面

CPU处理器模块140CPU67160 的工作原理可以概括为取指、解码、执行和写回四个阶段。

取指阶段：CPU从内存中获取指令并放入指令寄存器中，指令的格式包括操作码和操作数地址。

解码阶段：指令寄存器中的指令经过译码，确定该指令应进行何种操作以及操作数在哪里。

执行阶段：CPU根据译码结果，通过内部总线将数据送到相应的寄存器或存储器中，然后进行相应的运算。

写回阶段：运算完成后，结果被写回到通用寄存器或内存中，等待下一个指令继续执行。

CPU处理器模块的工作原理主要是基于冯·诺依曼结构，程序和数据统一存储，指令和数据需要从同一存储空间存取，经由同一总线传输，无法重叠执行。根据冯·诺依曼结构，CPU的工作分为取指令、指令译码、执行指令、访存取数和结果写回五个阶段。

CPU的执行阶段和写回阶段是相互关联的，它们之间的关系主要体现在指令的执行和数据存储方面。

在执行阶段，CPU根据指令的要求进行相应的运算或操作，得到最终的结果。这个阶段的任务是完成指令所规定的各种操作，具体实现指令的功能。在执行阶段，CPU的不同部分被连接起来，以执行所需的操作。如果指令要求完成一个加法运算，算术逻辑单元ALU将被连接到一组输入和一组输出，输入端提供需要相加的数值，输出端将含有最后的运算结果。

在写回阶段，CPU将执行阶段得到的结果数据“写回”到某种存储形式中。结果数据经常被写回到CPU的内部寄存器中，以便被后续的指令快速地存取。在有些情况下，结果数据也可被写入相对较慢、但较廉价且容量较大的主存。

因此，140CPU67160 执行阶段和写回阶段是紧密相关的。执行阶段产生结果数据，而写回阶段则将结果数据存储到适当的存储形式中，以便后续指令可以访问和使用这些数据。这两个阶段的协同工作使得CPU能够有效地完成指令的执行和数据的存储。

140CPU67160 主要体现在指令的执行和数据存储方面

The working principle of the CPU processor module 140CPU67160 can be summarized as four stages: taking the finger, decoding, executing and writing back.

Reference phase: the CPU gets instructions from memory and puts them into the instruction register, the format of the instruction includes the opcode and the operand address.

Decoding stage: The instruction in the instruction register is decoded to determine what operation the instruction should perform and where the operand is.

Execution stage: According to the decoding result, the CPU sends the data to the corresponding register or memory through the internal bus, and then carries out the corresponding operation.

Write back stage: After the operation is complete, the result is written back to the general register or memory, waiting for the next instruction to continue.

The working principle of the CPU processor module is mainly based on the von Neumann structure, the program and data are stored uniformly, and the instructions and data need to be accessed from the same storage space, transmitted through the same bus, and cannot be overlapped. According to the von Neumann structure, the work of the CPU is divided into five stages: fetching instructions, decoding instructions, executing instructions, accessing numbers and writing back results.

The execution phase and the write back phase of the CPU are related to each other, and the relationship between them is mainly reflected in the execution of instructions and data storage.

In the execution phase, the CPU performs corresponding operations or operations according to the requirements of the instruction to obtain the final result. The task of this stage is to complete the various operations specified in the instruction and realize the function of the instruction. During the execution phase, the different parts of the CPU are connected to perform the desired action. If an instruction requires the completion of an addition operation, the arithmetic logic unit (ALU) will be connected to a set of inputs and a set of outputs, with the input providing the values to be added and the output containing the final result of the operation.

In the write back phase, the CPU “writes” the resulting data from the execution phase back into some form of storage. The resulting data is often written back into the CPU’s internal registers so that it can be quickly accessed by subsequent instructions. In some cases, the resulting data can also be written to relatively slow, but cheaper, and large-capacity main memory.

Therefore, the 140CPU67160 execution phase and the write back phase are closely related. The execution phase produces the result data, while the write back phase stores the result data in an appropriate form of storage so that it can be accessed and used by subsequent instructions. These two stages work together so that the CPU can effectively complete the execution of instructions and data storage.
