1746-IA16 交流输入模块

Description

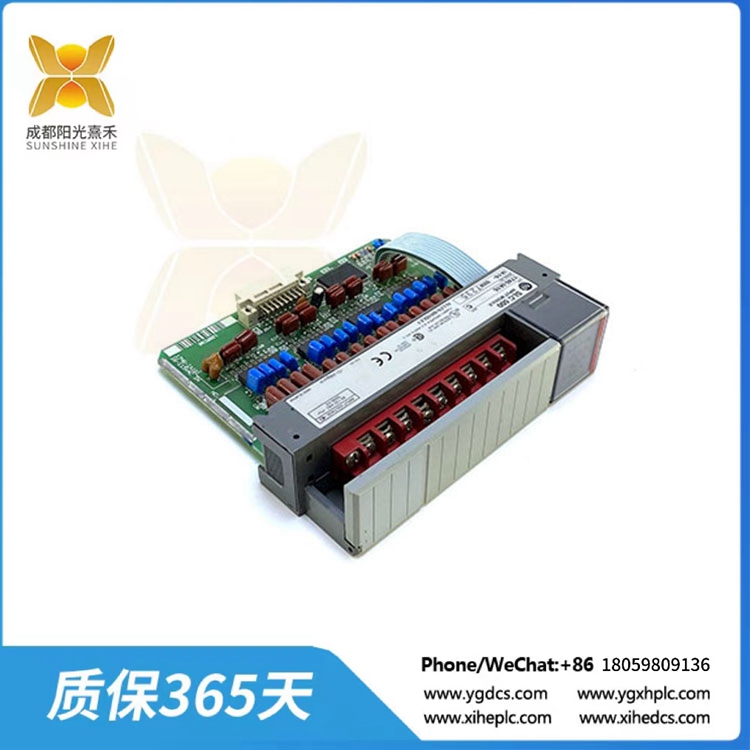

1746-IA16 交流输入模块

Allen-Bradley 1746-IA16是一种交流输入模块，兼容用作SLC 500控制器平台的组件。该输入模块有16个通道，接受交流信号电压范围为85-132 VAC。

输入模块是任何可编程逻辑控制器(PLC)的必要组成部分，因为它在过程中为离散设备提供实时接口。它表示信令设备的实际状态，供控制器进行逻辑处理时参考。大多数PLC系统将输入扫描作为执行用户程序的主要阶段。如果没有检测到输入信号，控制器将没有执行程序的参考。

这个交流输入模块有二十(20)个端子。所有终端都使用终端18和19作为内部连接的公地。该模块的端子块是可移动的，允许更换输入模块，同时消除了重新连接输入端子的需要。

它具有可调参数，以微调模块的操作。只要机箱有可用槽位支持安装，安装1746-IA16时不受限制。本模块可以安装在固定硬件或模块化硬件类型的控制器中，也可以安装在本地或扩展机架中。

本模块属于slc500交流输入模块，工作电压范畴为100-120VAC。对于200/240VAC电压操作，对应部件号为17460IM16。两个模块都不提供内部保护电路。任何将端接到该模块的交流输入设备都应与SLC 500输入电路的浪涌电流兼容。

Allen-Bradley 1746-IA16重0.34公斤，尺寸为5 × 2 × 6(13厘米× 5厘米× 15厘米)。控制器模块每点0.27瓦，最小为0.425瓦，总计4.8瓦。该模块具有100 – 120V交流输入信号电压类别，每公共16点和16输入。1746-IA16是一个通用的输入应用程序。安装为底盘式，有16个通道。工作电压范围从85 – 132V交流输入信号。它有一个用于可编程控制器的16通道数字交流输入模块。工作电压为85 – 132V AC, 47 – 63hz工作频率。5V DC时背板电流消耗为0.085 mA, 24V DC时为0.0 A。

ON-delay的信号在35ms时最大，OFF-delay的信号在45ms时最大。而最大OFF状态电压达到30V AC, OFF状态电流为2ma。120V AC时的输入电流为12 mA标称电流。1746-IA16的浪涌时间最长可达500微秒，最大浪涌电流为0.8 mA。

1746-IA16

1746-IA16 交流输入模块

The Allen-Bradley 1746-IA16 is an AC input module compatible for use as component of SLC 500 controller platform. This input module has Sixteen (16) channels that accepts AC signal voltage range of 85-132 VAC.

Input modules are necessary components of any Programmable Logic Controller (PLC) as it provides real-time interface to discrete devices in the process. It represents the actual state of signaling devices for reference of the controller for processing the logic. Most PLC systems perform Input scan as the primary phase for executing a user program. If input signals are not detected, the controller will have no reference for executing the program.

This AC input module has Twenty (20) terminals. All terminals are used with terminals 18 and 19 serving as internally connected commons. The terminal block of this module is removable allowing replacement of the input module while eliminating the need to reconnect the input terminations.

It has adjustable parameters to fine tune the module’s operation. There is no limit when installing the 1746-IA16 as long as the chassis has available slots to support the installation. This module may be installed in fixed hardware or modular hardware style controller, locally or in an expansion rack.

This module belongs to SLC 500 AC input module with operating voltage category of 100-120VAC. For 200/240VAC voltage operation, the counterpart part number is 17460IM16. Both modules does not offer internal protection circuitry. Any AC input device that will be terminated to this module shall be compatible with SLC 500 input circuit inrush current.

The Allen-Bradley 1746-IA16 weighs 0.34 kg and has 5 x 2 x 6 (13 cm x 5 cm x 15 cm) dimension. The controller module has 0.27 watts per point with min to 0.425 Watts and a total of 4.8 Watts. The module has a 100 – 120V AC input signal voltage category with 16 points per common and 16 inputs. The 1746-IA16 is a general-purpose input application. The mounting is a chassis-type and has 16 channels. The operating voltage ranges from 85 – 132V AC input signal. It has a 16-channel digital AC input module for a programmable controller. The operating voltage is 85 – 132V AC at 47 – 63 Hz operating frequency. The back-plane current consumption at 5V DC is 0.085 mA and it is 0.0 A at 24V DC.

The signal for the ON-delay is at its max at 35 ms and the signal for the OFF-delay is at max at 45 ms. While the maximum OFF-state voltage reaches 30V AC and OFF state current of 2 mA. The input current at 120V AC is 12 mA nominal. The 1746-IA16 has an inrush current time duration at maximum to 500 microseconds and 0.8 mA maximum inrush current.
