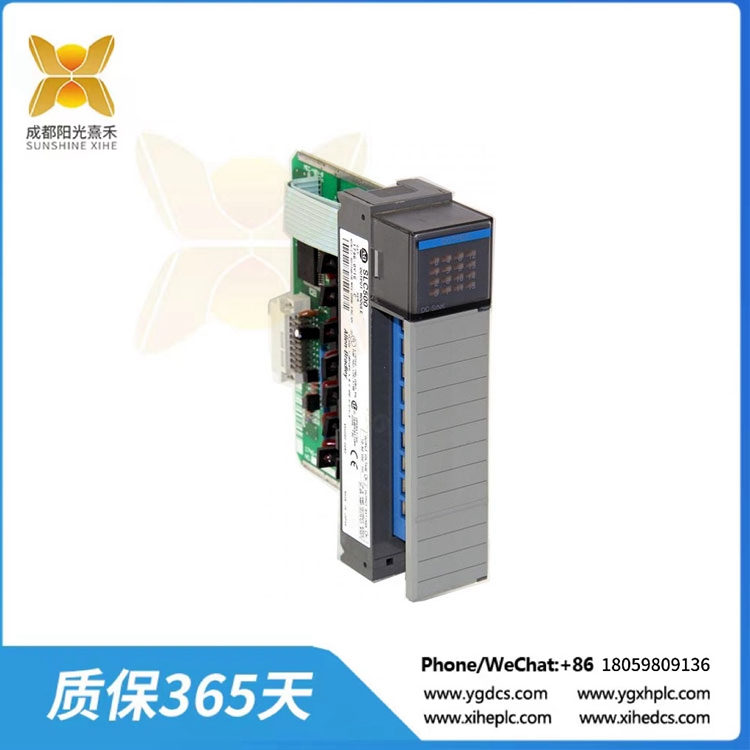

1746-OV16 I/O模块，数字，16通道输出，电流下沉

Description

1746-OV16 I/O模块，数字，16通道输出，电流下沉

1746-0V1 6是艾伦-布拉德利制造的离散输出模块。该模块在- -(1)个通道组中配有十六(16)个输出通道。它是一个吸收输出模块， 提供10-50VDC输出电压范围，最小输出为24VDC。 该模块非常适用于为DC操作的电气负载供电，如继电器线圈、指示和发声装置。

1746-0V16在5v直流电压下的背板电流消耗为0.270安培，关断状态漏电流为1 mA,最小负载电流也为1 mA。该输出模块的每个通道的信号延迟为0.1 ms(从开到关)和1.0 ms(从关到开)。模块每个点的连续输出电流在30°C(86″F)时为0.50 A,在60°C(140°F)时为0.25 A,而每个模块的连续输出电流在30°C(86°F)时为8.0 A,在60°C(140°F)时为4.0 A。该模块在0.5 A时最大导通压降为1.2V 1746-0V1 6的每点浪涌电流为3.0 A,持续10 ms，在30°C(86°F)下每1秒重复-次, 在60°C(140°F)下重复2秒。

1746-0V16安装在SLC 500机箱上。它是一个 单插槽宽度模块，直接连接到模块化风格的SLC 500硬件。它带有一个预先安装在模块 上的可拆卸接线盒。该端子板可从模块中移除，以实现更简单、更快速的接线活动。

这是一个与SLC 500系统兼容的1 6通道输出模块。每个点的散热量为0.388瓦，总散热量为7.6瓦。1746-0V16配有一个可拆卸的接线板， 允许您轻松连接或修改模块上的接线。它的工作电压范围为10- 50伏DC。它的背板功耗(0.27 A)高于1746-0V8和1746-0VP16模块。1746-0V1 6在开启状
态下的最大信号延迟为0.1ms,在关闭状态下的最大信号延迟为1ms。它的每个输出和每个模块的持续电流在30°C时分别为0.5A和8A,在60°C时分别为0.25A和4A。1746-0V16在0.5A和3A 下的最大关断状态泄漏为1 mA,最大导通状态压降为1.2V,每点最大浪涌电流为10ms。

1746-OV16

1746-OV16 I/O模块，数字，16通道输出，电流下沉

The 1746-0V1 6 is a discrete output module built by Allen Bradley. The module is equipped with sixteen (16) output channels in -(1) channel groups. It is an absorbing output module that provides a 10-50VDC output voltage range with a minimum output of 24VDC. The module is ideal for powering electrical loads operated by DC, such as relay coils, indicating and sounding devices.

The backplane current consumption of the 1746-0V16 at 5v DC voltage is 0.270 amp, the turn-off state leakage current is 1 mA, and the minimum load current is also 1 mA. The signal delay for each channel of the output module is 0.1 ms(from on to off) and 1.0 ms(from off to on). The continuous output current per point of the module is 0.50 A at 30°C(86″F) and 0.25 A at 60°C(140°F), while the continuous output current per module is 8.0 A at 30°C(86°F) and 4.0 A at 60°C(140°F). The module has a maximum on-voltage drop of 1.2V at 0.5A 1746-0V1 6 and a surge current of 3.0A per point for 10 ms, repeated – times every 1 second at 30°C(86°F) and 2 seconds at 60°C(140°F).

The 1746-0V16 is installed in the SLC 500 chassis. It is a single slot width module that connects directly to the modular style SLC 500 hardware. It comes with a detachable junction box pre-installed on the module. The terminal board can be removed from the module for simpler and faster wiring activities.

This is a 16 channel output module compatible with SLC 500 systems. The heat dissipation at each point is 0.388 watts, for a total heat dissipation of 7.6 watts. The 1746-0V16 comes with a removable patch panel that allows you to easily connect or modify the wiring on the module. It operates in a voltage range of 10-50 volts DC. Its backplane power consumption (0.27A) is higher than that of the 1746-0V8 and 1746-0VP16 modules. 1746-0V1 6 in open mode
The maximum signal delay in the state is 0.1ms and the maximum signal delay in the off state is 1ms. Its continuous currents per output and per module are 0.5A and 8A respectively at 30°C and 0.25A and 4A respectively at 60°C. 1746-0V16 has a maximum turn-off leakage of 1 mA at 0.5A and 3A, a maximum on-state voltage drop of 1.2V, and a maximum inrush current of 10ms per point.
