1756-L55 ControlLogix处理器模块

Description

1756-L55 ControlLogix处理器模块

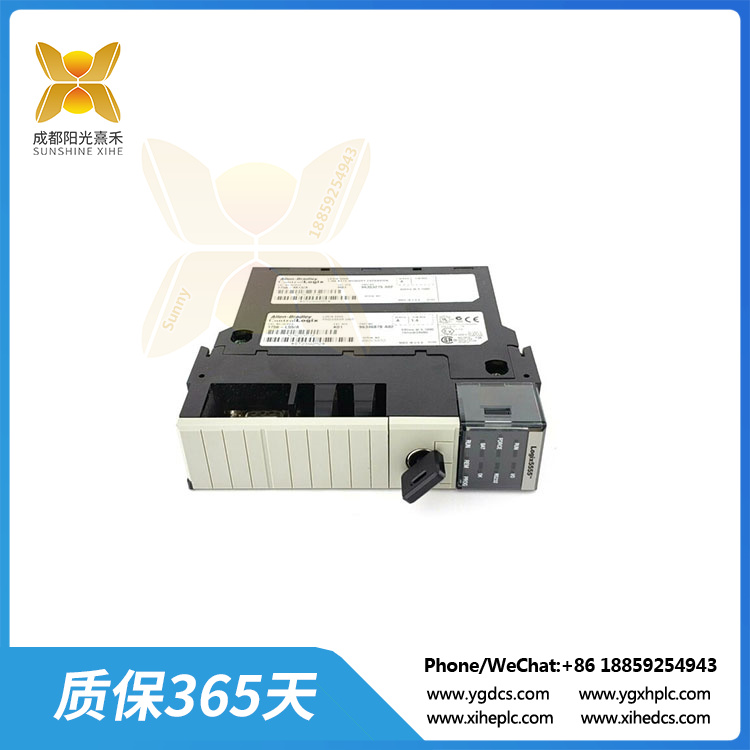

1756-L55是ControlLogix系列中的一个处理器模块，由Allen-Bradley/Rockwell Automation设计和生产。这款模块是ControlLogix工业环境中常用的组件，以其高质量和顶级性能而闻名。

该处理器模块在温度、湿度、振动和冲击耐受性方面满足不同的IEC 60068额定值要求，显示出其卓越的耐用性和可靠性。在背板电流方面，该模块在24伏特直流电时的背板电流为0.014安培，而在5.1伏特直流电时为1.23至1.25安培。此外，它的额定功率为5.6至5.7瓦，热耗散为每小时19.1至19.4 BTU。

在功能方面，1756-L55处理器模块具有基本绝缘类型和30V的连续隔离电压，并经过测试，可承受707V DC 60s的电压。此外，它还具有特定的传导RF抗扰度要求，并能在一定的存储和工作温度范围内正常工作。

ControlLogix结构体系是一个集成了多种控制功能的技术平台，包括顺序控制、运动控制、传动及过程控制等。与传统的可编程控制器不同，ControlLogix系统具有模块化的设计，允许用户根据具体应用选择适当的内存量、控制器个数和网络类型。这种柔性结构使得在同一机架内可以使用多个控制器、网络及I/O模块。

同时，ControlLogix控制器还提供了一种可升级的解决方案，能够对大量的输入输出点进行寻址。控制器可以插入ControlLogix输入输出机架的任一槽位中，并且多个控制器能插在同一个机架中，相互之间通过机架背板进行通讯但互相独立工作。此外，ControlLogix控制器还支持多种通信协议，如RS-232-C（DF1/DH-485协议）、DeviceNet、DH+、ControlNet、EtherNet/IP等，以实现与其他计算机或其他处理器的通信。

总的来说，1756-L55 ControlLogix处理器模块是一款高性能、可靠且灵活的工业自动化组件，能够满足各种复杂的控制需求。

1756-L55 ControlLogix处理器模块

The 1756-L55 is a processor module in the ControlLogix family, designed and produced by Allen-Bradley/Rockwell Automation. This module is a common component in ControlLogix industrial environments and is known for its high quality and top performance.

The processor module meets different IEC 60068 rating requirements in terms of temperature, humidity, vibration and shock resistance, demonstrating its exceptional durability and reliability. In terms of backplane current, the module has a backplane current of 0.014 amps at 24 volts DC, compared to 1.23 to 1.25 amps at 5.1 volts DC. In addition, it has a power rating of 5.6 to 5.7 watts and a heat dissipation of 19.1 to 19.4 BTU per hour.

In terms of functionality, the 1756-L55 processor module has a basic insulation type and a continuous isolation voltage of 30V, and has been tested to withstand a voltage of 707V DC 60s. In addition, it has specific conductive RF immunity requirements and can operate properly over a certain storage and operating temperature range.

The ControlLogix architecture is a technology platform that integrates multiple control functions, including sequence control, motion control, transmission and process control. Unlike traditional programmable controllers, the ControlLogix system has a modular design that allows users to select the appropriate amount of memory, number of controllers, and network type for their specific application. This flexible structure makes it possible to use multiple controllers, networks and I/O modules in the same rack.

At the same time, the ControlLogix controller also provides an upgradeable solution for addressing a large number of input and output points. Controllers can be inserted into any slot of the ControlLogix input/output rack, and multiple controllers can be inserted into the same rack and communicate with each other through the rack backplane but work independently of each other. In addition, ControlLogix controllers also support a variety of communication protocols, such as RS-232-C (DF1/DH-485 protocol), DeviceNet, DH+, ControlNet, EtherNet/IP, etc., to achieve communication with other computers or other processors.

Overall, the 1756-L55 ControlLogix processor module is a high-performance, reliable and flexible industrial automation component that can meet a wide range of complex control needs.
