1769-L23E-QB1B CompactLogix 控制器

Description

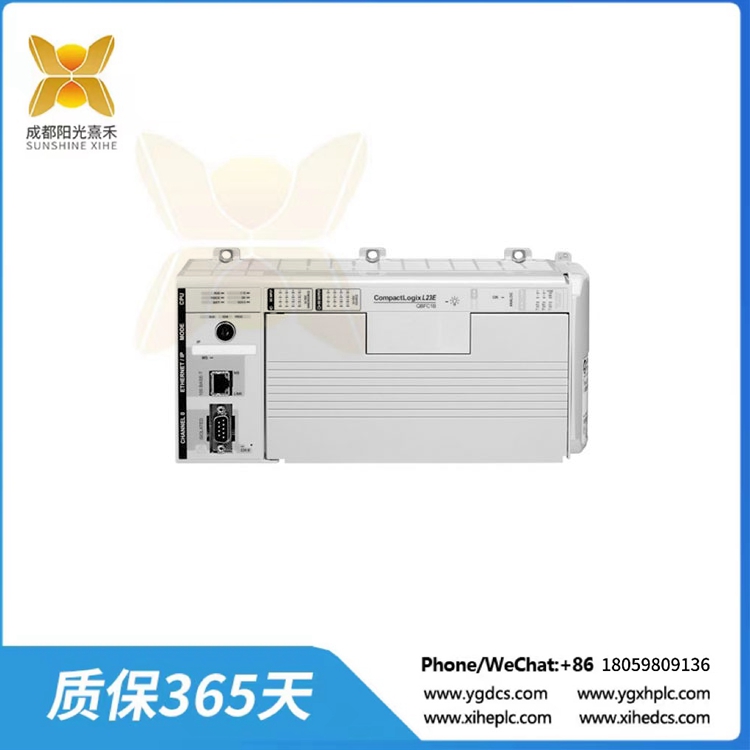

1769-L23E-QB1B   CompactLogix 控制器

1769-L23E-QB1B是Allen-Bradley封装的控制器。该控制器是CompactLogix 5370 L2产品类别的一部分，该产品具有嵌入式功能，使该控制器能够开箱即用。它具有集成电源，由24VDC的标称电源电压运行，为控制器的集成模块提供必要的背板电源。

此外，1769-L23E-QB1B还内置16路24VDC离散输入和16路离散输出。I/O扩展可以通过安装额外的三(3)1769紧凑型I/O模块来定制适合该控制器的应用要求。它还提供了512KB的用户内存，可以容纳多达32个周期或连续的任何组合，每个任务有100个程序。

对于控制器通信，1769-L23E-QB1B具有单个以太网端口和USB接口。两个端口都支持高速通信，以太网支持10/ 100mbps传输速率，RS232通信接口支持DF1, DH485和ASCII接口。这些端口特别支持与监控和数据采集(SCADA)，人机界面(HMI)以及相同以太网和RS232连接中的控制器的通信。

版本17.01.02，修订17.012;19.01.00修订19.015;20.01.00，修订20.013。

它有一个嵌入式的24伏直流电源和一个1000毫安的总线电流在5伏直流。1769-L23E-QB1B控制器的请求包间隔(RPI)速度在1到4个模块之间的扫描时间约为1.0毫秒。它配备了一个艾伦-布拉德利1769-BA可更换电池。在24伏直流电下，Allen-Bradley 1769-L23E-QB1B紧凑型控制器的输出电流为700毫安，耗散功率为7瓦。设备可以通过Allen-Bradley 1756-CP3或1747-CP3串行电缆连接到1769-L23E-QB1B。它在30摄氏度(86华氏度)下工作，电压为10到30伏。其他嵌入式功能包括3千欧姆的输入阻抗，250毫安的最大浪涌电流，最大5伏直流的断开状态电压，以及1.5毫安的断开状态电流。1769-L23E-QB1B紧凑型控制器还具有嵌入式输出功能，其中16单元输出，输出延迟时间为0.1毫秒，26.4伏直流时最大漏电流为1.0毫安。1769-L23E-QB1B控制器每个模块的电流在60摄氏度(140华氏度)时额定为4.0安培。1769-L23E-QB1B控制器的重量约为0.91千克(2磅)，它可以安装在DIN导轨或面板安装基座上。

1769-L23E-QB1B

1769-L23E-QB1B   CompactLogix 控制器

The 1769-L23E-QB1B is an Allen-Bradley packaged controller. This controller is part of the CompactLogix 5370 L2 product category that comes with embedded features, enabling this controller to function out of the box. It has integrated power supply that is operated by nominal supply voltage of 24VDC which supplies the necessary backplane power to the integrated modules of the controller.

In addition, the 1769-L23E-QB1B has built-in 16 channels of 24VDC Discrete inputs and 16 channels of Discrete outputs as well. I/O expansion is allowed by installation of additional Three (3) 1769 Compact I/O modules to custom fit this controller to the application requirement. It is also provided with 512KB user memory which can accommodate up to any combination of 32 periodic or continuous with 100 programs per task.

For controller communication, the 1769-L23E-QB1B feature a single Ethernet port and a USB interface. Both ports support high speed communication, with ethernet supporting 10/100 Mbps transmission rate and an RS232 communication interface that supports DF1, DH485 and ASCII interface. These ports specifically support communication with Supervisory Control and Data Acquisition (SCADA), Human Machine Interface (HMI), and controllers within the same Ethernet and RS232 connections.

For Version 17.01.02, revision 17.012; 19.01.00 revision 19.015; For 20.01.00, revision 20.013.

It has an embedded 24 Volts DC power supply and a 1000 milliamps BUS current at 5 Volts DC. The 1769-L23E-QB1B controller has a request packet interval (RPI) speed of approximately 1.0 millisecond of scan time across 1 to 4 modules. It comes with an Allen-Bradley 1769-BA replaceable battery. At 24 Volts DC, the Allen-Bradley 1769-L23E-QB1B compact controller has a drawn current of 700 milliamps and it dissipates 7 Watts of power. Devices can be connected to the 1769-L23E-QB1B through the Allen-Bradley 1756-CP3 or 1747-CP3 serial cables. It operates at 10 to 30 Volts DC at 30 degrees Celsius (86 degrees Fahrenheit). Additional embedded features include an input impedance of 3 kiloohms, a maximum inrush current of 250 milliamps, an off-state voltage of 5 Volts DC maximum, and an off-state current of 1.5 milliamps. The 1769-L23E-QB1B compact controller also has embedded output features which are a 16-unit output, an output delay time of 0.1 milliseconds, and a maximum leakage current of 1.0 milliamps at 26.4 Volts DC. The current across each module of the 1769-L23E-QB1B controller is rated at 4.0 Amps at 60 degrees Celsius (140 degrees Fahrenheit). The 1769-L23E-QB1B controller has an approximate weight of 0.91 kilograms (2 pounds) and it can be mounted on a DIN rail or on a panel mounting base.
