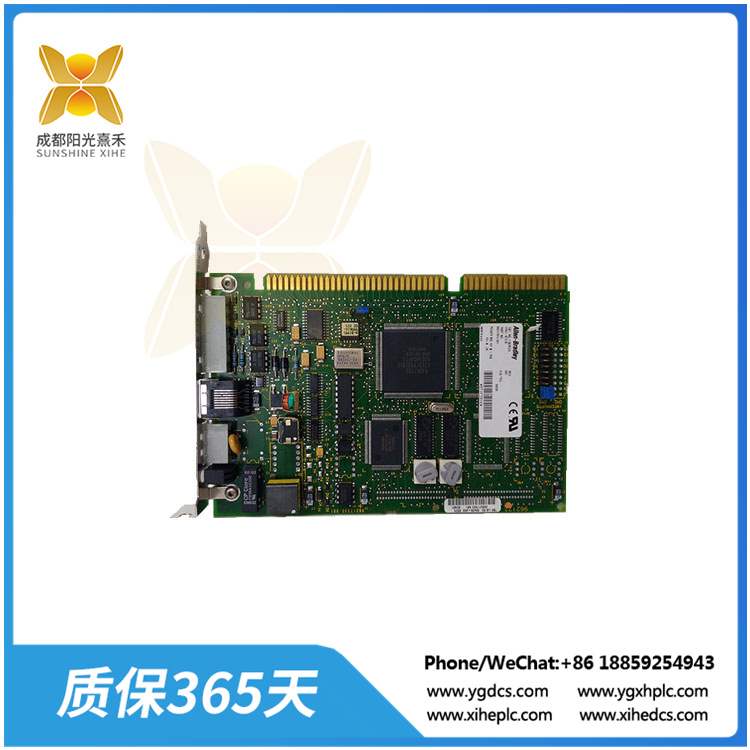

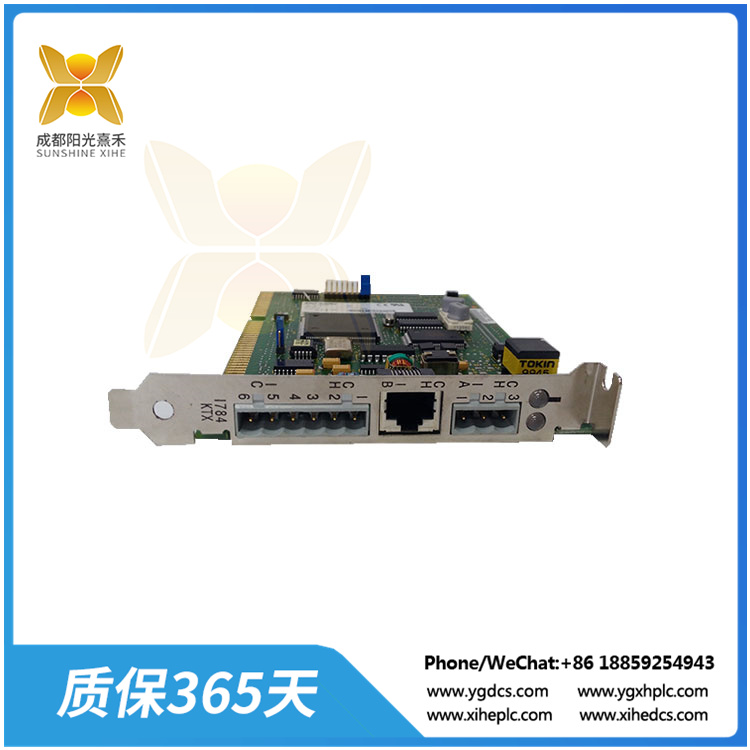

1784-KTX 半尺寸的通信卡

Description

1784-KTX 半尺寸的通信卡

描述:1784-KTX卡是一种半尺寸的通信卡，兼容16位ISA/EISA插槽。1784-KTX卡不能插入8位槽位。

Allen-Bradley NetLinx 1784-KTX卡是一种通信接口卡。制造商发货时应包含一张通信卡和一本用户手册。1784-KTX卡是可以安装在16位ISA或EISA插槽的半尺寸ISA卡。1784-KTX卡不能安装在8位扩展槽中。在1784-KTX卡上有一个通道。该卡还充当远程I/O扫描器。1784-KTX卡可以作为DH+或DH-485网络上的节点，它们可以直接连接到PLC-2/PLC-3控制器。1784-KTX卡的工作温度范围是从32到140华氏度。

在储存或运输时，环境温度范围应保持在-40至185华氏度之间。卡周围的非冷凝相对湿度应在5% ~ 95%之间。1784-KTX卡的振动等级为10至60赫兹，位移为0.012英寸。在安装卡之前，必须配置卡的中断设置和基本内存地址。1784-KTX卡基于CMOS技术，因此对静电放电(ESD)非常敏感。标准的防静电注意事项包括接触接地物接地、使用接地腕带、避免接触连接器和元器件。卡在不使用时、运输过程中以及返修时也应保存在防静电容器中。

1784-KTX

1784-KTX 半尺寸的通信卡

Description: The 1784-KTX card is a half-sized communication card which is compatible with the 16-bit ISA/EISA slots. The 1784-KTX card can not be inserted into 8-bit slots.

The Allen-Bradley NetLinx 1784-KTX card is a communication interface card. The shipment from the manufacturer should contain one communication card and one user manual. The 1784-KTX card is a half-sized ISA card which can be installed in a 16-bit ISA or EISA slot. The 1784-KTX card must never be installed in an 8-bit expansion slot. There is one channel on the 1784-KTX card. The card also acts as a remote I/O scanner. The 1784-KTX card can act as a node on the DH+ or DH-485 networks and they can connect directly to PLC-2/PLC-3 controllers. The operating temperature range for the 1784-KTX card is from 32 to 140 degrees Fahrenheit.

When in storage or when in transport, the ambient temperature range should be kept between -40 and 185 degrees Fahrenheit. The non-condensing relative humidity around the card should be between 5 and 95%. The vibration rating for the 1784-KTX card is 10 to 60 Hertz with 0.012 inches displacement. Before installing the card, the interrupt setting and base memory address of the card must be configured. The 1784-KTX card is based on CMOS technology and it is therefore sensitive to electrostatic discharge (ESD). Standard ESD precautions including grounding by touching a grounded object, the use of a grounded wrist strap, and avoiding touching connectors and components should be followed while working with the card. The card should also be kept in a static-shielded container when not in use and during transportation and when it is being returned for repair.
