20-HIM-A6 PowerFlex 架构 HIM 级

Description

20-HIM-A6 PowerFlex 架构 HIM 级

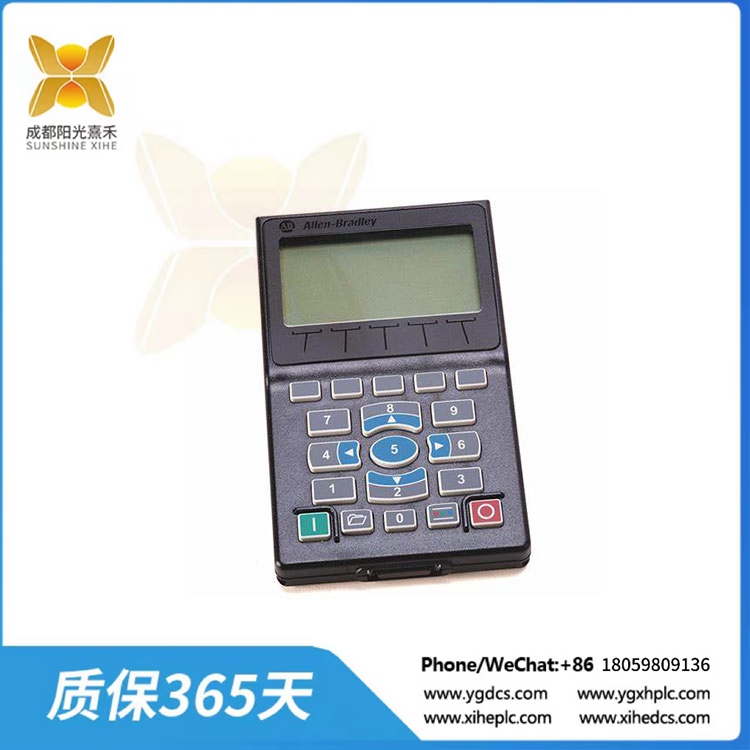

艾伦-布拉德利20-HIM-A6是一个人机界面模块(HIM)。这是NEMA 1型HIM,与Allen-Bradley PowerFlex 7级驱动器一起使用。 该组件有一个完整的数字键盘和动态软键，用于改进和有效地与主机驱动器交互。该组件支持欧洲、英语和亚洲语言,特别是英语、葡萄牙语、法语、意大利语、德语、西班牙语和荷兰语。

20-HIM-A专[门]兼容使用PowerFlex 753驱动器、PowerFlex 755驱动器、PowerFlex 755TL驱动器、PowerFlex 755TR驱动器、PowerFlex 755TM通用总线逆变器、PowerFlex 755TM总线电源、具有标准或增强控制的PowerFlex 70驱动器、具有标准或矢量控制的PowerFlex 700驱动器、PowerFlex 700H驱动器、具有第一或第二 阶段控制的PowerFlex 700S驱动器、具有700矢量控制或700S控制的PowerFlex 700L驱动器20-HIM-A6安装在驱动器前面板上主机驱动器提供的挡板上。它连接到驱动器端口1,以将HIM完全集成到主机驱动器。此外，20-HIM-A6也可以插入位于主机驱动器底部的驱动器端口2。这可以通过PowerFlex 750和PowerFlex 7类驱动器来实现。

20-HIM-A6支持驱动外设接口(DPI)协议，传输速度为125 Kbps或500 Kbps。它在12V DC下的功耗为140 mA,由主机驱动提供。

20-HIM-A6接口采用全数字键盘，具有完全集成的导航功能，可轻松配置和监控变频器以及连接的外围设备。20-HIM-A6接口具有更好的键盘触摸响应和改进的触觉响应，可高效无误地输入数据。20-HIM-A6界面 旨在为用户提供更直观的访问，新的菜单结构提高了设备的运行效率。20- HIM-A6接口具有动态软键，可根据屏幕上的数据更改驱动器的功能或名称。它采用可定制的驱动监控,在过程屏幕上显示为列表。20-HIM-A6接口具有新的闪烁LCD屏幕，在出现故障或检测到警报时提供增强的可视性。20-HIM-A6接口安装在驱动器正面的挡板或驱动器端口1中。为了支持手持操作, 20-HIM-A6接口安装在驱动器控制盒底部附近的驱动器端口2中。

20-HIM-A6

20-HIM-A6 PowerFlex 架构 HIM 级

The Allen-Bradley 20-HIM-A6 is a human Machine interface module (HIM). This is the NEMA Type 1 HIM, which is used with Allen-Bradley PowerFlex Level 7 drives. The component has a full numeric keypad and dynamic soft keys for improved and efficient interaction with the host drive. The component supports European, English, and Asian languages, especially English, Portuguese, French, Italian, German, Spanish, and Dutch.

20-HIM-A Pro is compatible with PowerFlex 753 drives, PowerFlex 755 drives, PowerFlex 755TL drives, PowerFlex 755TR drives, PowerFlex 755TM Universal Bus inverters, PowerFlex 755TM bus power supply, PowerFlex 70 drive with standard or enhanced control, PowerFlex 700 drive with standard or vector control, PowerFlex 700H drive, PowerFlex with first or second stage control The 700S drive, PowerFlex 700L drive 20-HIM-A6 with 700 vector control or 700S control is mounted on the baffle provided by the host drive on the front panel of the drive. It connects to drive port 1 to fully integrate HIM into the host drive. In addition, the 20-HIM-A6 can also be plugged into the drive port 2 located at the bottom of the host drive. This can be done with PowerFlex 750 and PowerFlex Class 7 drives.

The 20-HIM-A6 supports the Driver Peripheral Interface (DPI) protocol with transmission speeds of 125 Kbps or 500 Kbps. It has a power consumption of 140 mA at 12V DC and is provided by the host drive.

The 20-HIM-A6 interface features a full numeric keypad with fully integrated navigation, making it easy to configure and monitor frequency converters and connected peripherals. The 20-HIM-A6 interface features better keyboard touch response and improved haptic response for efficient and error-free data entry. The 20-HIM-A6 interface is designed to provide users with more intuitive access, and the new menu structure improves the efficiency of the device’s operation. The 20-HIM-A6 interface has dynamic soft keys to change the function or name of the drive based on the data on the screen. It uses customizable driver monitoring, which is displayed as a list on the process screen. The 20-HIM-A6 interface features a new blinking LCD screen that provides enhanced visibility when a fault occurs or an alarm is detected. The 20-HIM-A6 interface is installed in the baffle or drive port 1 on the front of the drive. To support handheld operation, the 20-HIM-A6 interface is installed in drive port 2 near the bottom of the drive control box.
