2097-V34PR6 Kinetix 300伺服驱动器

Description

2097-V34PR6 Kinetix 300伺服驱动器

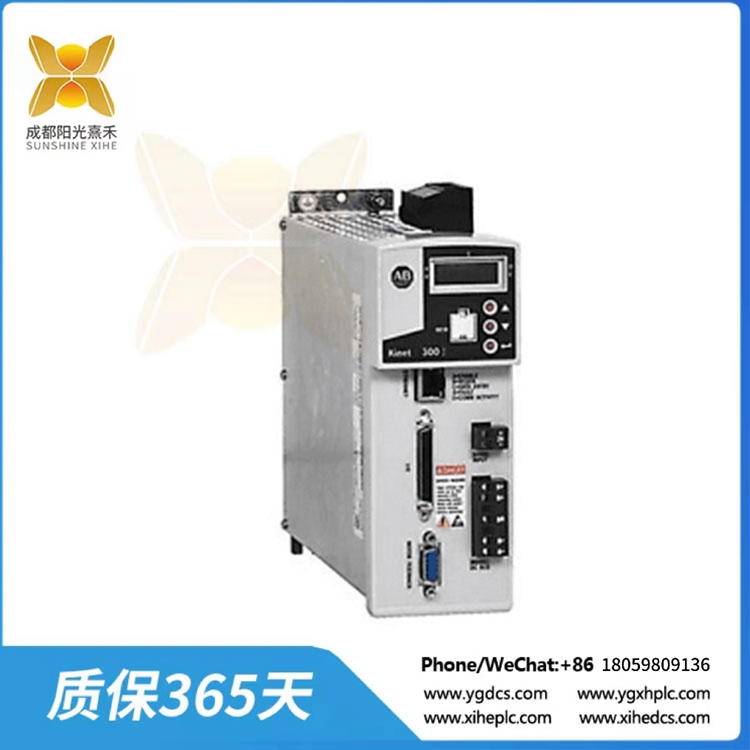

Allen-Bradley 2097-V34PR6是一款伺服驱动器，属于Kinetix 300系列以太网I/P索引伺服驱动器。该驱动器用于通过以太网I/P网络实现运动控制，并支持与可编程逻辑控制器(PLC)(如MicroLogix 1400控制器)和基于Logix的控制器(包括CompactLogix和ControlLogix控制器)无缝集成。这款Kinetix伺服驱动器兼容的线性和旋转驱动器和执行器包括Kinetix MP和TLY旋转电机，Kinetix MPAI重型电动气缸，Kinetix MPAR电动气缸，ldat系列线性推力器，ldc系列™线性电机，ldl系列™线性电机和Kinetix MPAS集成线性级。

2097-V34PR6的交流输入电压要求为三相，有效值为320-528V，三相，标称电源电压为480V。它还具有安全的扭矩关闭功能。该驱动器的输出能力包括8.5 A和3.0 kW的输出电流和功率。

与CompactLogix控制器，艾伦-布拉德利的集成架构系统可以使用。

2097-V34PR6 Kinetix分度伺服驱动器支持安装I/O终端扩展块，该扩展块连接到驱动器的嵌入式50引脚IOD连接器，用于自动驱动器更换的内存模块，用于消除电源线路中的噪声的线路滤波器分流电阻和编码器模块。

对于UL应用，该驱动器必须安装适当的线路保护装置，如Busmann保险丝，目录编号为ktd – r -10 (10A)，微型断路器1489-M3C100和自保护CMC电机保护CB，目录编号为140M-C2E-C10。

2097-V34PR6采用480V交流CC级和T级限流母线熔断器，并使用480V (140M-F8E-C20)全额定断路器和480V DC/AC线圈接触器提供短路保护。驱动器有一个50针的I/O (IOD)连接器，用于安装I/O扩展终端块，它需要一个EEPROM模块来备份驱动器的配置。运行时，它的最大功耗为99W(耗散)，最佳运行温度范围为0-40摄氏度(32-104华氏度)，非冷凝相对湿度约为5-95%。2097-V34PR6设计用于在高达1500米的高度安装而不降级，它可以在15G的操作冲击和2.5G的5-200Hz振动下保持最佳功能。2097-V34PR6重约1.8克(4磅)，尺寸为238毫米× 68毫米× 230毫米。

2097-V34PR6

2097-V34PR6 Kinetix 300伺服驱动器

The Allen-Bradley 2097-V34PR6 is a Servo Drive that belongs to the Kinetix 300 family of Ethernet I/P Indexing Servo Drives. This drive is used to implement motion control over Ethernet I/P network and supports seamless integration with Programmable Logic Controllers (PLC) such as MicroLogix 1400 controllers and Logix based controllers including CompactLogix and ControlLogix controllers. Compatible linear and rotary drive and actuators for this Kinetix Servo drive include Kinetix MP and TLY Rotary Motors, Kinetix MPAI Heavy-duty Electric Cylinders, Kinetix MPAR Electric Cylinders, LDAT-Series Linear Thrusters , LDC-Series™ Linear Motors , LDL-Series™ Linear Motors and Kinetix MPAS Integrated Linear Stages.

The 2097-V34PR6 has an AC input voltage requirement of 3-Phase, 320-528V rms, 3-phase with 480V nominal supply voltage. It is also built with safe Torque-Off functionality. The drive’s putput capabilities include an output current and power of 8.5 A and 3.0 kW respectively.

With CompactLogix controllers, Allen-Bradley’s Integrated Architecture System may be used.

The 2097-V34PR6 Kinetix Indexing Servo Drive supports installation of I/O Terminal Expansion Block that attached to the drive’s embedded 50-pin IOD connector, Memory module for automatic drive replacement, Line filters for eliminating noise in the supply line Shunt resistor and encoder module.

For UL applications, this drive must be installed with appropriate line protection devices such as with Busmann fuse with catalog number KTK-R-10 (10A), miniature circuit breaker of 1489-M3C100 and Self-protected CMC Motor Protection CB with catalog number of 140M-C2E-C10.

The 2097-V34PR6 is fused with a 480V AC Class CC and Class T Current-Limiting Bussman fuse and provides short-circuit protection using the 480V (140M-F8E-C20) fully-rated circuit breaker, and the 480V DC/AC coil contactor. The drive has a 50-pin I/O (IOD) connector for the installation of an I/O expansion terminal block and it requires an EEPROM module for the backup of the drive’s configurations. When operational, it has a maximum power loss of 99W (dissipation) and is built to operate optimally at a temperature range of 0-40 deg. Celsius (32-104 Deg. Fahrenheit) at around 5-95% non-condensing relative humidity. The 2097-V34PR6 is designed for installation at an altitude of up to 1500m without de-rating and it can maintain optimal function with an operational shock of 15G and a vibration of 2.5G at 5-200Hz. The 2097-V34PR6 weighs approximately 1.8g (4lb) and has dimensions of 238mm by 68mm by 230mm.
