2098-DSD-010X Ultra 3000 1kW伺服驱动器

Description

2098-DSD-010X Ultra 3000 1kW伺服驱动器

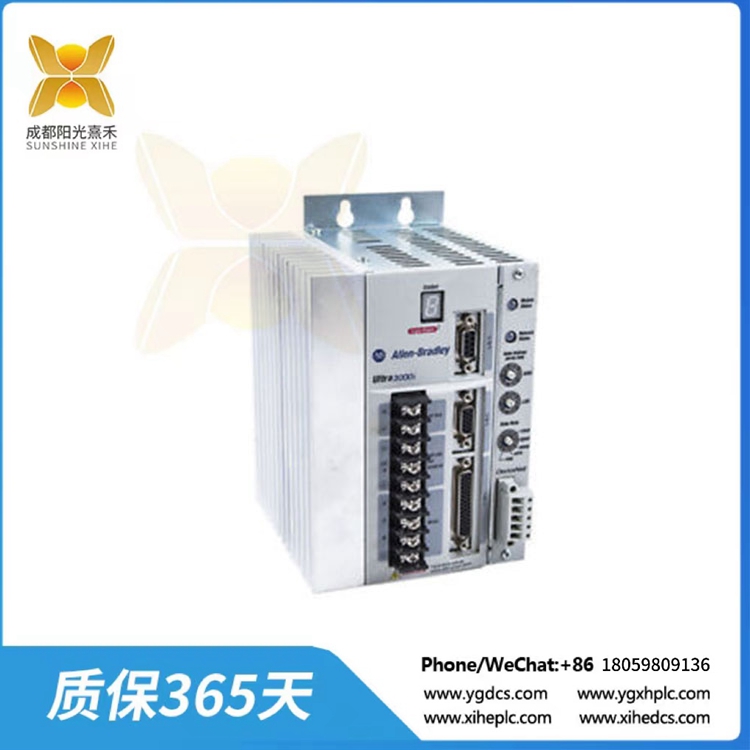

Allen-Bradley 2098-DSD-010X-DN是一款Ultra 3000数字伺服驱动模块(带有DeviceNet和索引)。该模块是用于控制大多数工业伺服电机的单相交流驱动器。2098-DSD-010X-DN重2.1Kg(4.6磅)。该模块的总体积为98.1 mm × 32.77 mm × 65.02 mm。模块的工作温度为0 ~ 55℃(32 ~ 131°F)。该模块的存储温度为-40-70°C(-40-158°F)。本模块相对湿度≤5% ~ 95%，无凝露。2098-DSD-010X-DN的工作冲击为15 g(3个脉冲，11 ms)。该模块的非工作冲击为30g(3次脉冲，11ms)。该模块旨在在2.5 g振动下保持最佳功能。它可以在高达1000米(3280英尺)的高度运行而不降额。但是，每增加300米(984英尺)到3000米(9842英尺)，必须声明连续电流值为3%。

2098-DSD-010X-DN有8个有源数字输入。该模块还具有光隔离浸入式电流流，具有4个输出电流源，继电器输出为30V DC(最大)和1A(最大)常开继电器。Allen-Bradley 2098-DSD-010X-DN的输入额定值为9A (100 A电流浪涌)和100- 240v交流(单相)，频率为47-63Hz。该模块的输出额定值为15A(间歇)。该模块在230V交流时的最大输出功率为1kw，最大能量吸收能力为51焦耳，BUS电容为1880μF(电容)。本模块母线过压为400V DC。

2098-DSD-010X

2098-DSD-010X Ultra 3000 1kW伺服驱动器

The Allen-Bradley 2098-DSD-010X-DN is an Ultra 3000 Digital Servo Drive Module (with DeviceNet and Indexing). This module is a single-phase AC drive used for control of most industrial servo motors. The 2098-DSD-010X-DN weighs 2.1Kg (4.6 lbs). This module has a total volume of 98.1 mm x 32.77 mm x 65.02 mm. The operating temperature of this module is 0-55 °C (32-131 °F). The storage temperature of this module is -40-70 °C (-40-158 °F). The relative humidity of this module is from 5-95% without condensation. The 2098-DSD-010X-DN has an operating shock of 15 g (3 pulses, 11 ms). The nonoperating shock of this module is 30 g (3 pulses, 11 ms). This module is designed to maintain optimum functionality at 2.5 g vibration. It can operate at altitudes of up to 1000 m (3280 ft) without derating. However, continuous current values must be declared at 3% for each additional 300 m (984 ft) to 3000 m (9842 ft).

The 2098-DSD-010X-DN has 8 active digital inputs. This module also has an optically-isolated immersed current stream with 4 output current sources with a relay output of 30V DC (max) and 1A (max) Normally-Open relay. The Allen-Bradley 2098-DSD-010X-DN has an input rating of 9A (with 100 A current surge) and 100-240V AC (single phase) at 47-63Hz. This module has an output rating of 15A (intermittent). This module has a maximum output power of 1 kW at 230V AC with 51 Joules maximum energy absorption capability and a BUS capacitance of 1880μF (capacitance). The Bus overvoltage of this module is 400V DC.
