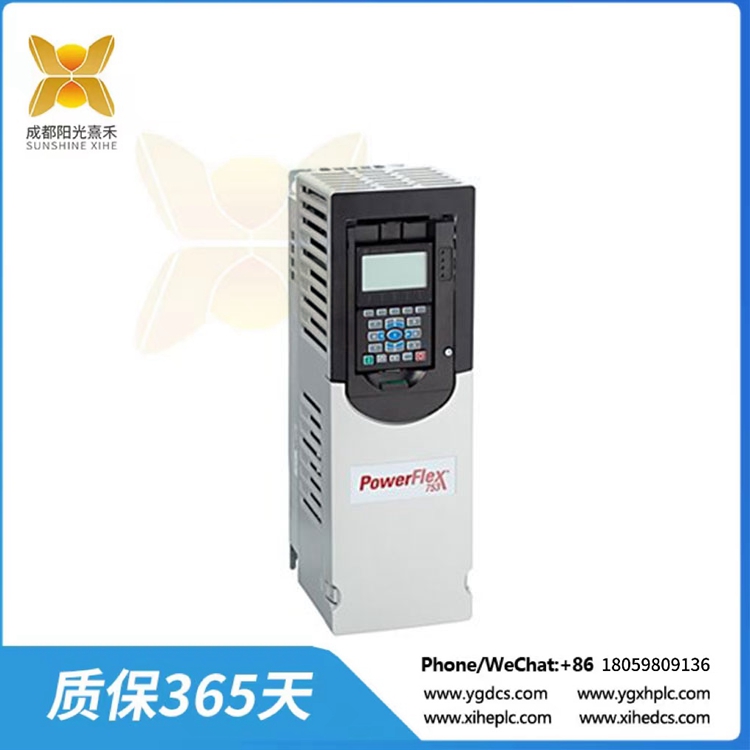

20F1ANC367JAONNNNN 带预充电的交流输入，无直流端子

Description

20F1ANC367JAONNNNN 带预充电的交流输入，无直流端子

753交流驱动，风冷，开式，400V交流3 PH, 367安，200kW ND, 160kW HD，交流In Prchg Prchg无直流项，框架7，滤波CM跳线安装，DB晶体管，空白(无HIM)，纸箱和文件。

艾伦-布拉德利20F1ANC367JAONNNNN驱动器是艾伦-布拉德利/罗克韦尔自动化公司的变频驱动器。该驱动器属于Allen-Bradley的PowerFlex 753系列交流驱动器。该驱动器的额定电流为265安培。在正常负载条件下，驱动器的额定电压为交流400伏和直流540伏。该驱动器的帧大小从6到8或从2到7。框架尺寸6至8的外壳带有内置预充电的交流输入端子，但没有直流端子。框架尺寸2至7的外壳带有IP 20/IP 00额定NEMA UL开放式外壳。IP等级表示该驱动器不防水。20F1ANC367JAONNNNN驱动器的额定输出功率为300马力。驱动器安装了跳线作为默认的CM帽连接。在这个驱动器变体中既没有内部电阻也没有内部晶体管。

20F1ANC367JAONNNNN驱动器配备了嵌入式输入/输出模块。该驱动器有一个微处理器控制的散热器热敏电阻，当它检测到驱动器内部温度过高时，就会发出警报并跳闸。驱动器是风冷的，在最近的通风源和驱动器的散热器之间不应存在障碍物。足够的垂直间隙应该存在周围的驱动器安装现场。20F1ANC367JAONNNNN驱动器是一个三相器件，配备CM跳线。在此驱动器变体中不存在人机接口模块。对于转矩调节，驱动器配备了伏特每赫兹控制，力技术矢量控制和无传感器矢量控制算法。这三种算法都有助于驱动器满足不同的应用需求。

20F1ANC367JAONNNNN

20F1ANC367JAONNNNN 带预充电的交流输入，无直流端子

753 AC Drive, Air Cooled, Open Type, 400V AC 3 PH, 367 Amps, 200kW ND, 160kW HD, AC In Prchg Prchg No DC Term, Frame 7, Filtered CM Jumper Installed, DB Transistor, Blank (No HIM), Carton and Documents.

The Allen-Bradley 20F1ANC367JAONNNNN drive is a variable frequency drive from Allen-Bradley/Rockwell Automation. The drive belongs to the PowerFlex 753 series of AC drives from Allen-Bradley. The drive has a current rating of 265 Amps. The voltage rating of the drive is 400 Volts AC and 540 Volts DC under normal loading conditions. The drive is available in frame sizes from 6 to 8 or from 2 to 7. The enclosure for the frame sizes 6 to 8 comes with an AC input terminal with built-in precharge but it has no DC terminals. The enclosure for the frame sizes 2 to 7 comes with an IP 20/IP 00 rated NEMA UL open enclosure. The IP rating indicates that the drive is not waterproof. The 20F1ANC367JAONNNNN drive has a 300 Horsepower output rating. The drive is installed with a jumper as the default CM cap connection. Neither an internal resistor or an internal transistor is present in this drive variant.

The 20F1ANC367JAONNNNN drive is equipped with an embedded input/output module. The drive has a microprocessor-controlled heatsink thermistor which alerts and trips the drive whenever it detects over-temperature inside the drive. The drive is air-cooled and no obstruction should present between the nearest ventilation source and the heatsink of the drive. Enough vertical clearance should be present all around the drive on the installation site. The 20F1ANC367JAONNNNN drive is a 3-phase device and it is equipped with a CM jumper. No human-machine interface module is present in this drive variant. For torque regulation, the drive is equipped with Volts per Hertz control, vector control with Force technology, and the Sensorless vector control algorithm. All of these 3 algorithms help the drive to meet different application demands.
