2711P-T12C4D9 PanelView™ Plus 7 图形终端

Description

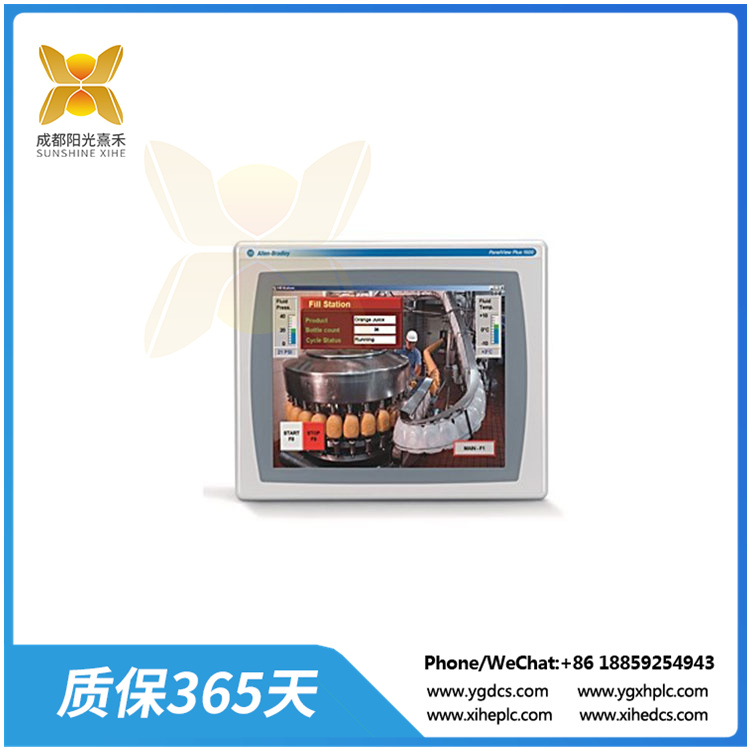

2711P-T12C4D9    PanelView™ Plus 7 图形终端

2711P-T12C4D9     PanelView™ Plus 7 图形终端

The 2711P-T12C4D9 PanelView™ Plus 7 graphics terminal is available in standard and high performance versions. Our high performance versions are available with shape coating, stainless steel and on-machine (ArmorView™ Plus 7) options, providing the flexibility to meet your specific needs. You can build your applications with FactoryTalk® View Machine Edition to help simplify configuration and enhance Integrated Architecture® solutions. These terminals include an Ethernet connection, which allows you to monitor your application from a remote location through a VNC connection with FactoryTalk ViewPoint.

PanelView Plus 7 Standard

Includes Windows CE 6.0 standard features and color TFT LCD, 18-bit color graphics
Widescreen display sizes ranging from 4 to 15 in. With keyboard options are available
Monitor applications from remote locations with VNC connections and FactoryTalk viewpoints
Quickly copy and restore the operator interface using an SD card or USB flash drive
Includes email and SMS notifications
Includes 512 MB of memory and 512 MB of non-volatile memory (approximately 80 MB of available user memory)
When paired with FactoryTalk Machine Edition software connected to a controller, it provides 100 screens and 500 alerts
Ethernet 1 x RJ45 10/100 MB Auto-MDI/MDI-X with IEEE 1588 support
Has a separate or device-level ring Ethernet port for network connectivity
Includes options for both Allen‑Bradley® branded and non-branded terminals
PanelView Plus 7 Performance

Includes Windows 10 IoT Core (LTSC) operating system with color TFT LCD, 18-bit color graphics
Widescreen display sizes ranging from 7 to 19 in. With keyboard options are available
Includes video playback support, which provides advanced user help features
Monitor applications from remote locations with VNC connections and FactoryTalk viewpoints
Quickly copy and restore the operator interface using an SD card or USB flash drive
Includes email and SMS notifications
Includes 4GB of memory and 20GB of non-volatile memory (approximately 2GB of available user memory)
Features two Ethernet ports that support device-level ring, line, or star network topologies
Includes options for both Allen‑Bradley branded and non-branded terminals
