2711P-T6C5A Panelview Plus 600系列操作员接口终端

Description

2711P-T6C5A Panelview Plus 600系列操作员接口终端

描述:Allen-Bradley 2711P-T6C5A终端是Panelview Plus 600系列操作员接口终端，可以控制工业机器系统和各种应用。它的控制方式是一个触摸屏，可以用手或用认可的触控笔激活。2711P-T6C5A操作界面终端的触摸屏也可以支持全彩图形，宽度为6英寸。在这个终端上没有物理密钥。2711P-T6C5A操作员接口终端使用120伏交流额定电源。

Allen-Bradley 2711P-T6C5A终端是来自PanelView Plus 6系列工业终端的操作员终端。2711P-T6C5A端子上的触摸式彩色显示器用于操作员输入。终端上的触摸技术是模拟电阻(4线)。触摸屏的评分为100万。5.5英寸彩色显示器采用彩色有源矩阵TFT技术，显示面积为4.5 × 3.4英寸，分辨率为320 × 240，支持18位彩色图形，亮度为440尼特。显示屏上的背光为白光LED，额定工作寿命25000小时，不可更换。关键数据的时间戳由机载实时时钟提供。实时系统时钟的备用电源来自集成电池，工作寿命为4年。

该终端还包括256 MB的RAM。系统上的非易失性内存为512 MB，其中大约73 MB可用于用户数据。如果需要额外的外部存储，也支持USB闪存驱动器和SD卡。2711P-T6C5A终端的通信接口包括RS-232和USB接口(1个USB主机和1个设备端口)。2711P-T6C5A端子工作在交流电源上。支持输入电压范围为交流100 ~ 240v，端子典型功耗20va，最大功耗35va, 2711P-T6C5A端子重量约0.594 kg。2711P-T6C5A端子尺寸为6.5 × 10.4 × 3.8英寸。

2711P-T6C5A

2711P-T6C5A Panelview Plus 600系列操作员接口终端

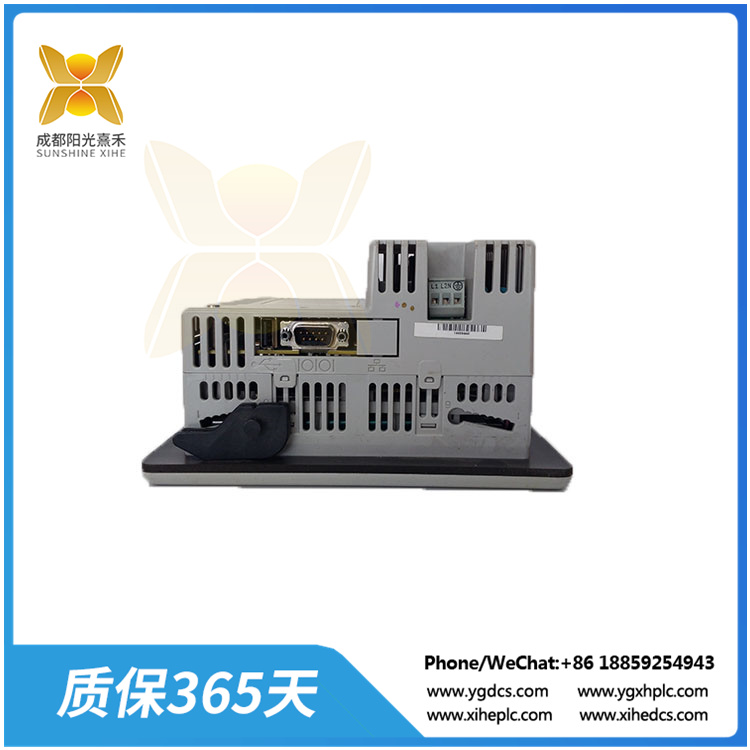

Description: The Allen-Bradley 2711P-T6C5A terminal is a Panelview Plus 600 series operator interface terminal that can control industrial machine systems and a wide variety of applications. Its control method is a touchscreen that can be activated by hand or with an approved stylus. The 2711P-T6C5A operator interface terminal’s touchscreen can also support full color graphics and it is 6 inches wide. There are no physical keys on this terminal. The 2711P-T6C5A operator interface terminal operates with a 120 Volts AC rated power supply.

The Allen-Bradley 2711P-T6C5A terminal is an operator terminal from the PanelView Plus 6 family of industrial terminals. A touch-enabled color display on the 2711P-T6C5A terminal is used for operator input. The touch technology on the terminal is analog-resistive (4-wire). The touchscreen has a rating of 1 million presses. The technology of the 5.5-inch color display is color active-matrix TFT technology and it has 4.5 x 3.4 inches display area, a 320 x 240 resolution, support for 18-bit color graphics, and 440 Nits of brightness. The backlight on the display is a white LED with a rated working life of 25,000 hours and it is non-replaceable. Timestamps for critical data are provided by an onboard real-time clock. The power backup for the real-time system clock comes from an integrated battery which has a working life of 4 years.

The terminal also includes 256 MB of RAM. The nonvolatile memory on the system is 512 MB, out of which approximately 73 MB is available for user data. USB flash drives and SD cards are also supported if additional external storage is required. Communication interfaces available on the 2711P-T6C5A terminal include the RS-232 and USB interfaces (1 USB host and 1 device port). The 2711P-T6C5A terminal works on AC power. The supported range of input voltage is from 100 to 240 Volts AC. The terminal consumes 20 VA typically and the maximum power consumption can reach 35 VA. The weight of the 2711P-T6C5A terminal is approximately 0.594 kilograms. The dimensions of the 2711P-T6C5A terminal are 6.5 x 10.4 x 3.8 inches.
