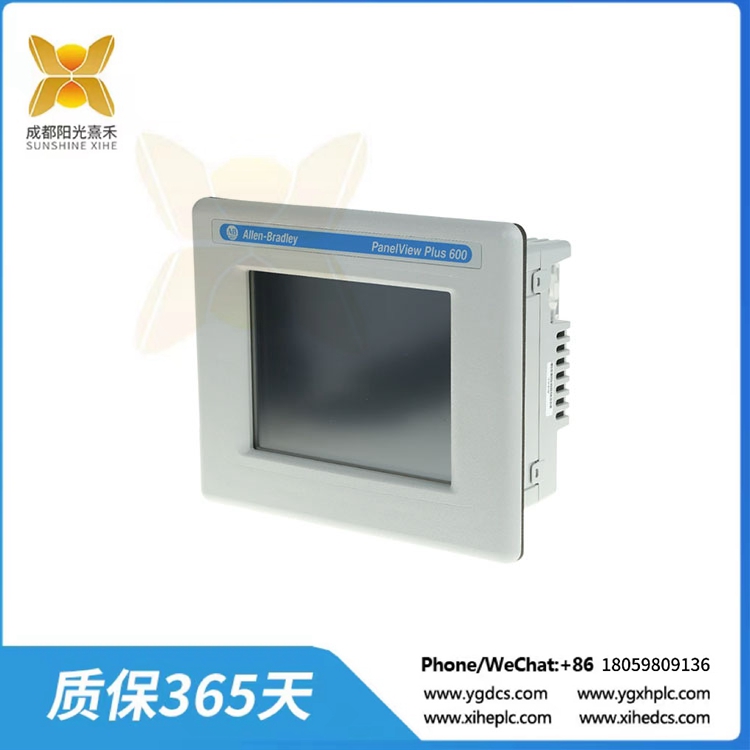

2711P-T6C5D PanelView Plus终端

Description

2711P-T6C5D PanelView Plus终端

由Allen-Bradley制造的2711P-T6C5D终端是PanelView 600控制终端和人机界面。人机界面提供5.5英寸的彩色显示屏。2711P-T6C5D终端还带有RS-232通信端口，并具有支持简化连接到外部设备的USB端口。2711P-T6C5D端子具有24伏直流额定电源，即使在电源中断的情况下也能保持运行。2711P-T6C5D终端支持一个附加的通信模块，该模块具有与基本配置单元的网络接口，以增加与各种网络的通信能力。通过2711P-T6C5D端子的背面可以方便地连接通信模块。对于数据输入，该装置具有一个易于使用的触摸屏键盘。2711P-T6C5D PanelView 600终端支持模拟电阻式触摸屏，可通过手指或触控笔操作。使用触控笔设备有助于保护触摸屏免受划伤或尖锐物体的伤害，以免损坏屏幕。2711P-T6C5D终端具有数字键盘，功能键编号从0到9，并具有箭头键，便于在屏幕上导航。2711P-T6C5D端子工作环境温度范围为0℃~ 55℃，以获得最佳性能。存储过程中，环境温度范围为-25℃~ 70℃。2711P-T6C5D端子的散热为85 BTU / h。相对湿度:5% ~ 95%，无冷凝。

2711P-T6C5D

2711P-T6C5D PanelView Plus终端

Manufactured by Allen-Bradley, the 2711P-T6C5D terminal is a PanelView 600 Control terminal and human-machine interface. The human-machine interface provides a color display featuring a display screen of 5.5 inches. The 2711P-T6C5D terminal also comes with the RS-232 communication port and it features the USB ports that support simplified connectivity to external devices. The 2711P-T6C5D terminal comes with a power supply rating of 24 Volts DC, allowing the unit to keep running even in the case of power disruption. The 2711P-T6C5D terminal supports an attached communication module with the network interface to the base configured unit for increased communication capability with various networks. Communication modules can be attached easily through the back of the 2711P-T6C5D terminal. For data entry, the unit features a keypad with an easy-to-use touchscreen. The 2711P-T6C5D PanelView 600 terminal supports an analog resistive touchscreen that may be operated by using a finger or a stylus. Using the stylus device helps in protecting the touchscreen from scratches or sharp objects that might also cause damage to the screen. The 2711P-T6C5D terminal features the numeric keypad with function keys numbered from 0 to 9, and with arrow keys for easy navigation on the screen. For optimal performance, ensure that the 2711P-T6C5D terminal is operated within an ambient operating temperature range of 0 to 55 degrees Celsius. During storage, the ambient storage temperature range is -25 to 70 degrees Celsius. The 2711P-T6C5D terminal features a heat dissipation of 85 BTU per Hour. The relative humidity range is 5 to 95%, non-condensing.
