330005-22-00-00 机架系统

Description

330005-22-00-00 机架系统

330005-22-00-00 机架系统

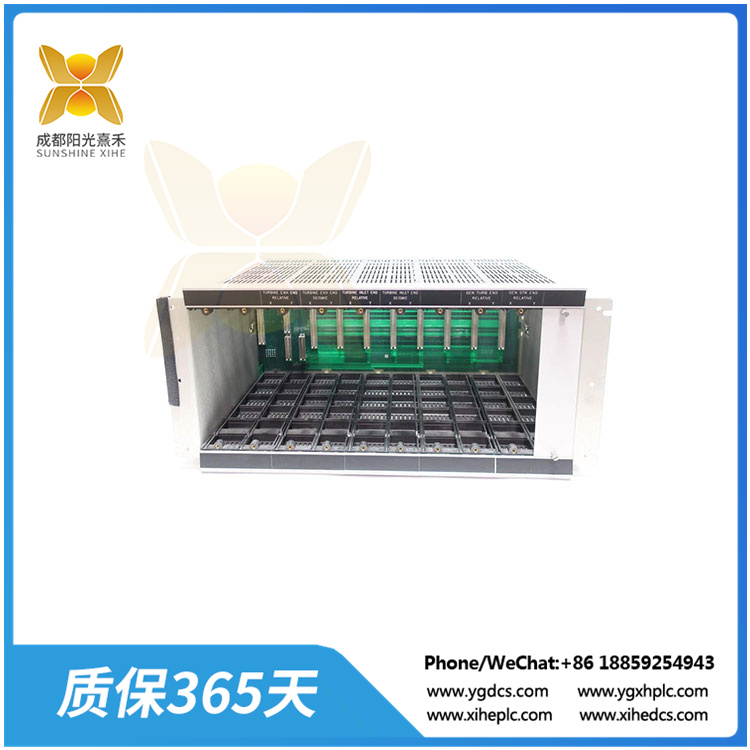

330005-22-00-00   Rack Features
Maximum flexibility includes economical expansion through physical rack growth. The 3300 rack comes in a variety of sizes. This allows you to order the exact size needed to fit the monitors for your specific application.

If this application only requires two monitors, you can order a four-position (4P) rack to accommodate a Power Supply, System Monitor, and the two monitors of your choice. However, if you need to add monitors in the future, the rack size can be increased in the field without soldering or using special tools by simply adding more rack sections and changing the backplane.

Racks come in seven panel-mount sizes ranging from four to fourteen positions. There is also a 19-inch EIA version of the 8P rack available. The Power Supply takes up the leftmost rack position (position 1).

The System Monitor takes up the next rack position (position 2). All other rack positions (3-14) can accommodate any combination of monitor types.

World of Controls has the most comprehensive catalog of Bently Nevada Replacement parts. Our professionals are standing by to help you with your needs. If you require any additional information, please contact WOC.
