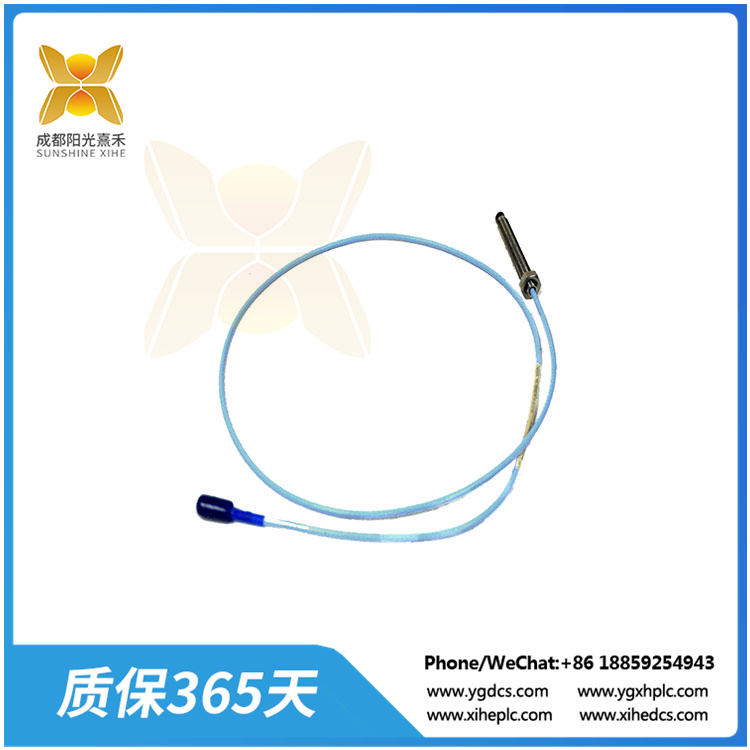

330101-00-32-10-02-05 Proximitor传感器

Description

330101-00-32-10-02-05    Proximitor传感器

330101-00-32-10-02-05    Proximitor传感器

The system provides an output voltage that is directly proportional to thedistance between the probe tip and the observed conductive surface and canmeasure both static (position) and dynamic (vibration) values. The system’sprimary applications are vibration and position measurements on fluid-filmbearing machines, as well as Keyphasor* reference and speed measurements3.

The 330101-00-32-10-02-05 8 mm system delivers the most advanced performance in our eddycurrent proximity transducer systems. The standard 330101-00-32-10-02-05 8 mm 5-metresystem also fully complies with the American Petroleum Institute’s (API) 670Standard (4th Edition) for mechanical configuration, linear range, accuracy, andtemperature stability. All 3300 XL 8 mm proximity transducer systems providethis level of performance and support complete interchangeability of probes,extension cables, and Proximitor sensors, eliminating the need to match orbench calibrate individual components.

Each 3300 XL 8 mm Transducer System component is backward-compatible andinterchangeable4 with other non-XL 3300 series 5 mm and 8 mm transducersystem components5. This compatibility includes the 3300 5 mm probe, forapplications in which an 8 mm probe is too large for the available mountingspace6,7.

Proximitor Sensor
The 330101-00-32-10-02-05 Proximitor Sensor incorporates numerous improvements overprevious designs. Its physical packaging allows you to use it in high-density DINrail installations. You can also mount the sensor in a traditional panel mountconfiguration, where it shares an identical 4-hole mounting “footprint” with olderProximitor Sensor designs. The mounting base for either option provideselectrical isolation and eliminates the need for separate isolator plates. The 3300XL Proximitor Sensor is highly immune to radio frequency interference, allowingyou to install it in fiberglass housings without adverse effects from nearby radiofrequency signals. The 330101-00-32-10-02-05 Proximitor Sensor’s improved RFI/EMI immunitysatisfies European CE mark approvals without requiring special shielded conduitor metallic housings, resulting in lower installation costs and complexity.

The 330101-00-32-10-02-05’s SpringLoc terminal strips require no special installation tools andfacilitate faster, more robust field wiring connections by eliminating screw-typeclamping mechanisms that can loosen.
