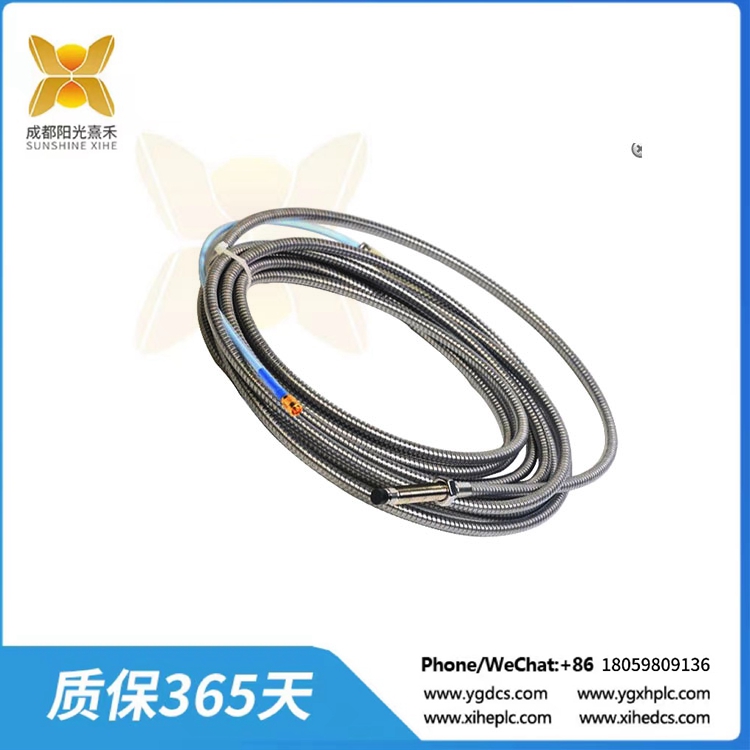

330102-20-55-10-02-RU 3300 XL NSv接近探头

Description

330102-20-55-10-02-RU 3300 XL NSv接近探头

特性
聚苯硫醚(PPS)探针尖端材料
AISI 304不锈钢(SST)探头外壳材料
-30至351°F(-34至177°C)的工作温度
氟橡胶o形环
3300 XL NSv接近传感器系统的一部分

本特利内华达330102-20-55-10-02-RU接近探头有不同的探头外壳配置，包括装甲和非装甲1/4- 28,3 /8 -24,M8 X 1和M10 X 1探头螺纹。反向安装3300 NSv探头标配3/8-24或M10 X 1螺纹。传感器系统的所有组件都有镀金黄铜ClickLoc连接器。3300 NSv探头设计用于密封探头尖端和外壳之间的压差。探头密封材料由一个Viton o形环组成。

系统的三个部分必须具有一致的电长度。近端探头的电长度加上延长线的电长度必须等于近端探头的电长度。

330102-20-55-10-02-RU换能器系统的主要用途是用于反孔，侧视或后视镜限制使用标准本利内达3300和3300 XL 5和8毫米换能器系统的区域。它也是小型目标应用的理想选择，例如测量小于51mm(2英寸)的轴上的径向振动或小于15mm(0.6英寸)的平面目标上的轴向位置。

330102-20-55-10-02-RU

330102-20-55-10-02-RU 3300 XL NSv接近探头

Features
Polyphenylene sulfide (PPS) probe tip material
AISI 304 stainless steel (SST) probe case material
-30 to 351°F (-34 to 177°C) operating temp
Viton O-ring
Part of 3300 XL NSv Proximity Transducer System

The Bently Nevada 330102-20-55-10-02-RU Proximity Probe comes in varying probe case configurations, including armored and unarmored 1/4-28, 3/8 -24, M8 X 1 and M10 X 1 probe threads. The reverse mount 3300 NSv probe comes standard with either 3/8-24 or M10 X 1 threads. All components of the transducer system have gold plated brass ClickLoc connectors. The 3300 NSv probes are designed to seal differential pressure between the probe tip and case. The probe sealing material consists of a Viton O-ring.

The three parts of the system must have consistent electrical lengths. The electrical length of the proximity probe plus the electrical length of the extension cable must equal the electrical length of the Proximitor.

The primary uses for the 330102-20-55-10-02-RU Transducer System are for areas where counter bore, sideview or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51mm (2in) or axial position on flat targets smaller than 15mm (0.6in).
