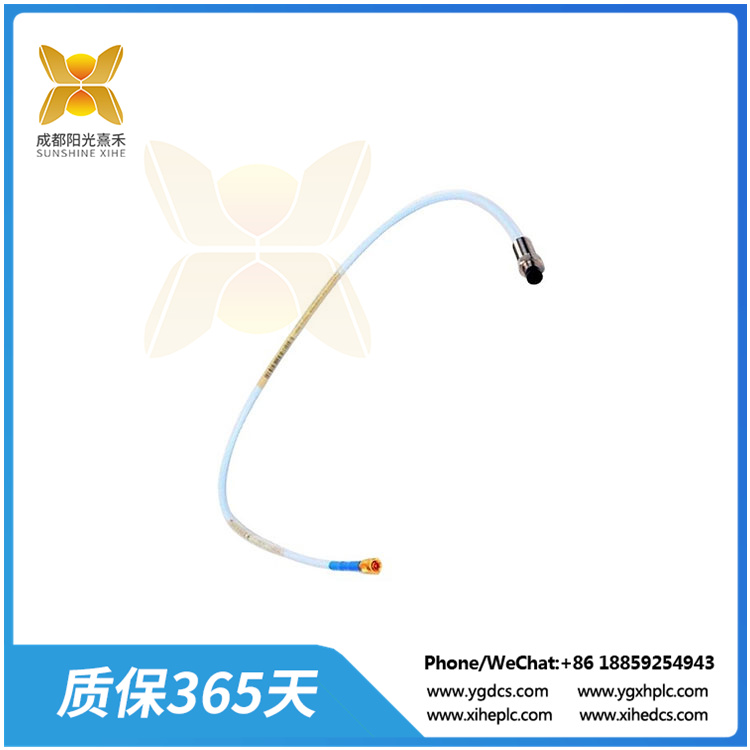

3301050-02-12-15-02-05 接近传感器系统

Description

3301050-02-12-15-02-05 接近传感器系统

3301050-02-12-15-02-05 接近传感器系统

1. 1-metre systems do not use an extension cable.

2. Proximitor sensors are supplied by default from thefactory calibrated to AISI 4140 steel. Calibration toother target materials is available upon request.

3. Consult Bently Nevada* Applications Note,Considerations when using Eddy Current ProximityProbes for Overspeed Protection Applications, whenconsidering this transducer system for tachometer oroverspeed measurements.

4. 3301050-02-12-15-02-05 8 mm components are both electrically andphysically interchangeable with non-XL 3300 5 mmand 8 mm components. Although the packaging ofthe 3300 XL Proximitor Sensor differs from itspredecessor, its design fits in the same 4-holemounting pattern when used with the 4-holemounting base, and will fit within the same mountingspace specifications (when minimum permissiblecable bend radius is observed).

5. Mixing XL and non-XL 3300-series 5 mm and 8 mmsystem components limits system performance to thespecifications for the non-XL 3300 5 mm and 8 mmTransducer System.

6. The 3300-series 5 mm probe (refer to Specificationsand Ordering Information p/n 141605-01) usessmaller physical packaging, but does not reduce theside view clearances or tip-to-tip spacingrequirements as compared to an 8 mm probe. It isused when physical (not electrical) constraintspreclude the use of an 8 mm probe. When yourapplication requires narrow side view probes, use the3300 NSv* Proximity Transducer System (refer toSpecifications and Ordering Information p/n 147385-01).

7. 8 mm probes provide a thicker encapsulation of theprobe coil in the molded PPS plastic probe tip. Thisresults in a more rugged probe. The larger diameterof the probe body also provides a stronger, morerobust case. We recommend that you use 8 mmprobes when possible to provide optimal robustnessagainst physical abuse.

8. Each 3301050-02-12-15-02-05 extension cable includes silicone tapethat you can use instead of connector protectors. Wedo not recommend silicone tape for applications thatwill expose the probe-to-extension cable connectionto turbine oil.
