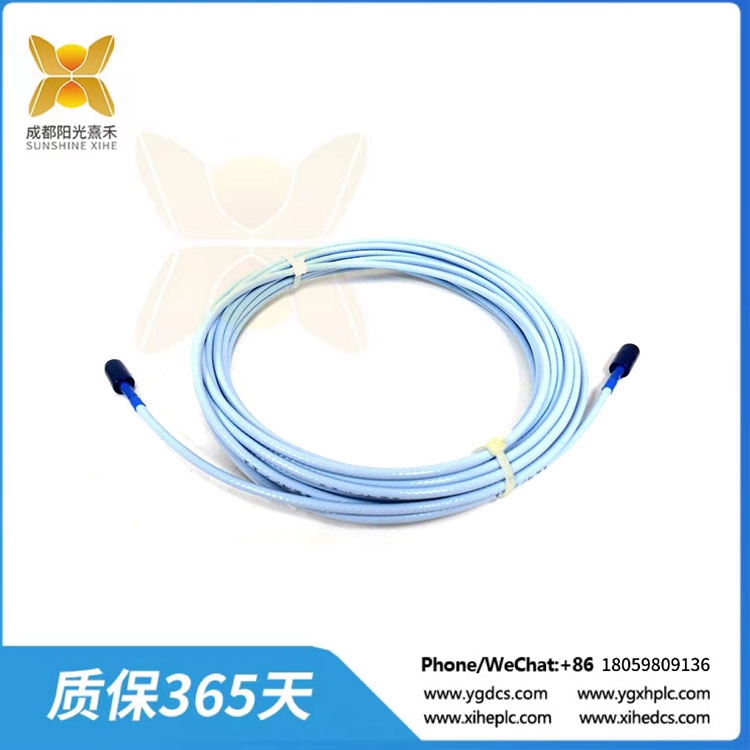

330130-080-02-05 3300 XL标准延长电缆

Description

330130-080-02-05 3300 XL标准延长电缆

特点:
理想的压缩系统，速度测量，和流体膜轴承机
扩展温度范围应用
单元和布线的完全互换性
向后兼容其他非3300 XL系列传感器系统组件
Bently Nevada 3300 XL 8mm接近传感器系统由一个3300 XL 8mm探头，一个3300 XL延长电缆和一个3300 XL Proximitor传感器组成。该系统提供的输出电压与探头尖端与观察到的导电表面之间的距离成正比，可以测量静态(位置)和动态(振动)值。该系统的主要应用是流体膜轴承机械的振动和位置测量，以及Keyphasor参考和速度测量。标准的3300 XL 8毫米5米系统在机械配置、线性范围、精度和温度稳定性方面也完全符合美国石油协会(API) 670标准(第4版)。所有3300 XL 8mm近距离传感器系统都提供这种级别的性能，并支持探头，延长电缆和Proximitor传感器的完全互换性，无需匹配或台架校准单个组件。

每个3300 XL 8毫米传感器系统组件向后兼容，可与其他非XL 3300系列5毫米和8毫米传感器系统组件互换。这种兼容性包括3300 5毫米探头，用于8毫米探头对可用安装空间太大的应用。

3300 XL Proximitor传感器部件编号细目(不包括在从Artisan出售时，除非指定)

330130-080-02-05

330130-080-02-05 3300 XL标准延长电缆

Features:
Ideal for Compression Systems, Speed Measurements, and Fluid-Film Bearing Machines
Extended Temperature Range Applications
Complete Interchangeability of Units and Cabling
Backwards Compatible with Other Non-3300 XL Series Transducer System Components
The Bently Nevada 3300 XL 8mm Proximity Transducer System consists of one 3300 XL 8mm probe, one 3300 XL extension cable, and one 3300 XL Proximitor Sensor. The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard (4th Edition) for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.

Each 3300 XL 8 mm Transducer System component is backward-compatible and interchangeable with other non-XL 3300 series 5 mm and 8 mm transducer system components. This compatibility includes the 3300 5 mm probe, for applications in which an 8 mm probe is too large for the available mounting space.

3300 XL Proximitor Sensor Part Number Breakdown (Not included when sold from Artisan unless specified)
