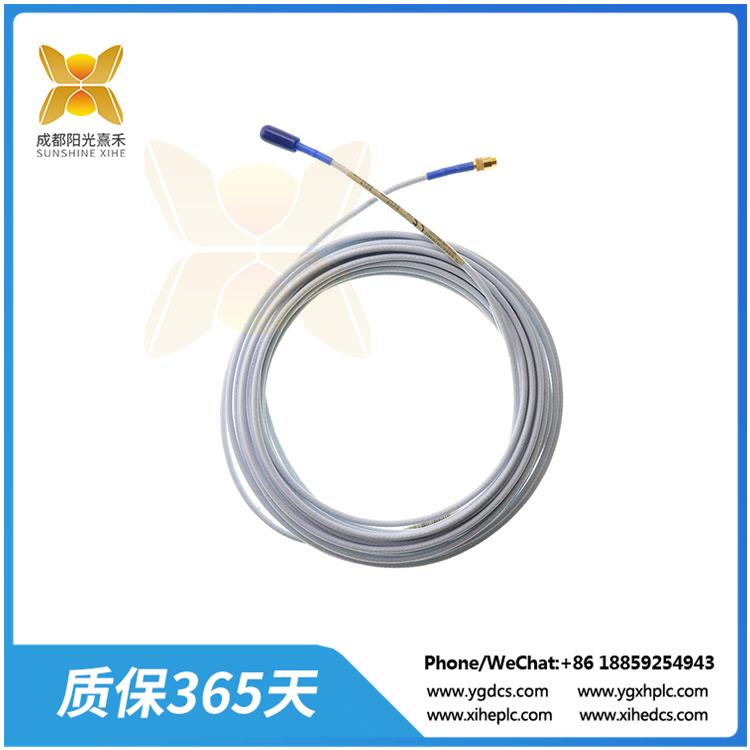

330130-080-10-00 3300 XL 标准延长线

Description

330130-080-10-00    3300 XL 标准延长线

330130-080-10-00    3300 XL 标准延长线

Configuration:
• Cable Length: 8 m (26.2 ft.)
• Connector Protector and Cable Option: Standard Cable
• Agency Approval Option: None

Features:
Ideal for Compression Systems, Speed Measurements, and Fluid-Film Bearing Machines
Extended Temperature Range Applications
Complete Interchangeability of Units and Cabling
Backwards Compatible with Other Non-3300 XL Series Transducer System Components
The Bently Nevada 3300 XL 8mm Proximity Transducer System consists of one 3300 XL 8mm probe, one 3300 XL extension cable, and one 3300 XL Proximitor Sensor. The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard (4th Edition) for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.

Each 3300 XL 8 mm Transducer System component is backward-compatible and interchangeable with other non-XL 3300 series 5 mm and 8 mm transducer system components. This compatibility includes the 3300 5 mm probe, for applications in which an 8 mm probe is too large for the available mounting space.

3300 XL Proximitor Sensor Part Number Breakdown (Not included when sold from Artisan unless specified)
