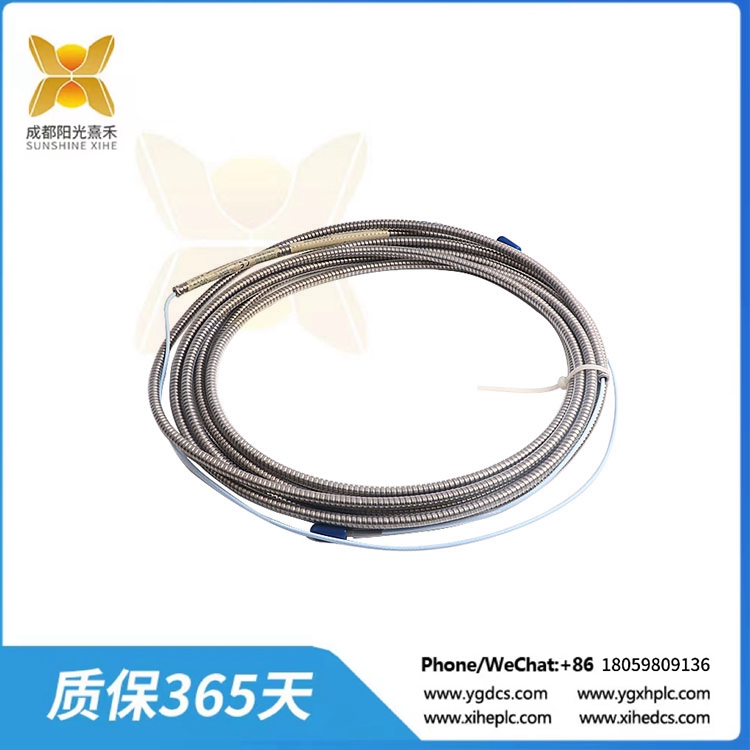

330930-065-01-05 NSv延长线(6.5米)

Description

330930-065-01-05 NSv延长线(6.5米)

特点:
适用于有严格安装要求的场合
取代3300 RAM传感器系统和3000系列或7000系列190传感器系统
平均比例系数7.87 V/mm (200mv /mil)
Bently Nevada 3300 XL NSv接近传感器系统适用于离心式空气压缩机，制冷压缩机，过程气体压缩机和其他安装要求严格的机器。3300 XL NSv接近传感器系统包括:
3300 NSv探头
•3300 NSv延长线
•3300 XL NSv Proximitor传感器

3300 XL NSv换能器系统的主要用途是用于反孔，侧视或后视镜限制使用标准本利内华达3300和3300 XL 5和8毫米换能器系统的区域。它也是小型目标应用的理想选择，例如测量小于51毫米(2英寸)的轴上的径向振动或小于15毫米(0.6英寸)的平面目标上的轴向位置。它主要用于以下应用在流体膜轴承机上，其中存在小轴或缩小的侧视图:
•径向振动和径向位置测量
•轴向(推力)位置测量
•转速表和零速度测量
•相位参考(Keyphasor)信号。

3300 XL NSv换能器系统的设计使其能够取代3300 RAM换能器系统和3000系列或7000系列190换能器系统。从3300 RAM系统升级到3300 XL NSv系统可以使用现有的探头、延长电缆和带有3300 XL NSv Proximitor传感器的监控系统。从3000系列或7000系列传感器系统升级，必须用NSv组件替换探头、延长线和Proximitor传感器。

3300 XL NSv换能器系统的平均比例系数为7.87 V/mm (200 mV/mil)，这是涡流换能器最常见的输出。其增强的侧视图和小目标特性使其比Bently Nevada 3300 xl系列5和8毫米传感器系统具有更短的线性范围。1.5 mm (60 mils)的线性范围超过了3000系列190传感器系统的线性范围。

330930-065-01-05

330930-065-01-05 NSv延长线(6.5米)

Features:
For use in Tight Installation Requirements
Replaces 3300 RAM Transducer Systems and 3000-Series or 7000-Series 190 Transducer System
Average Scale Factor of 7.87 V/mm (200 mV/mil)
The Bently Nevada 3300 XL NSv Proximity Transducer System is intended for use with centrifugal air compressors, refrigeration compressors, process gas compressors and other machines with tight installation requirements. The 3300 XL NSv Proximity Transducer System consists of:
• a 3300 NSv probe
• a 3300 NSv extension cable
• a 3300 XL NSv Proximitor Sensor.

The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in). It is primarily used in the following applications on fluid-filmed bearing machines where a small shaft or reduced side-view is present:
• Radial vibration and radial position measurements
• Axial (thrust) position measurements
• Tachometer and zero speed measurements
• Phase reference (Keyphasor) signals.

The 3300 XL NSv Transducer System design allows it to replace both the 3300 RAM Transducer Systems and the 3000-series or 7000-series 190 Transducer System. Upgrades from the 3300 RAM system to the 3300 XL NSv system may use the existing probe, extension cable, and monitoring system with 3300 XL NSv Proximitor Sensor. Upgrades from the 3000-series or 7000-series Transducer System must replace the probe, extension cable and Proximitor Sensor with NSv components.

The 3300 XL NSv Transducer System has an Average Scale Factor of 7.87 V/mm (200 mV/mil), which is the most common output for eddy current transducers. Its enhanced side-view and small target characteristics give it a shorter linear range than the Bently Nevada 3300 XL-series 5 and 8 mm Transducer System. With The 1.5 mm (60 mils) of linear range exceeds the linear range of the 3000-series 190 Transducer System.
