3500-42M-176449-02 BENTLY 振动监测模块或位移/速度加速度监测模块

Description

3500-42M-176449-02 BENTLY 振动监测模块或位移/速度加速度监测模块

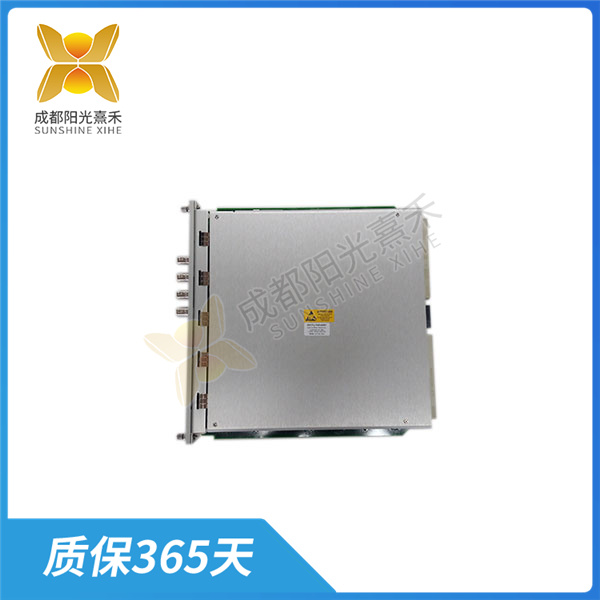

3500-42M-176449-02是Bently Nevada 3500机械保护系统中的一个特定模块，称为振动监测模块或位移/速度加速度监测模块。这个模块主要用于监测大型旋转机械的振动情况，例如汽轮机、压缩机、水泵等设备的轴振、瓦振、胀差、摆度、偏心、轴向位移以及机壳膨胀等参数。

具体来说，3500-42M-176449-02是一个四通道监测器，它可以接收来自接近传感器和地震传感器的输入信号，并对这些信号进行调节和处理，以提供各种振动和位置测量。用户可以使用3500框架组态软件对每个通道进行编程，以实现如径向振动、推力位置、膨胀差、偏心率、加速度、速度、绝对轴和圆形接受区域等功能的监测。

此外，这个模块还具有报警功能，通过持续比较监测参数和配置的报警设定值，当参数超过设定值时，会触发报警，从而提供机械保护。这些报警信息对于操作和维护人员来说非常重要，因为它们可以帮助及时发现并解决机械问题，防止设备损坏和生产中断。

需要注意的是，为了正常运行，3500-42M-176449-02模块通常需要与其他3500系列模块一起使用，如3500/01软件模块、3500/05系统框架模块、3500/15电源模块等。这些模块共同组成一个完整的监测系统，为工业设备提供全面的振动和机械保护。

3500-42M-176449-02 BENTLY 振动监测模块或位移/速度加速度监测模块

The 3500-42M-176449-02 is a specific module in the Bently Nevada 3500 mechanical protection system called the Vibration Monitoring module or the Displacement/Velocity Acceleration Monitoring module. This module is mainly used to monitor the vibration of large rotating machinery, such as turbine, compressor, water pump and other equipment axial vibration, tile vibration, expansion, swing, eccentricity, axial displacement and housing expansion parameters.

Specifically, the 3500-42M-176449-02 is a four-channel monitor that receives input signals from proximity sensors and seismic sensors, and adjusts and processes these signals to provide a variety of vibration and position measurements. Each channel can be programmed using the 3500 frame configuration software to monitor functions such as radial vibration, thrust position, differential expansion, eccentricity, acceleration, speed, absolute axis, and circular acceptance area.

In addition, this module also has an alarm function, which provides mechanical protection by continuously comparing the alarm Settings of the monitoring parameters and configurations, and triggering an alarm when the parameters exceed the set values. These alarms are very important for operations and maintenance personnel because they can help detect and resolve mechanical problems in a timely manner, preventing equipment damage and production disruptions.

It should be noted that in order to operate properly, the 3500-42M-176449-02 module usually needs to be used with other 3500series modules, such as 3500/01 software module, 3500/05 system frame module, 3500/15 power module, etc. Together, these modules form a complete monitoring system that provides comprehensive vibration and mechanical protection for industrial equipment.
