描述

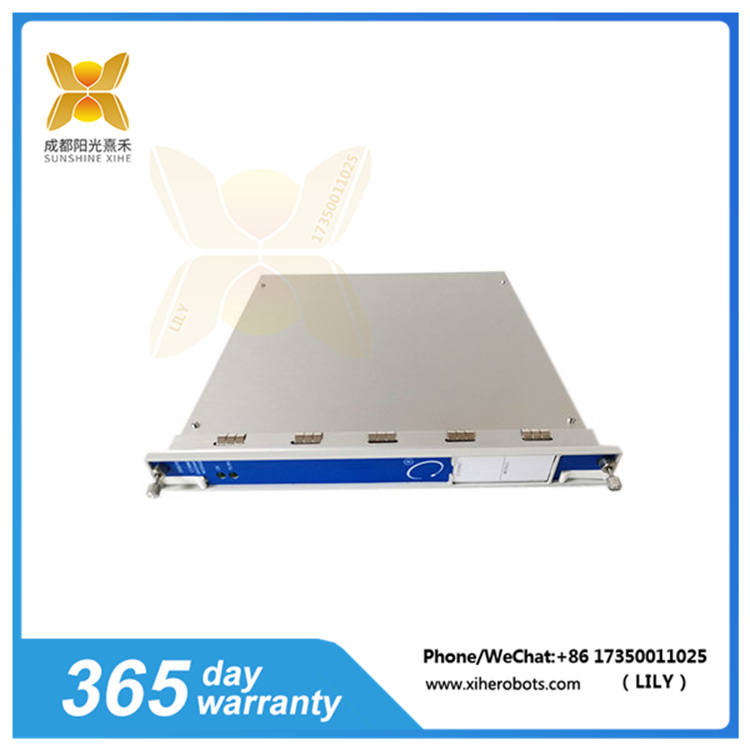

产品细节说明:3500/92 136180-01 BENTLY 通信网关I/O模块
3500/92 136180-01作为一款功能强大的通信网关I/O模块,凭借其广泛的通讯能力、支持的多种协议和模块化设计等特点,在工业监测和自动化控制领域发挥着重要作用。对于需要高精度、高可靠性监测的工业应用来说,它是一个值得考虑的选择。
- 广泛的通讯能力:
- 3500/92通讯网关具有广泛的通讯能力,可通过以太网TCP/IP和串行(RS232/RS422/RS485)通讯协议将所有框架的监测数据和状态与过程控制和其它自动化系统集成。
- 支持与3500框架组态软件和数据采集软件的以太网通讯。
- 支持的协议:
- Modicon Modbus®(通过串行通讯)
- Modbus/TCP(用于TCP/IP以太网通讯的串行Modbus)
- 本特利协议(与3500框架组态和数据采集软件包通讯)
3500/92 136180-01
产品详情参数 :3500/92 136180-01 BENTLY 通信网关I/O模块
- 接口与连接:
- 3500/92通过RJ45与10BASE-T星型拓扑以太网络连接。
- 具有与3500/90相同的通讯接口、通讯协议以及其它特点,但具有可组态的Modbus寄存器功能,能提供与初始值寄存器一样的功能。
- 指示灯:
- OK LED:指示3500/92运行正常。
- TX/RX LED:指示3500/92与3500框架中的其它模块通讯。
- 模块化设计:
- 可选的I/O模块类型包括RS485 I/O模块、RS232/RS422 I/O模块、以太网/RS232 I/O模块和以太网/RS485 I/O模块。
3500/92 136180-01 BENTLY 应用领域:
3500/92 136180-01通信网关I/O模块广泛应用于需要高精度、高可靠性监测的工业领域,如电力、石油、化工、冶金等行业的关键设备保护系统。它特别适用于对设备运行状态进行实时监测和故障诊断的场合,如汽轮机、压缩机、风机等旋转设备的保护系统。
Product details: 3500/92 136180-01 BENTLY Communication Gateway I/O Module
3500/92 136180-01, as a powerful communication gateway I/O module, plays an important role in industrial monitoring and automation control due to its extensive communication capabilities, support for multiple protocols, and modular design. For industrial applications that require high-precision and high reliability monitoring, it is a worthwhile choice to consider.
Extensive communication capabilities:
The 3500/92 communication gateway has extensive communication capabilities and can integrate monitoring data and status of all frameworks with process control and other automation systems through Ethernet TCP/IP and serial (RS232/RS422/RS485) communication protocols.
Supports Ethernet communication with 3500 rack configuration software and data acquisition software.
Supported protocols:
Modicon Modbus ® (via serial communication)
Modbus/TCP (serial Modbus for TCP/IP Ethernet communication)
Bentley protocol (communication with 3500 rack configuration and data acquisition software package)
Product details and parameters: 3500/92 136180-01 BENTLY Communication Gateway I/O Module
Interface and Connection:
3500/92 is connected to a 10BASE-T star topology Ethernet network via RJ45.
It has the same communication interface, protocol, and other features as the 3500/90, but with configurable Modbus register function, providing the same functionality as the initial value register.
indicator light:
OK LED: indicates that the 3500/92 is running normally.
TX/RX LED: Indicates communication between 3500/92 and other modules in the 3500 rack.
Modular design:
The optional types of I/O modules include RS485 I/O module, RS232/RS422 I/O module, Ethernet/RS232 I/O module, and Ethernet/RS485 I/O module.
3500/92 136180-01 BENTLY Application areas:
The 3500/92 136180-01 communication gateway I/O module is widely used in industrial fields that require high-precision and high reliability monitoring, such as key equipment protection systems in industries such as power, petroleum, chemical, and metallurgy. It is particularly suitable for real-time monitoring and fault diagnosis of equipment operation status, such as protection systems for rotating equipment such as steam turbines, compressors, and fans.
