350025 149369-01 键相器模块还支持多种配置和冗余设置

Description

350025 149369-01 键相器模块还支持多种配置和冗余设置

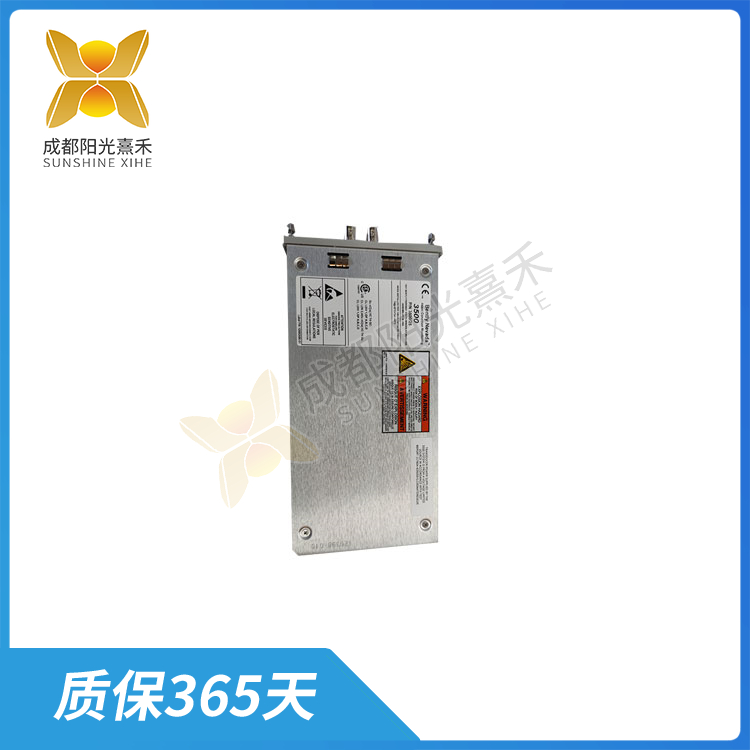

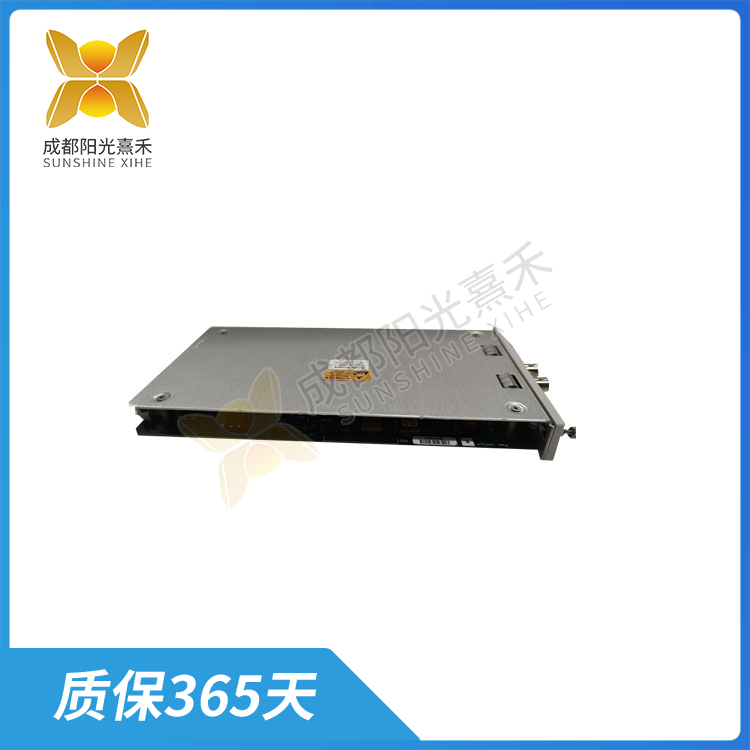

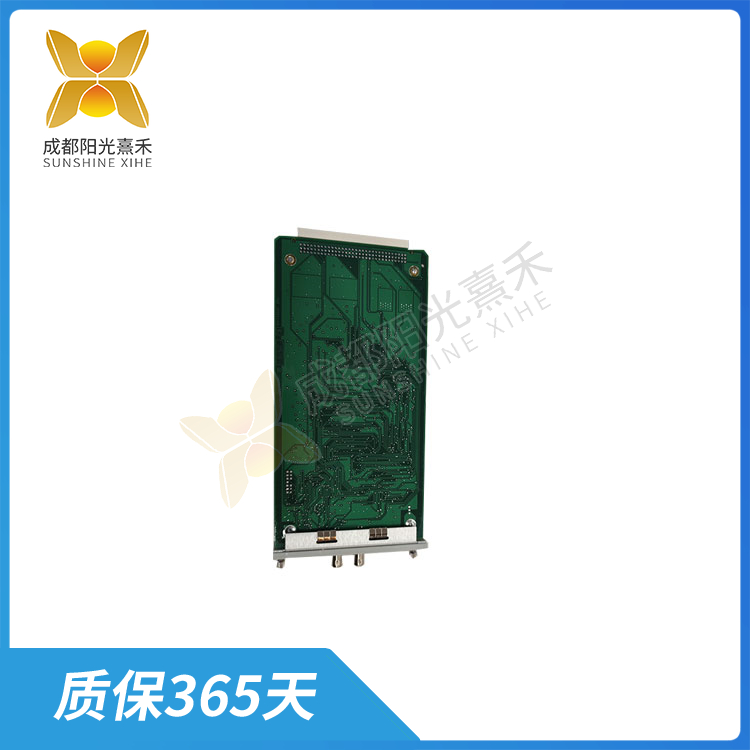

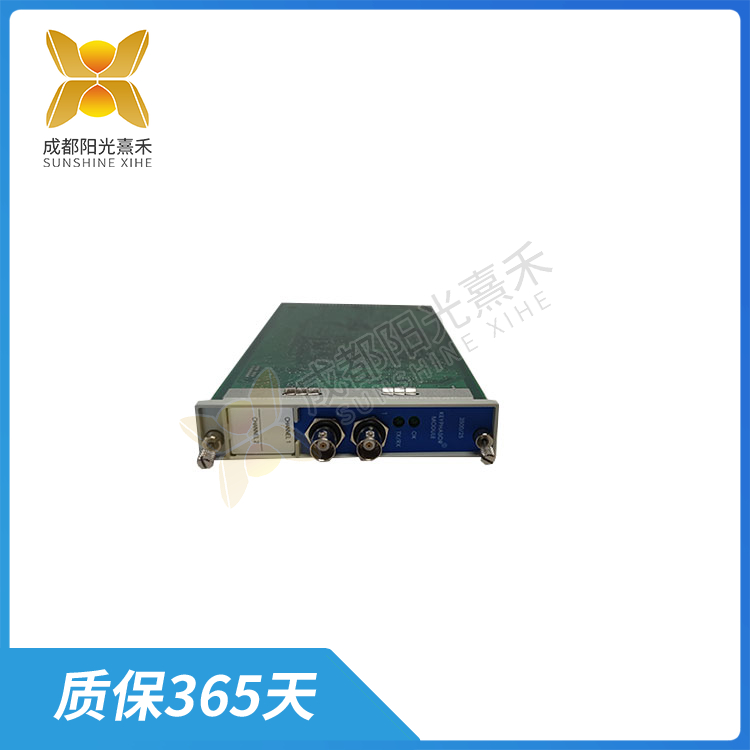

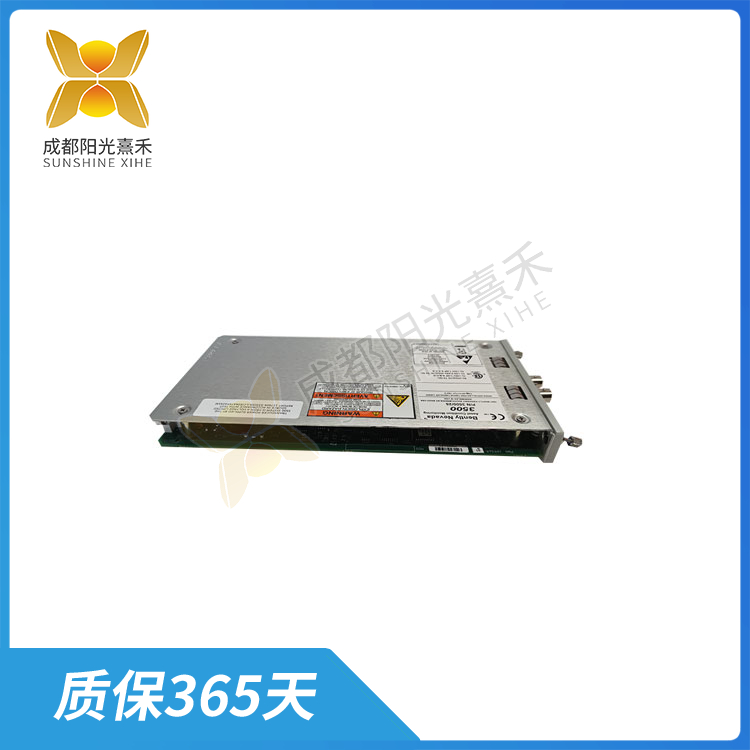

键相器模块，如Bently 3500/25，是一个关键组件，350025 149369-01用于旋转设备的监测和保护系统。其主要功能是为监测器模块提供键相位信号。

键相位信号是来自旋转轴或齿轮的每转一次或每转多次的脉冲信号。当轴上的键相标记与键相传感器对齐时，键相器模块会检测到这一对齐情况，并将输入信号转换为数字键相位信号。这个数字信号可以指示何时转轴上的键相位标记通过键相位探头。

每个键相模块通常具有多个（例如两个）输入通道，允许它接收来自多个传感器的信号。在3500机械保护系统中，可以安装多个键相器模块以接收更多的键相位信号，从而提供更全面的监测能力。

此外，键相器模块还支持多种配置和冗余设置。例如，350025 149369-01可以与另一个键相器模块配对，以实现并行工作，提供主要和辅助键相信号，增强系统的可靠性和稳定性。同时，它还可以与其他模块和设备通信，实现数据的交换和共享。

总之，350025 149369-01键相器模块是旋转设备监测和保护系统中的重要组成部分，它提供精确的键相位信号，帮助系统实现更准确的监测和诊断。

350025 149369-01 键相器模块还支持多种配置和冗余设置

Key phaser modules, such as the Bently 3500/25, are a key component, 350025 149369-01 for the monitoring and protection system of rotating equipment. Its main function is to provide the key phase signal for the monitor module.

The key phase signal is the pulse signal from the rotating shaft or gear for every turn or many times per turn. When the key phase marker on the axis is aligned with the key phase sensor, the key phase module detects this alignment and converts the input signal into a digital key phase signal. This digital signal can indicate when to rotate the key phase marker on the shaft through the key phase probe.

Each key phase module typically has multiple (for example, two) input channels, allowing it to receive signals from multiple sensors. In the 3500 mechanical protection system, multiple key phaser modules can be installed to receive more key phase signals, providing more comprehensive monitoring capabilities.

In addition, the key phaser module supports multiple configurations and redundancy Settings. For example, 350025 149369-01 can be paired with another key phaser module to enable parallel work, provide primary and secondary key confidence signals, and enhance system reliability and stability. At the same time, it can also communicate with other modules and devices to realize the exchange and sharing of data.

In summary, the 350025 149369-01 Key phase module is an important part of the rotating equipment monitoring and protection system, which provides accurate key phase signals to help the system achieve more accurate monitoring and diagnosis.
