5069-L310ER CompactLogix 5380控制器模块

Description

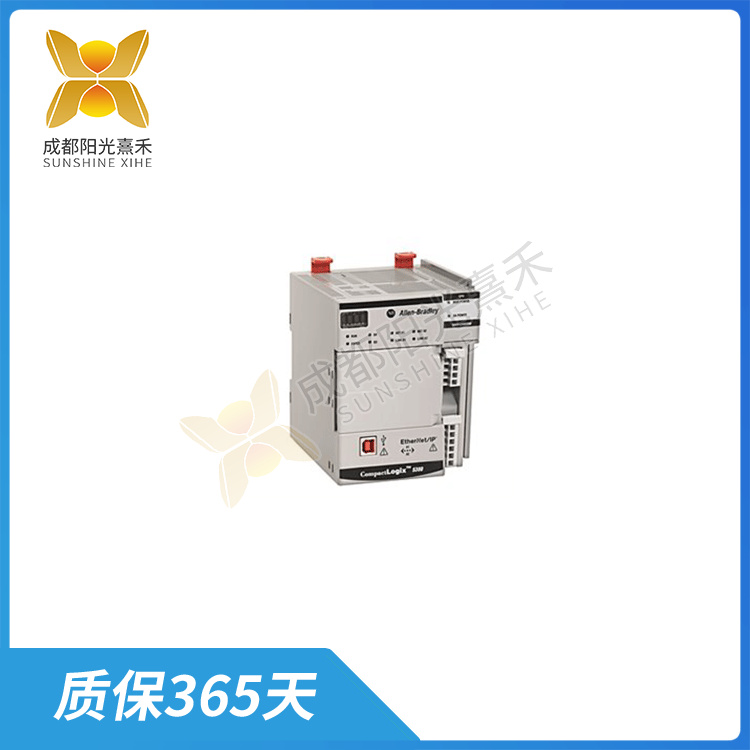

5069-L310ER CompactLogix 5380控制器模块

5069-L310ER 是罗克韦尔自动化（Rockwell Automation）的一款可编程自动化控制器（PAC），具体是 CompactLogix 5380 控制器的一个型号。这款控制器具有集成安全功能，其安全完整性等级（SIL）为2级，适用于满足这一SIL等级且无容错的应用中。

5069-L310ER 控制器具有多种功能和特性，包括：

1. 内存配置：配备了1 MB的标准用户内存和0.5 MB的安全内存，此外，还可以通过控制器附带的1784-SD2安全数字（SD）卡提供额外的2 GB嵌入式内存。

2. 通信接口：具有双以太网I/P端口，支持线性、星形和设备级环（DLR）拓扑。这使得控制器能够轻松地与其他设备或系统进行通信。

3. 任务处理能力：该控制器支持最多32个任务，其中31个可以被指定为标准任务，1个可以被指定为安全任务。每个任务中可以处理多达1000个程序。

4. I/O扩展能力：控制器最多可以连接24个以太网/IP网络节点，并可以同时托管8个本地I/O模块。这些本地I/O模块与连接到控制器右侧的Allen-Bradley I/O模块兼容。

5. 安装和环境要求：控制器是一个DIN导轨安装设备，需要安装在尺寸为35 x 7.5毫米（1.38 x 0.30英寸）的DIN导轨上，仅支持水平安装。由于它配有开放式外壳，因此必须安装在外壳内，以防止灰尘、污垢、油脂、腐蚀性气体等工业污染物的侵害。面板内的温度必须保持在0°C至60°C（32°F至140°F）之间。

6. 振动和冲击抗性：由于控制器安装在DIN导轨上，振动和冲击必须分别限制在5 g @ 10…500 Hz和30 g。

为了获得关于 5069-L310ER 的最准确和最新的技术细节，建议直接查阅罗克韦尔自动化的官方文档、产品手册或联系相关的技术支持团队。此外，考虑到工业自动化系统的复杂性和多样性，在选择和使用该控制器时，建议进行充分的调研和评估，以确保其满足特定的应用需求和要求。

5069-L310ER CompactLogix 5380控制器模块

The 5069-L310ER is a programmable Automation controller (PAC) from Rockwell Automation, specifically a model of the CompactLogix 5380 controller. The controller has integrated safety features and a Safety Integrity level (SIL) of level 2 for fault-free applications that meet this SIL level.

The 5069-L310ER controller has a variety of functions and features, including:

Memory configuration: Comes with 1 MB of standard user memory and 0.5 MB of secure memory, in addition, an additional 2 GB of embedded memory can be provided via the 1784-SD2 secure digital (SD) card included with the controller.

Communication interface: Dual Ethernet I/P ports support linear, star, and device-level loop (DLR) topologies. This allows the controller to easily communicate with other devices or systems.

Task processing capability: The controller supports up to 32 tasks, of which 31 can be designated as standard tasks and 1 can be designated as security tasks. Up to 1000 programs can be processed in each task.

I/O scaling capability: The controller can connect up to 24 Ethernet /IP network nodes and can host up to eight local I/O modules simultaneously. These local I/O modules are compatible with the Allen-Bradley I/O module connected to the right side of the controller.

Installation and Environmental requirements: The controller is a DIN rail mounting device that needs to be mounted on a DIN rail measuring 35 x 7.5 mm (1.38 x 0.30 in) and supports horizontal mounting only. Because it is equipped with an open housing, it must be installed in the housing to prevent dust, dirt, grease, corrosive gases and other industrial pollutants. The temperature inside the panel must be maintained between 0°C and 60°C (32°F to 140°F).

Vibration and shock resistance: Since the controller is mounted on a DIN rail, vibration and shock must be limited to 5 g @ 10, respectively. 500 Hz and 30 g.

For the most accurate and up-to-date technical details on the 5069-L310ER, it is recommended to consult Rockwell Automation’s official documentation, product manual, or contact the appropriate technical support team. In addition, considering the complexity and diversity of industrial automation systems, it is recommended that sufficient research and evaluation be carried out when selecting and using this controller to ensure that it meets the specific application needs and requirements.
