52030C10-PCD2 可以增强微弱信号的采集精度和稳定性

Description

52030C10-PCD2 可以增强微弱信号的采集精度和稳定性

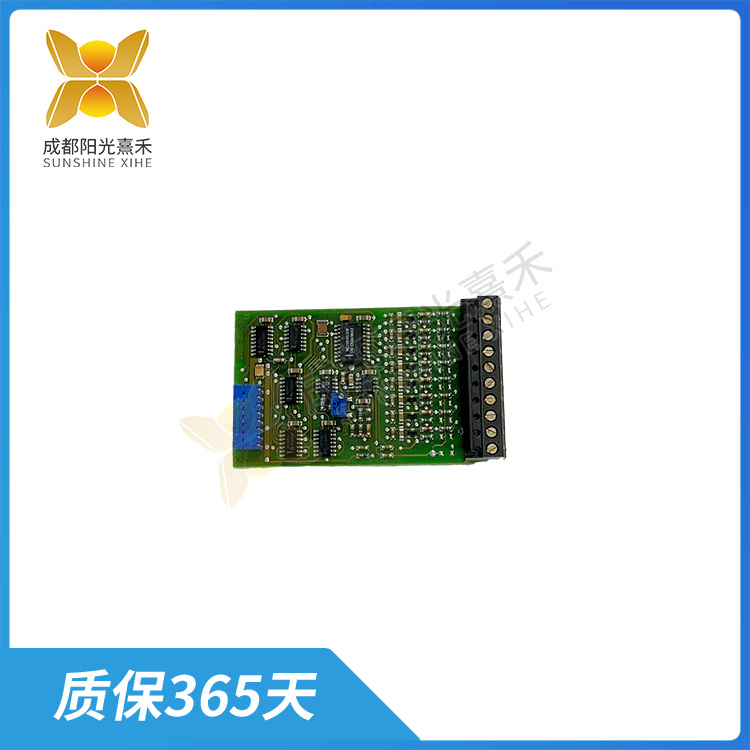

52030C10-PCD2模拟输入模块是一款将远程现场的模拟量信号采集至计算机的设备。其利用RS-485总线作为数据通信线路，提供模拟量转485功能，能够同时将模拟量输入至模块，并通过RS-485总线传输至计算机。由于采用RS-485接口作为通信接口，其能够多个模块组合传输更多路数模拟量信号，并且能够在485线路上分散配置，采用地址码进行区分，可以直接接入MODBUS RTU协议的组态软件。

此外，52030C10-PCD2模拟输入模块的主要作用是收集模拟信号。例如，在工业应用中，它可以收集外部压力传感器收集的模拟信号，并进行相应的处理。这里的传感器数据包括电压、电流、热阻、热电偶、温度等模拟值，然后通过总线传输给计算机的智能模块。

除了上述提到的功能外，52030C10-PCD2模拟输入模块还有其他功能：

数据转换和处理：模拟输入模块可以将模拟信号转换为数字信号，便于计算机或控制系统进行处理和分析。

信号放大和滤波：有些模拟输入模块具有信号放大和滤波功能，可以增强微弱信号的采集精度和稳定性。

自动校准和补偿：一些高精度的模拟输入模块具备自动校准和补偿功能，可以在长期使用中对模块自身产生的误差进行修正，提高测量的准确性。

多种接口通信：模拟输入模块可以通过不同的接口与外部设备进行通信，如RS-232、RS-485、CAN总线等，实现多种数据传输和控制方式。

远程设定和配置：通过串行通信接口，用户可以在远程对模拟输入模块进行设定和配置，例如设定采样速率、滤波系数等参数。

故障诊断和保护：模拟输入模块具备故障诊断和保护功能，当出现异常情况时，能够自动报警或采取保护措施，防止设备损坏。

多种电源供电方式：模拟输入模块可以根据实际需求采用多种电源供电方式，如直流电源、交流电源或电池供电等。

小型化和集成化设计：随着技术的发展，模拟输入模块正向着小型化和集成化方向发展，便于安装和集成到各种系统中。

52030C10-PCD2 可以增强微弱信号的采集精度和稳定性

The 52030C10-PCD2 analog input module is a device that collects analog signals from a remote field to a computer. It uses the RS-485 bus as a data communication line to provide analog to 485 function, which can simultaneously input the analog to the module and transmit it to the computer through the RS-485 bus. As the RS-485 interface is used as the communication interface, it can combine multiple modules to transmit more analog signals, and can be distributed on the 485 line, using the address code to distinguish, and can directly access the configuration software of MODBUS RTU protocol.

In addition, the main role of the 52030C10-PCD2 analog input module is to collect analog signals. For example, in industrial applications, it can collect analog signals collected by external pressure sensors and process them accordingly. Here the sensor data includes voltage, current, thermal resistance, thermocouple, temperature and other analog values, and then transmitted to the intelligent module of the computer through the bus.

In addition to the functions mentioned above, the 52030C10-PCD2 analog input module has additional functions:

Data conversion and processing: The analog input module can convert analog signals into digital signals for processing and analysis by a computer or control system.

Signal amplification and filtering: Some analog input modules have signal amplification and filtering functions, which can enhance the acquisition accuracy and stability of weak signals.

Automatic calibration and compensation: Some high-precision analog input modules have automatic calibration and compensation functions, which can correct the errors generated by the module itself in long-term use and improve the accuracy of measurement.

Multiple interface communication: The analog input module CAN communicate with external devices through different interfaces, such as RS-232, RS-485, CAN bus, etc., to achieve a variety of data transmission and control methods.

Remote setting and configuration: Through the serial communication interface, the user can remotely set and configure the analog input module, such as setting the sampling rate, filtering coefficient and other parameters.

Fault diagnosis and protection: The analog input module has fault diagnosis and protection functions, and can automatically alarm or take protective measures when abnormal conditions occur to prevent equipment damage.

Multiple power supply modes: The analog input module can use multiple power supply modes, such as DC power supply, AC power supply, and battery power supply, according to actual requirements.

Miniaturization and integrated design: With the development of technology, analog input modules are moving towards miniaturization and integration for easy installation and integration into various systems.
