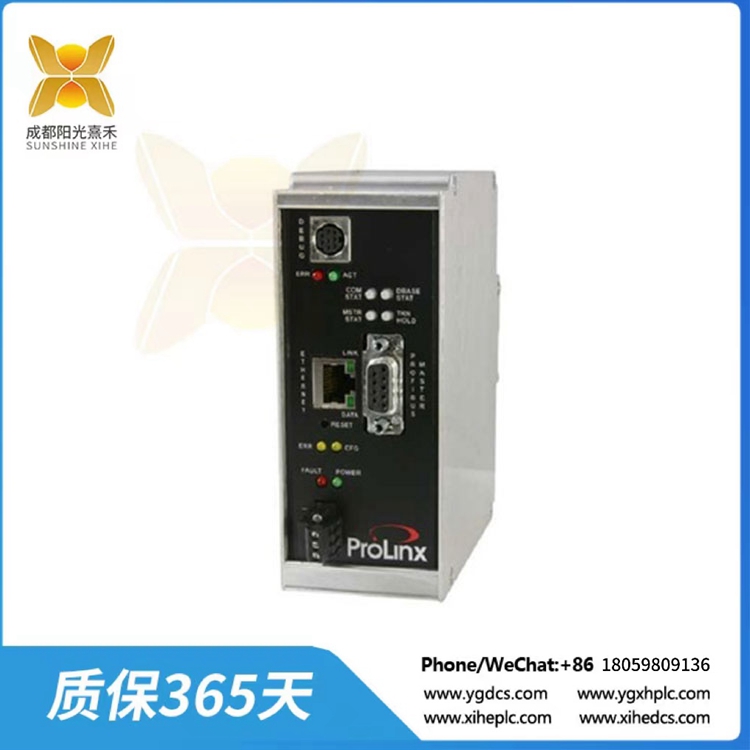

5205-DNPSNET-PDPS DNP 3.0通过以太网到PROFIBUS DP从网关

Description

5205-DNPSNET-PDPS DNP 3.0通过以太网到PROFIBUS DP从网关

应用程序
DNPSNET-PDPS模块是许多应用的理想解决方案，其中DNP通过以太网连接可用于将PROFIBUS DP主设备集成到系统中。以太网DNP网关是一个功能强大的模块，同时支持客户端和服务器，可以轻松连接到其他DNP设备。结合PROFIBUS DP Slave支持，该模块为当今工业市场中使用的许多PROFIBUS主设备提供了非常强大的接口。该模块应用于大多数行业，特别是制造业，石油和天然气，电力和食品加工。

规范
内部数据库
ProLinx模块包含一个内部数据库，该数据库由应用程序数据、状态信息和配置信息区域组成。

内部数据库在模块上的所有端口之间共享，并用作将信息从一个网络上的设备传递到另一个网络上的一个或多个设备的管道。

应用数据区
数据区用于协议驱动程序存储和检索数据，并用于协议之间的数据交换。数据库用作向远程设备写入命令的源，并保存从远程设备收集的数据。在配置文件(存储在配置数据区域中)中定义的命令控制如何在数据库中处理数据。

状态数据区
该区域用于存储每个端口的错误码、计数器和端口状态信息。

配置数据区
该区域包含模块的配置信息，如端口配置、网络信息和命令配置。该配置文件被下载到该区域，或从该区域上传。

5205-DNPSNET-PDPS

5205-DNPSNET-PDPS DNP 3.0通过以太网到PROFIBUS DP从网关

Applications
The DNPSNET-PDPS modules are the ideal solution for the many applications where DNP over Ethernet connectivity can be used to integrate a PROFIBUS DP master device into a system. The DNP over Ethernet gateway is a powerful module designed with both Client and Server support, enabling easy connection to other DNP devices. In combination with the PROFIBUS DP Slave support, the module provides a very powerful interface to the many PROFIBUS master devices which are in use in the industrial marketplace today. Applications for the module are found in most industries, especially the Manufacturing, Oil and Gas, Electrical Power and Food Processing.

Specifications
Internal Database
The ProLinx module contains an internal database that consists of areas for application data, status information, and configuration information.

The internal database is shared between all ports on the module and is used as a conduit to pass information from a device on one network to one or more devices on another network.

Application Data Area
The data area is used to store and retrieve data by the protocol drivers and for data exchange between protocols. The database is used as a source for write commands to remote devices and holds data collected from the remote devices. Commands defined in the configuration file (stored in the configuration data area) control how the data is to be handled in the database.

Status Data Area
This area is used to store error codes, counters, and port status information for each port.

Configuration Data Area
This area contains module configuration information such as port configuration, network information, and command configuration. This configuration file is downloaded to, or uploaded from, this area.
