531X307LTBAHG1 LAN 端子板 531X 系列

Description

531X307LTBAHG1 LAN 端子板 531X 系列

产品描述
通用电气公司为531X系列替代板开发了531X307LTBAHG1局域网(LAN)终端板。来自GE家族的驱动器和励磁器阵列可以安装此卡。安装卡为驱动器提供用于控制驱动器和各种外部设备的接口系统。按钮、指示灯和联锁等项目是一些可能使用的外部设备。

进出该驱动器的LAN信号具有相应分配的接口平台。安装后，531X307LTBAHG1为驱动器提供了8个可配置的控制输入插头。输入可以接受额定电压在2到240v之间，交流和直流电源。输入电压被转换成控制板可消化的24VDC逻辑信号。信号现在可以很容易地在整个局域网终端和NTB终端板，以及驱动控制板上进行传输。低电压，低电流C型继电器触点连接器包括板上的七个控制输出。

531X307LTBAHG1

531X307LTBAHG1 LAN 端子板 531X 系列

Product Description

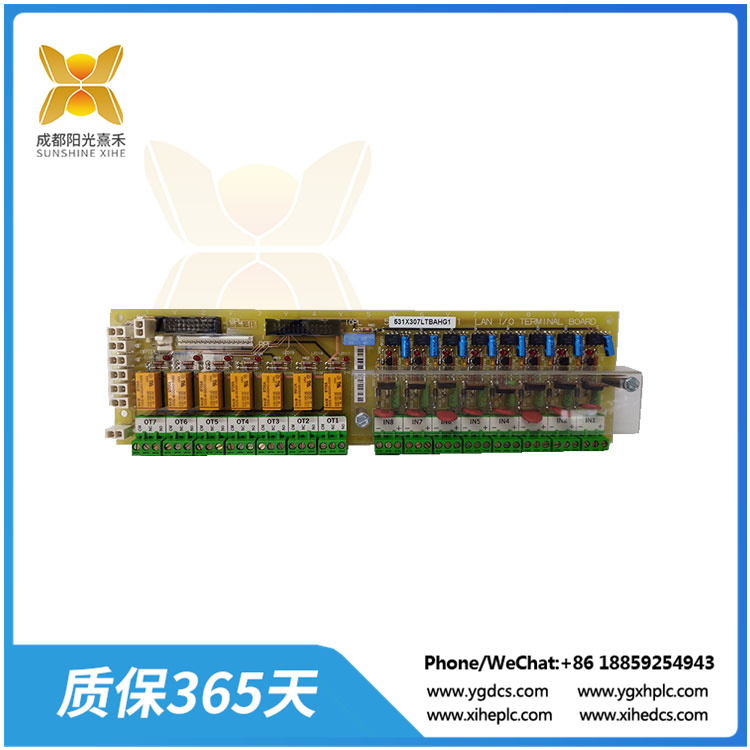

General Electric developed the 531X307LTBAHG1 local area network (LAN) terminal board for the 531X series of replacement boards. An array of drives and exciters from the GE family can have this card installed. Installing the card provides the drive with an interface system for the controlling drive and a variety of external devices.  Items such as pushbuttons, indicator lights, and interlocks are a few of the possible external devices used.

LAN signals to and from the drive are provided with an interface platform to be distributed accordingly. When installed, 531X307LTBAHG1 provides eight configurable control input plugs to the drive. The inputs can accept voltages rated between 2 and 240 V, both AC and DC power. Voltages to the inputs are converted into control board digestible 24VDC logic signals. Signals can now be easily carried throughout the LAN terminal and the NTB terminal boards, as well as the drive control board. Low voltage, low current form C relay contact connectors comprise the seven control outputs found on board.
