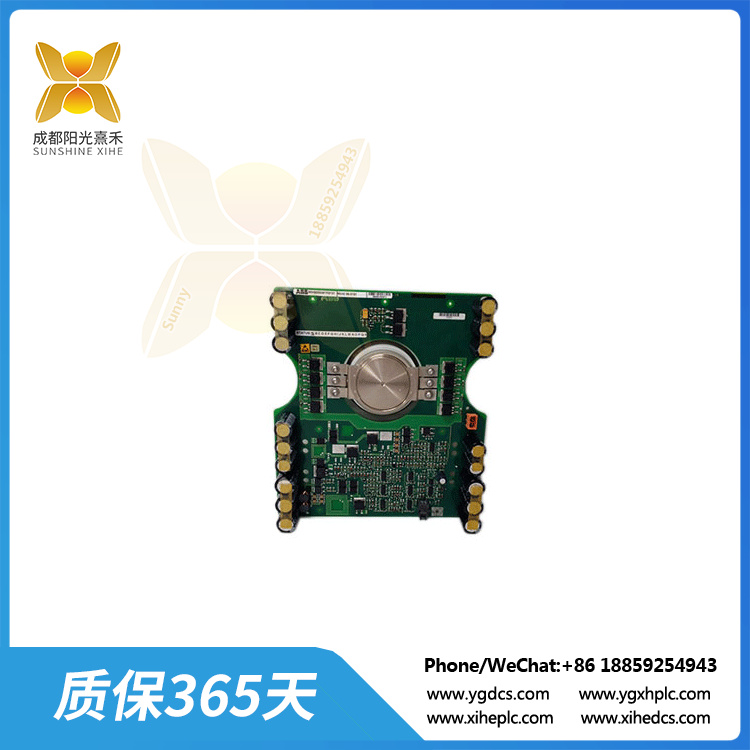

5SHX06F6004 集成栅极换向晶闸管

Description

5SHX06F6004 集成栅极换向晶闸管

5SHX06F6004是一款集成栅极换向晶闸管（Integrated Gate Commutated Thyristor，简称IGCT），用于工业设备中切换电流的功率半导体电子器件，由三菱和ABB共同开发。它的基本结构使得它与栅极关断（GTO）晶闸管相似，但有一个显著的特点，即具有多个栅极并联。

这种结构使得IGCT具有更低的传导损耗，并能承受更高的电压上升速率，因此在大多数应用中不需要缓冲器。由于多个栅极并联，关断电流大于阳极电流，导致完全消除少数载流子的时间变短，使IGCT器件有更快的关断速度。同时，栅极并联也使得与栅极驱动电路连接的电感及电阻变得更低。

与GTO晶闸管相比，IGCT具有更快的关断时间，因此可以在较短的时间内在高达几kHz的频率下工作。此外，IGCT可以制作成有或没有反向阻断能力的器件，这进一步增加了其在不同应用中的灵活性。

总的来说，集成栅极换向晶闸管（IGCT）以其独特的结构和性能特点，5SHX06F6004在工业设备的电流切换中发挥着重要作用，特别是在需要高频率工作和快速关断的场合中。

5SHX06F6004 集成栅极换向晶闸管

The 5SHX06F6004 is an Integrated Gate Commutated Thyristor (IGCT), a power semiconductor electronic device for switching current in industrial equipment, jointly developed by Mitsubishi and ABB. Its basic structure makes it similar to a gate turn-off (GTO) thyristor, but with the notable feature of having multiple gates in parallel.

This structure allows IGCT to have lower conduction losses and to withstand higher voltage rise rates, so buffers are not required in most applications. Due to the multiple grid in parallel, the turn-off current is greater than the anode current, resulting in a shorter time to completely eliminate the minority carriers, so that the IGCT device has a faster turn-off speed. At the same time, the grid parallel also makes the inductance and resistance connected to the grid drive circuit lower.

Compared to GTO thyristors, IGCT has a faster turn-off time, so it can operate at frequencies up to a few kHz for a shorter period of time. In addition, IGCT can be made into devices with or without reverse blocking capability, which further increases its flexibility in different applications.

Overall, the integrated gate commutator thyristor (IGCT) with its unique structure and performance characteristics, 5SHX06F6004 plays an important role in the current switching of industrial equipment, especially in the need for high frequency operation and fast shutdown occasions.
