760-P5-G5-S5-HI-A20-R GE 保护继电器

Description

760-P5-G5-S5-HI-A20-R GE 保护继电器

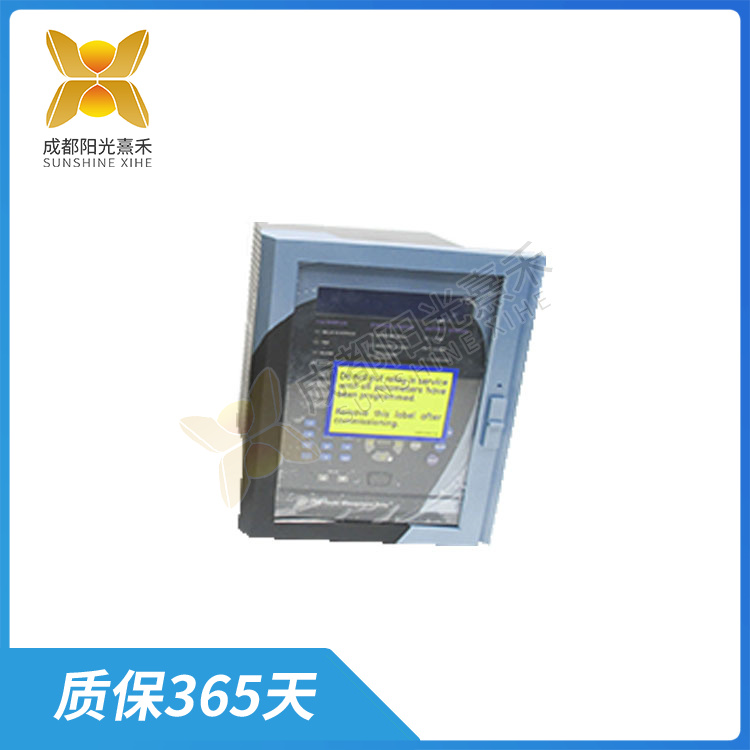

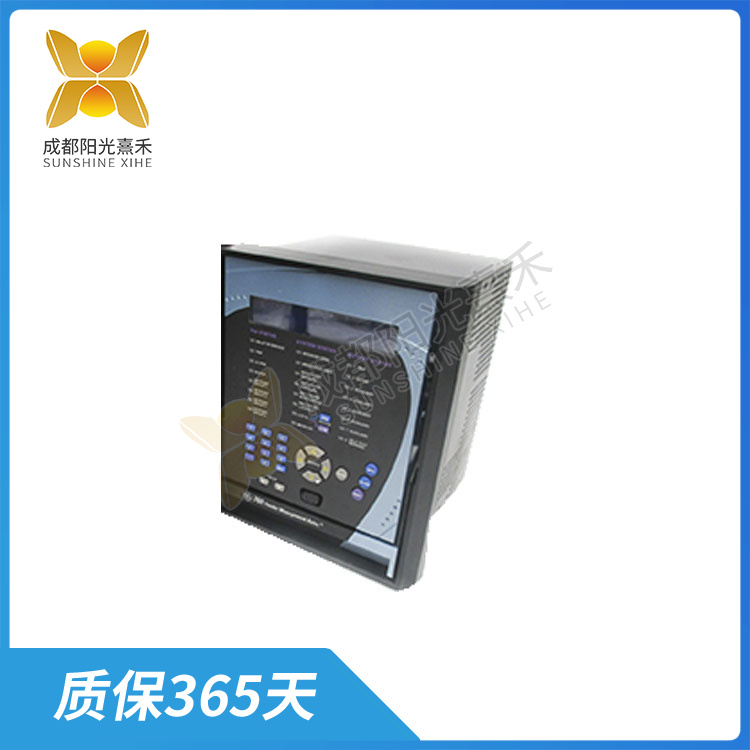

760-P5-G5-S5-HI-A20-R 是一款 GE Multilin 的保护继电器。这款继电器是一种馈线管理继电器，具有以下主要特点：

输入配置：它设计了 5 A 相电流输入、5 A 零序电流输入和 5 A 灵敏接地电流输入。这种配置与系列中其他可能接受 1A、10A、20A 或某种组合输入的装置形成对比，因此用户在购买时应确保所选装置适合其系统需求。

安装方式：这款装置可以安装在 19 英寸的面板上。

电源需求：它提供额定值为 88-300 VCD、70-265 VAC @ 48-62 Hz 的电源。

输出功能：该装置具有八个 4-20 毫安模拟输出。

显示与通信：它包括一个红色断路器闭合 LED 和一个带以太网 10Base T 选项的增强型显示屏。增强型面板拥有更宽的 LCD 和更简洁的设计。以太网 10Base T 选项允许继电器连接到更大的网络并进行远程交互。

监控功能：760-P5-G5-S5-HI-A20-R 具有数据记录、示波器、波形捕获和实际值计量等多项监控功能。用户可以通过该装置的 40 个字符的字母数字液晶显示器或使用 GE Multilin 的 EnerVista 760 软件程序来检查其中的一些数据。该软件程序提供了更精简和扩展的用户界面。继电器记录的数据可以进行趋势分析、绘图和导出以供进一步查看。

综上，这款保护继电器具有高度的可配置性、灵活的通信能力和强大的监控功能，适用于需要精确电流控制和监测的电力系统。在使用之前，用户应确保其了解并遵循相关的安装、配置和维护指南，以确保其安全、有效的运行。

760-P5-G5-S5-HI-A20-R GE 保护继电器

The 760-P5-G5-S5-HI-A20-R is a GE Multilin protective relay. This relay is a feeder management relay with the following key features:

Input configuration: It is designed with 5 A phase current input, 5 A zero sequence current input and 5 A sensitive ground current input. This configuration is in contrast to other devices in the family that may accept 1A, 10A, 20A, or some combination of inputs, so users should make sure that the selected device is suitable for their system needs when purchasing.

How to mount: The device can be mounted on a 19-inch panel.

Power requirements: It offers power rated from 88-300 VCD, 70-265 VAC @ 48-62 Hz.

Output function: The unit has eight 4-20 mah analog outputs.

Display and communication: It includes a red circuit breaker closure LED and an enhanced display with Ethernet 10Base T option. The enhanced panel has a wider LCD and a simpler design. The Ethernet 10Base T option allows relays to connect to larger networks and interact remotely.

Monitoring function: 760-P5-G5-S5-HI-A20-R has a number of monitoring functions such as data recording, oscilloscope, waveform capture and actual value measurement. Users can examine some of this data through the device’s 40-character alphanumeric LCD display or using GE Multilin’s EnerVista 760 software program. The software program provides a more streamlined and extended user interface. Data recorded by relays can be trended, plotted, and exported for further review.

In summary, this protective relay has a high degree of configurability, flexible communication capabilities and powerful monitoring functions, suitable for power systems requiring accurate current control and monitoring. Prior to use, users should ensure that they understand and follow the relevant installation, configuration and maintenance guidelines to ensure their safe and effective operation.
