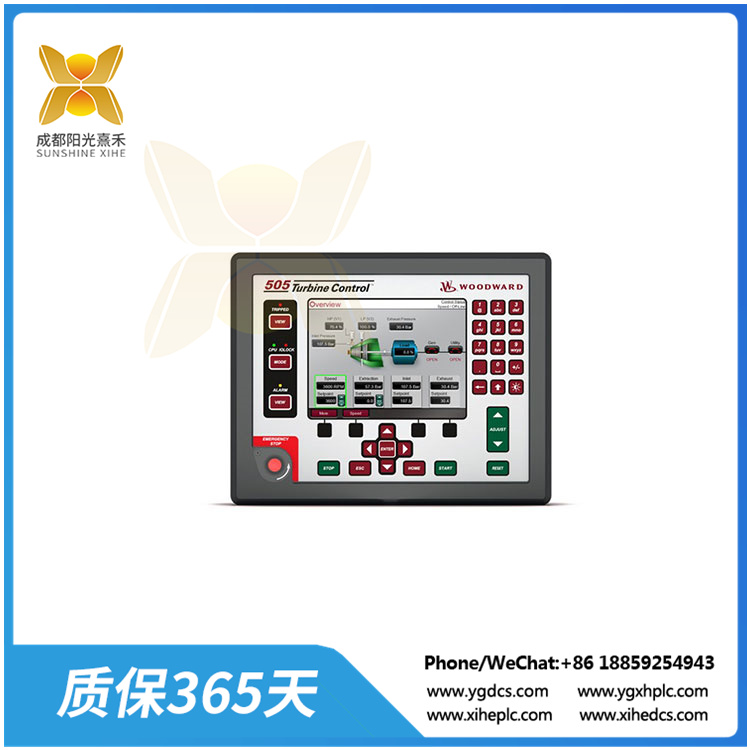

8200-1312 集成图形前面板HMI屏幕

Description

8200-1312 集成图形前面板HMI屏幕

8200-1312 集成图形前面板HMI屏幕

Integrated Graphical Front Panel HMI Screen:

Multilingual screens including Chinese for easier operator use, diagnosis and control.
Large screen allows easy navigation and icon view of parameters and performance.
Real time trending locally viewable by operators and engineers.
Graphic steam map with current operating point view for extraction and admission.
Configurable tag names to easily identify connections.
Internal “Turbine Simulator” for off-line training and advance .testing before system changes.
Improved Communications.

Ethernet communications for connectivity to plant DCS, service tools and RemoteView operator control panels.
Distributed I/O (LinkNet-HT) enables expanded control of additional turbine package equipment startup and control.
CANOpen actuator connectivity for Woodward VariStroke actuators and DSLC-II power management networks.
Intelligent / Adaptive Control Algorithms.

Next generation advance load rejection performance:
3 critical speed avoidance bands.
Reverse rotation sensing and alarm.
OptiTune adaptive PID technology for optimum set-up of turbine performance.
Acceleration PID that limits overshoots for a stable and efficient plant startup.
High speed data logs monitoring turbine operation and stress including run time and first out trip information.
Vibration monitoring for protection and control (Sensor kit 8928-7482).
Improved Service/User Tools.

Cyber compliant password enabled logins:
RemoteView (8200-1312) program enables virtual monitor and control from a remote workstation or mobile device.
Control Assistant service tool enabled to easily configure, save, compare and view settings and data logs.
Drop-in upgrade for existing 505 legacy steam turbine governor controls with item number 9907-167.

Use our convenient old 505E to new 505XT retrofit wiring kit 5404-1801.
