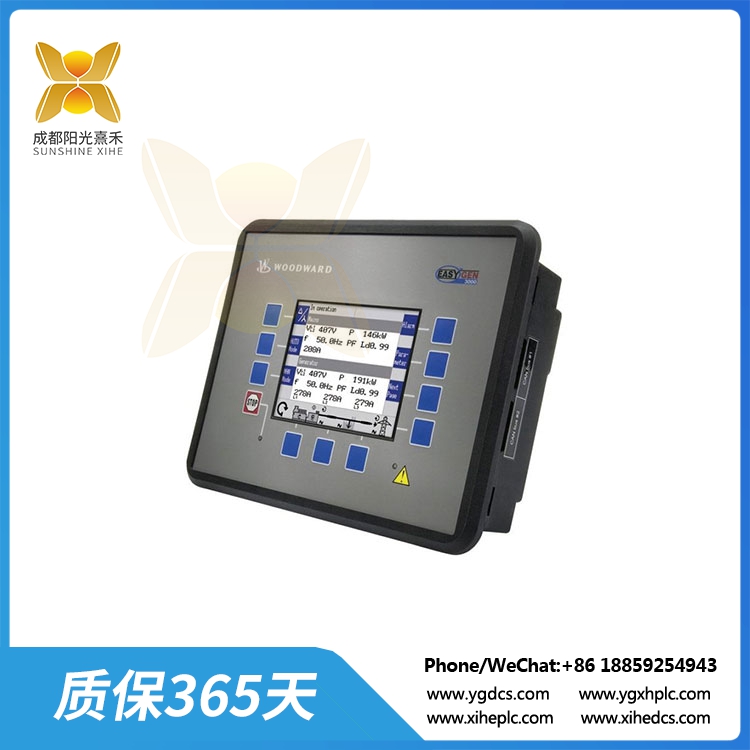

8440-1934 控制-EASYGEN-3500-5/P1

Description

8440-1934 控制-EASYGEN-3500-5/P1

8440-1934将完整的发动机发电机控制和保护与先进的点对点并联功能和创新功能结合在一起，具有强大的吸引力和用户友好的软件包。

常见的easYgen-35400应用:
应急备用:数据中心、医院、商业和工业设施
分布式发电(DG):用于峰值需求响应的公用事业可调度电力
岛屿主要电力:石油和天然气勘探，海洋，偏远村庄，租赁/移动
微电网:军队，政府，零净社区，大学
公用事业并网:调峰、限电
热电联产(CHP):废水处理、沼气生产/遏制
开关设备升级:发电机控制改造，以增加负载共享/并联能力

8440-1934功能和好处
所有8440-1934系列型号包括这些标准功能:
真正的均方根电压和电流传感(电源，母线和市电)，以减少对谐波的敏感性
CAN网络通信/控制引擎ECU(支持标准SAE-J1939协议和几个专有引擎OEM协议)
串行Modbus RTU(从站)通信用于SCADA公告和外部控制
使用Woodward ToolKit服务工具通过PC/笔记本进行配置
与RP-3500远程面板连接，通过CANopen协议，在高达250米的距离上完成报信，控制和配置easYgen-3500控制器
合规机构/海事*认证:CE, UL/cUL, CSA, BDEW, ABS，劳氏船级社
(*请参阅海运包裹以获得进一步批准)

8440-1934系列提供:
AMF(自动电源故障)检测，解耦和紧急运行与死母线关闭
自动同步:相位匹配，正/负滑移频率，助跑(死区)并联
断路器合/开控制:仅GCB, GCB和MCB (ATS功能)，或外部(无)控制
比例负载共享(同步或下垂)多达32个发电机组，无论个体大小
基载、进出口控制、不对称加载(通过外部基载输入)
自动负载依赖启动/停止，提高发电系统效率
异步(感应)发电机控制
发动机和发电机保护功能，具有完全可编程设置

8440-1934

8440-1934 控制-EASYGEN-3500-5/P1

The 8440-1934 combines complete engine-generator control and protection with advanced, peer-to-peer paralleling functionality and innovative features in a robust, attractive and user-friendly package.

Common easYgen-35400 applications:
Emergency standby: data centers, hospitals, commercial and industrial facilities
Distributed Generation (DG): utility-dispatchable power for peak demand response
Islanded prime-power: oil & gas exploration, marine, remote villages, rental/mobile
Microgrid: military, government, net-zero communities, universities
Utility paralleling: peak shaving, demand curtailment
Cogeneration (CHP): wastewater treatment, biogas production/containment
Switchgear upgrades: generator control retrofit to add load sharing/paralleling capability

8440-1934 Features & Benefits
All 8440-1934 Series models include these standard features:
True RMS voltage and current sensing (gen, bus and mains) for reduced susceptibility to harmonics
CAN network communication/control to engine ECU (standard SAE-J1939 protocol and several proprietary engine OEM protocols are supported)
Serial Modbus RTU (slave) communication for SCADA annunciation and external control
Configuration via PC/laptop with Woodward ToolKit service tool
Connectivity with the RP-3500 Remote Panel for complete annunciation, control and configuration of the easYgen-3500 controller, over CANopen protocol at up to 250m distance
Compliance agency/marine* approvals: CE, UL/cUL, CSA, BDEW, ABS, Lloyd’s Register
(* see marine package for further approvals)

The 8440-1934 Series provide:
AMF (automatic mains failure) detection, decoupling and emergency run with dead bus close
Automatic synchronization: phase-match, positive/negative slip-frequency, run-up (dead field) paralleling
Circuit breaker close/open control: GCB only, GCB and MCB (ATS function), or external (no) control
Proportional load sharing (isochronous or droop) of up to 32 gensets, regardless of individual size
Base loading, import/export control, asymmetrical loading (through external base load input)
Automatic load dependent start/stop for improved generation system efficiency
Asynchronous (induction) generator control
Engine and generator protection functions, with fully programmable settings
