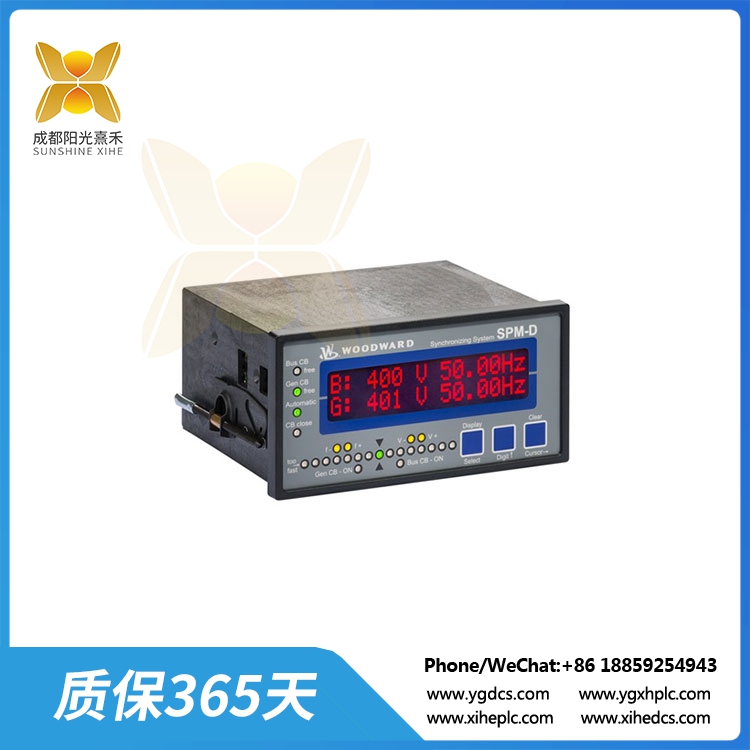

8840-2167-SPM-D2-10 2/3相交流发电机组

Description

8840-2167-SPM-D2-10 2/3相交流发电机组

SPM-D2-10系列是基于微处理器的同步器，设计用于配备Woodward或其他兼容的速度控制和自动电压调节器的两相或三相交流发电机。SPM-D2-10同步器提供。

优点:兼容广泛的调速器，自动电压调节器和断路器
真正的均方根电压传感，减少对谐波的敏感性
前端同步镜易于调试
人机界面编程和USB连接到Woodward ToolKit服务工具
插入式替换现有的SPM-D10同步器

特点:
一个或两个断路器同步
相位匹配或滑移频率同步与电压匹配
三个位置/模拟输出速度和电压偏置信号
断路器时间补偿
分立输入操作模式选择
两行液晶文本显示操作，报警指示，和测量值的可视化
LED同步示波器
提供广泛的电源选择
PC和前面板可配置

包装:3基础模型
SPM-D2-10:提供1相/ 2线电压测量，可选择模拟或离散偏置信号和宽范围电源
SPM-D2-10/YB:提供三相/ 4线电压测量，具有离散偏置信号，可选宽范围电源
SPM-D2-10/PSY5:提供具有离散偏置信号的1相/ 2线电压测量，可选宽范围电源和2组可切换参数集。

8840-2167-SPM-D2-10

8840-2167-SPM-D2-10 2/3相交流发电机组

The SPM-D2-10 series are microprocessor-based synchronizers designed for use on two or three phase AC generators equipped with Woodward or other compatible speed controls and automatic voltage regulators. The SPM-D2-10 synchronizers provide.

Benefits:
Compatible with a wide range of governors, automatic voltage regulators, and circuit breakers
True RMS voltage sensing for reduced susceptibility to harmonics
Front face synchroscope for easy commissioning
HMI programming and USB connectivity to Woodward ToolKit service tool
Drop-in replacement for existing SPM-D10 synchronizers

Features:
Synchronization for one or two circuit breakers
Phase match or slip frequency synchronization with voltage matching
Three position/analog outputs for speed and voltage bias signals
Circuit breaker time compensation
Discrete inputs for operating mode selection
Two-line liquid crystal text display for operation, alarm indication, and visualization of measuring values
LED synchroscope
Wide range power supply option available
PC and front panel configurable

Packages:
3 Base Models
SPM-D2-10: provides 1-phase / 2-wire voltage measurement with options for analog or discrete biasing signals and wide range power supply
SPM-D2-10/YB: provides 3-phase / 4-wire voltage measurement with discrete biasing signals an option for wide range power supply
SPM-D2-10/PSY5: provides 1-phase / 2-wire voltage measurement with discrete biasing signals, option for wide range power supply and 2 sets of switchable parameter set.
