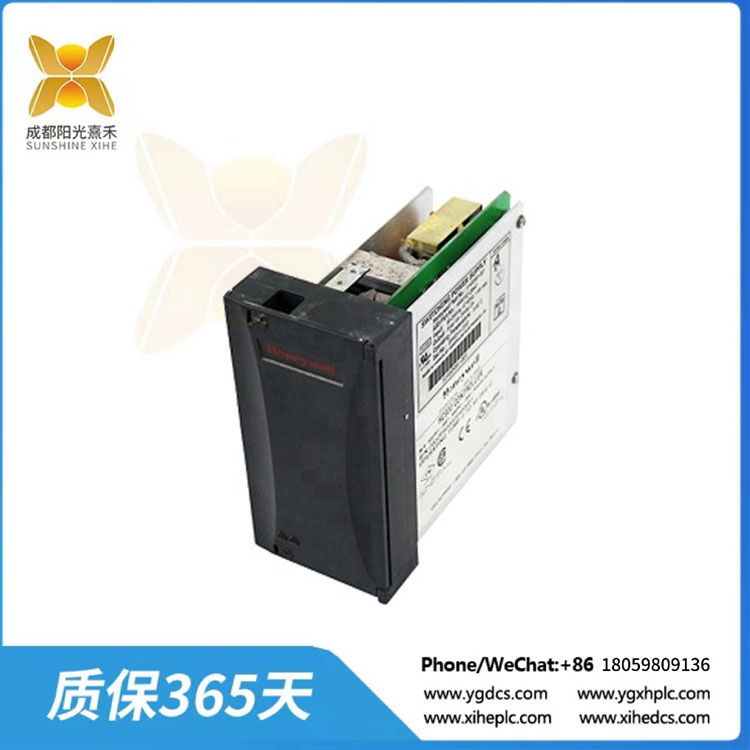

900P01-0301 120/240VAC电源

Description

900P01-0301 120/240VAC电源

制造商:霍尼韦尔

产品编号:900P01-0301

产品类型:120/240VAC电源

电压范围:90 ~ 264v AC, 47 ~ 63hz

电流:1.4 A最大连续

冲击电流:40安培峰值在240 V交流120毫秒

输入额定值:130va

输出功率:58W

保险丝:内部不可更换的保险丝。

电源保持时间:20毫秒@ 115V交流，60HZ最大负载

接线:螺丝端子，0.3 mm2 ~ 3.3 mm2 (#12-22AWG)

测试插孔:5v DC, 24v DC

尺寸:137mm高× 72.6mm宽5.4“高× 2.86”宽

重量:0.82 kg

运输重量:2kg

900P01-0301

900P01-0301 120/240VAC电源

Manufacturer: Honeywell

Product Number: 900P01-0301

Product Type: 120/240VAC Power Supply

Voltage: 90 to 264 V AC, 47 to 63 Hz

Current: 1.4 A Max continuous

Inrush Current: 40 Amps peak-to-peak for 120 ms at 240 V AC

Input rating: 130 VA

Output rating: 58W

Fuse: Internal non-replaceable fuse.

Power Supply Hold up time: 20milliseconds @ 115V AC, 60HZ maximum Load

Wiring: Screw type terminals, 0.3 mm2 to 3.3 mm2 (#12-22AWG)

Test jacks: 5 V DC, 24 V DC

Dimensions: 137mm H x 72.6mm W 5.4” H* x 2.86” W

Weight: 0.82 kg

Shipping Weight: 2 kg
