9200-06-01-10-00 应定期对传感器进行检查和维护

Description

9200-06-01-10-00 应定期对传感器进行检查和维护

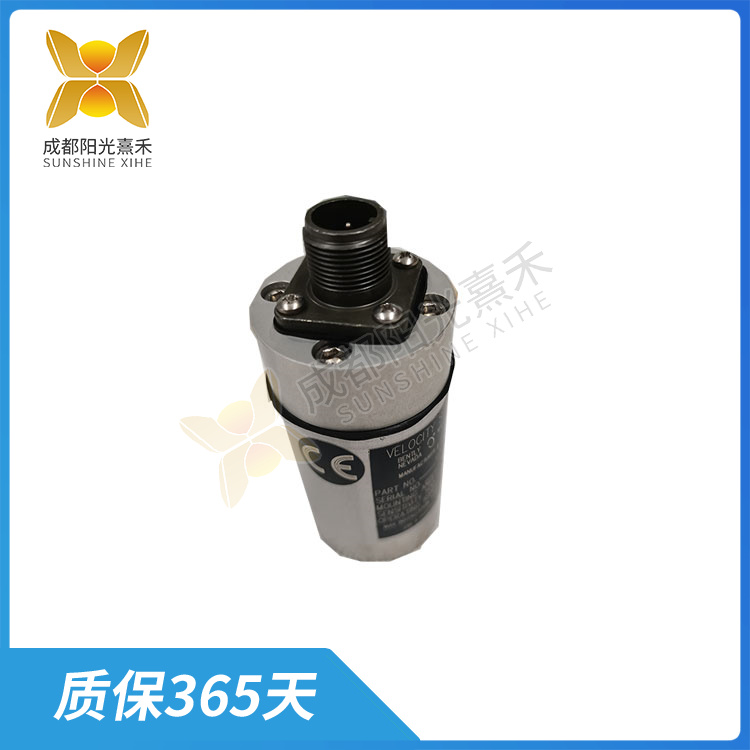

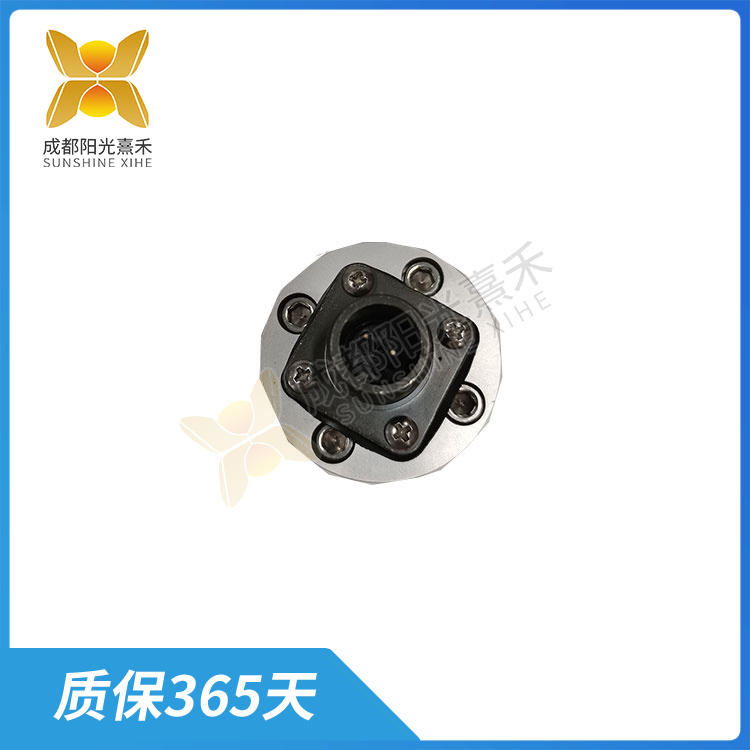

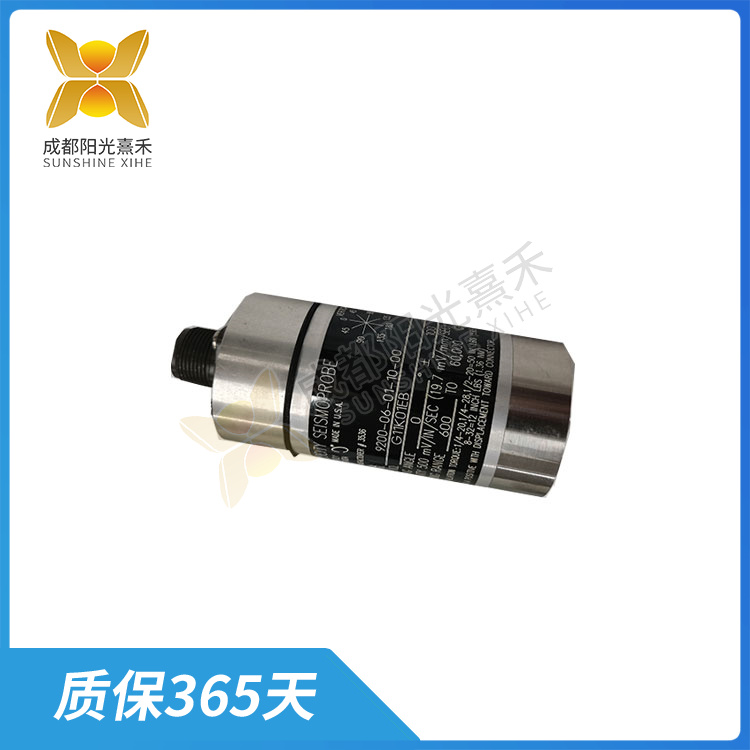

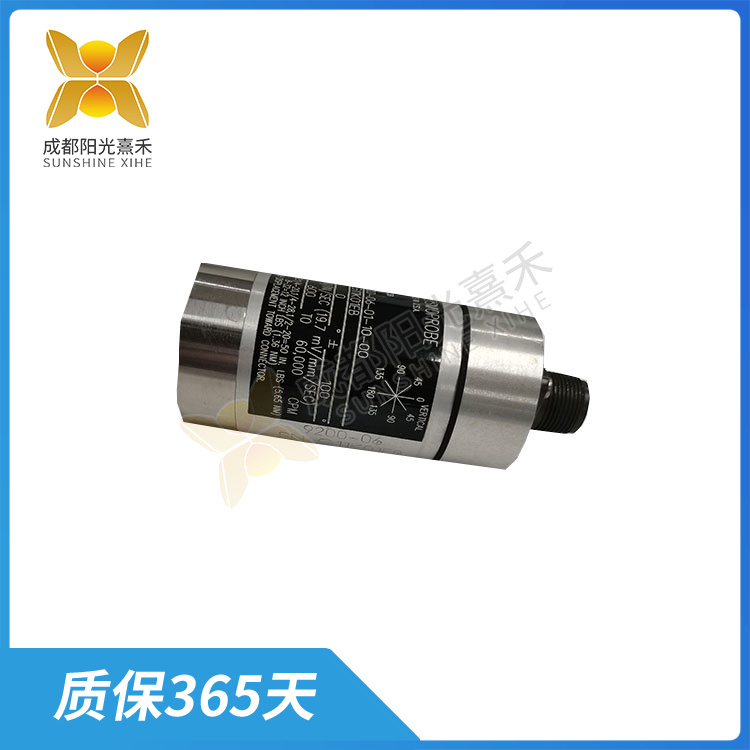

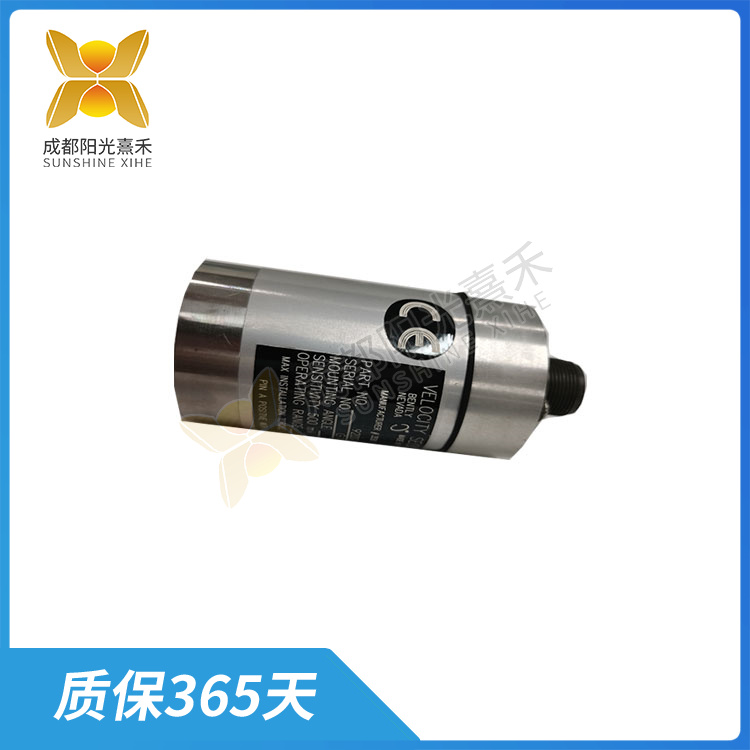

汽轮机振动速度传感器是用于测量汽轮机振动速度的传感器。9200-06-01-10-00可以测量汽轮机轴的绝对振动速度，并将其转换为电信号，以供控制系统使用。

汽轮机振动速度传感器通常采用磁电感应原理，利用磁路系统、惯性质量、弹簧尼等部分组成。在工作时，将传感器安装在机器上，在机器振动时，在传感器工作频率范围内，线圈与磁铁相对运动、切割磁力线，在线圈内产生感应电压，该电压值正比于振动速度值。

汽轮机振动速度传感器具有以下特点：

输出信号和振动速度成正比，可以兼顾各个频率段的振动测量领域。
传感器设计中取消了有摩擦的活动元件，因此灵活性好，可以测量微小的振动（0.01mm）。

传感器有一定的抗横向振动能力（不大于10g峰值）。
外壳采用不锈钢壳体激光焊接工艺，防护等级可达 IP65，防止生锈。
在使用汽轮机振动速度传感器时，需要注意以下几点：

传感器的安装位置应选择在靠近轴承箱或底座的支撑位置上，以获得更好的测量效果。

在安装传感器之前，应先测量汽轮机的振动速度，并确定测量位置和测量方向。

在使用过程中，应定期对传感器进行检查和维护，以确保其正常工作和长期稳定性。

传感器应与控制系统连接，以便将测量数据传输到控制系统进行分析和处理。

总之，9200-06-01-10-00 汽轮机振动速度传感器是测量汽轮机振动速度的重要工具，具有测量准确、稳定性好、可靠性高等优点。它可以为汽轮机的安全运行和故障诊断提供重要依据。

9200-06-01-10-00 应定期对传感器进行检查和维护

Turbine vibration speed sensor is used to measure turbine vibration speed sensor. The 9200-06-01-10-00 measures the absolute vibration speed of the turbine shaft and converts it into an electrical signal for use by the control system.

Turbine vibration velocity sensor usually adopts the principle of magnetoelectric induction, which is composed of magnetic circuit system, inertial mass, spring Ni and so on. When working, the sensor is installed on the machine, when the machine vibrates, in the sensor operating frequency range, the coil and the magnet relative movement, cutting the magnetic field line, the induction voltage in the coil, the voltage value is proportional to the vibration speed value.

Turbine vibration speed sensor has the following characteristics:

The output signal is proportional to the vibration speed, which can take into account the vibration measurement fields of various frequency segments.
The sensor design eliminates the friction of moving elements, so it is flexible and can measure small vibrations (0.01mm).

The sensor has a certain resistance to transverse vibration (no more than 10g peak).
The shell adopts the laser welding process of stainless steel shell, and the protection grade can reach IP65 to prevent rust.
When using the turbine vibration speed sensor, the following points need to be noted:

The installation position of the sensor should be selected in the support position near the bearing box or base to obtain better measurement results.

Before installing the sensor, the vibration speed of the turbine should be measured, and the measurement position and measurement direction should be determined.

During use, the sensor should be checked and maintained regularly to ensure its normal operation and long-term stability.

The sensor shall be connected to the control system in order to transmit the measurement data to the control system for analysis and processing.

In short, the 9200-06-01-10-00 turbine vibration speed sensor is an important tool for measuring turbine vibration speed, which has the advantages of accurate measurement, good stability and high reliability. It can provide important basis for the safe operation and fault diagnosis of steam turbine.
