9907-1198 压力转换器

Description

9907-1198 压力转换器

9907-1198 压力转换器

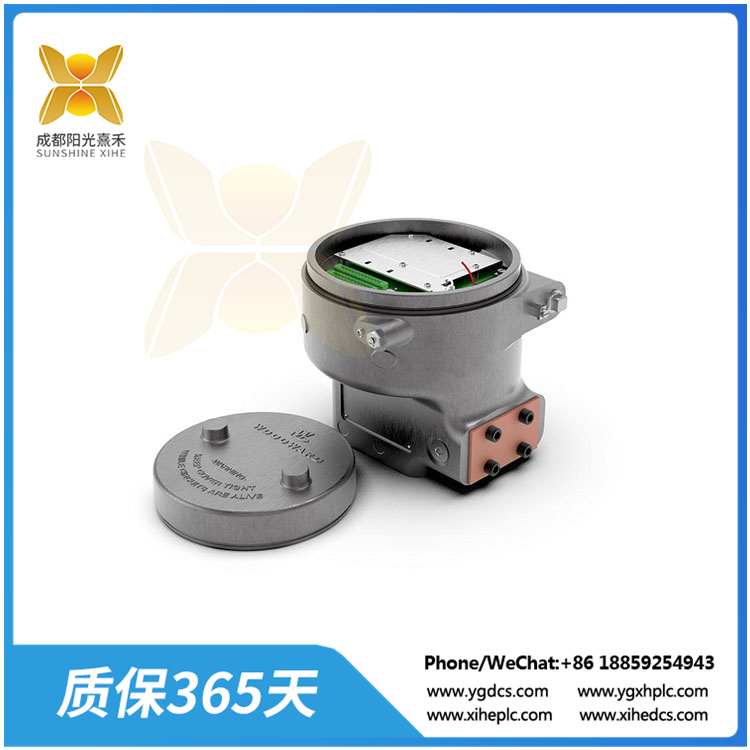

Woodward’s second generation current-pressure converter (CPC-1) 25 bar, Zone 2, simplex version with enhanced dynamic characteristics is an electro-hydraulic pressure regulation control valve for positioning valve servomechanism/actuators in single-acting steam turbines. The CPC-1I addresses one of the industry’s number one reliability issues with oil contamination that affects equipment uptime and performance.

The CPC-I accepts the 4-20 mA pressure demand signal and precisely controls the oil pressure to precisely position the single-acting turbine control valve. Accurate and stable steam valve control is directly related to turbine speed and load control
The improvement of the system and the reduction of mechanical wear of the system.

Features:
Oil pollution resistance (ISO20/16)
Precise fluid pressure control
Stable and linear valve [] control
Includes valve linearization table (full range %3C0.2%)
Redundant inputs/sensors for critical applications
Accepts the signal from the redundant controller
Redundant (dual)CPCs(master/slave) function
Standard mounting and hydraulic connections
Self-cleaning valve algorithm
Status and health indicators (pressure sensor health, input demand signal health, internal unit health, input power quality)
Control pressure reading
Software service tools with trends
North American Hazardous Site certification
Comply with the applicable CE Directive – ATEX, machinery, PED and EMC
