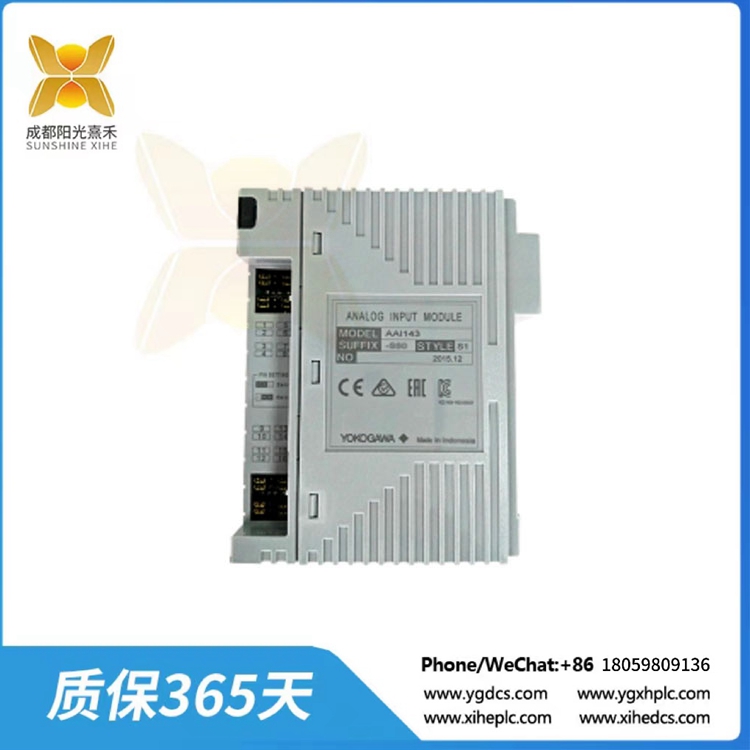

AAI143-H00A4S00 模拟输入模块

Description

AAI143-H00A4S00 模拟输入模块

制造商:横河

产品编号: AAI143-H00 / A4S00

产品类型:模拟输入模块

输入通道数:16，隔离

输入信号:4 ~ 20ma

允许输入电流:24ma

耐压:输入与系统之间:1500v AC，持续1分钟

输入电阻

开机:270 ?(20 mA)至350 ?马(4)

关机:500k ?或更大

精度:±16µA

数据更新周期:10ms

发射机电源:19.0 V或更高(20ma) 25.5 V或更低(0ma)(输出电流限制:25ma)

2线或4线发射器的设置:每个通道通过设置引脚

环境温度变化引起的漂移:±16µA/10°C

最大电流消耗:230ma (5v DC)， 540ma (24v DC)

外部通信:压钳端子，MIL连接器电缆，专用电缆(KS1)

H:带数字通信(HART协议)

0

0:基本型

A4S00:带压夹端子座

重量:0.3 Kg

运输重量:1.5 Kg

AAI143-H00A4S00

AAI143-H00A4S00 模拟输入模块

Manufacturer :Yokogawa

Product No. : AAI143-H00/A4S00

Product Type : Analog Input Module

Number of input channels : 16, isolated

Input signal : 4 to 20 mA

Allowable input current : 24 mA

Withstanding voltage : Between input and system: 1500 V AC, for 1 minute

Input resistance

Power ON : 270 ? (20 mA) to 350 ? (4 mA)

Power OFF : 500 k? or larger

Accuracy : ±16 µA

Data update period : 10 ms

Transmitter power supply : 19.0 V or higher (at 20 mA) 25.5 V or less (at 0 mA) (output current limit: 25 mA)

Setting of 2-wire or 4-wire transmitter : For each channel by setting pin

Drift due to ambient temperature change : ±16 µA/10 °C

Maximum current consumption : 230 mA (5 V DC), 540 mA (24 V DC)

External communication : Pressure clamp terminal, MIL connector cable, dedicated cable (KS1)

H : With digital communication (HART protocol)

0

0 : Basic type

A4S00 : With Pressure Clamp Terminal Block

Weight : 0.3 Kg

Shipping Weight : 1.5 Kg
