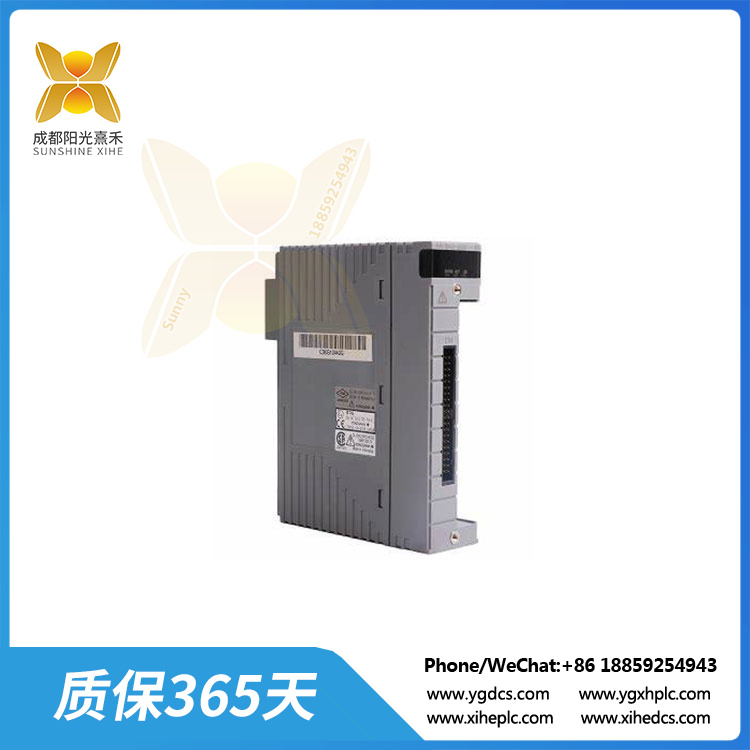

AAI543-S50 模拟量输出模块

Description

AAI543-S50 模拟量输出模块

AAI543-S50是一款来自日本横河（YOKOGAWA）的模拟量输出模块。这款模块具有简单通用的结构，适用于各种工厂规模和行业。其主要特点是具有16个通道，输出信号范围为4至20mA，并具备隔离功能。

AAI543-S50模块可以安装在多种硬件规格上，包括ESB总线的本地节点单元（如ANB10S和ANB10D）、ER总线的远程节点单元（如ANR10S和ANR10D），以及用于FIO的紧凑型现场控制单元（如AFF50S、AFF50D、AFV10S和AFV10D）。

在冗余配置中，AAI543-S50模块提供了多种选项。例如，它可以选择基本型配置，或者选择符合ISA标准的G3选项。此外，该模块还提供了防爆标准和非防爆标准的切换响应选项，以满足不同工厂的安全需求。

此外，AAI543-S50模块还配备了发生功能用、测量功能用以及24V直流电源用的端子，为用户提供了更多的便利性和灵活性。

总的来说，AAI543-S50是一款功能强大、灵活多样的模拟量输出模块，适用于多种工业自动化和精确控制的应用场景。如果需要更详细的技术规格或应用信息，建议查阅横河公司的官方文档或联系其技术支持部门。

AAI543-S50 模拟量输出模块

The AAI543-S50 is an analog output module from YOKOGAWA, Japan. This module has a simple and versatile construction for a variety of plant sizes and industries. Its main feature is that it has 16 channels, the output signal range is 4 to 20mA, and has the isolation function.

The AAI543-S50 module can be installed on a variety of hardware specifications, including local node units for the ESB bus (such as ANB10S and ANB10D), remote node units for the ER bus (such as ANR10S and ANR10D), and more. And compact field control units for FIO such as AFF50S, AFF50D, AFV10S and AFV10D.

In a redundant configuration, the AAI543-S50 module offers a variety of options. For example, it can choose a basic configuration, or choose an ISA-compliant G3 option. In addition, the module provides switching response options for explosion-proof standards and non-explosion-proof standards to meet the safety needs of different plants.

In addition, the AAI543-S50 module is also equipped with terminals for generation function, measurement function and 24V DC power supply, providing users with more convenience and flexibility.

Overall, the AAI543-S50 is a powerful and flexible analog output module suitable for a variety of industrial automation and precision control applications. For more detailed technical specifications or application information, it is recommended to consult Yokogawa’s official documentation or contact its technical support department.
