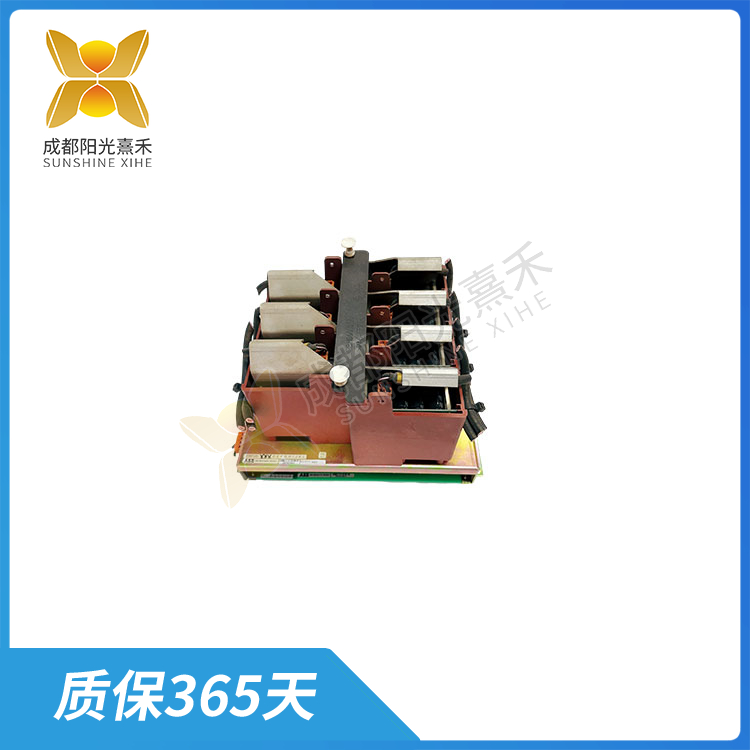

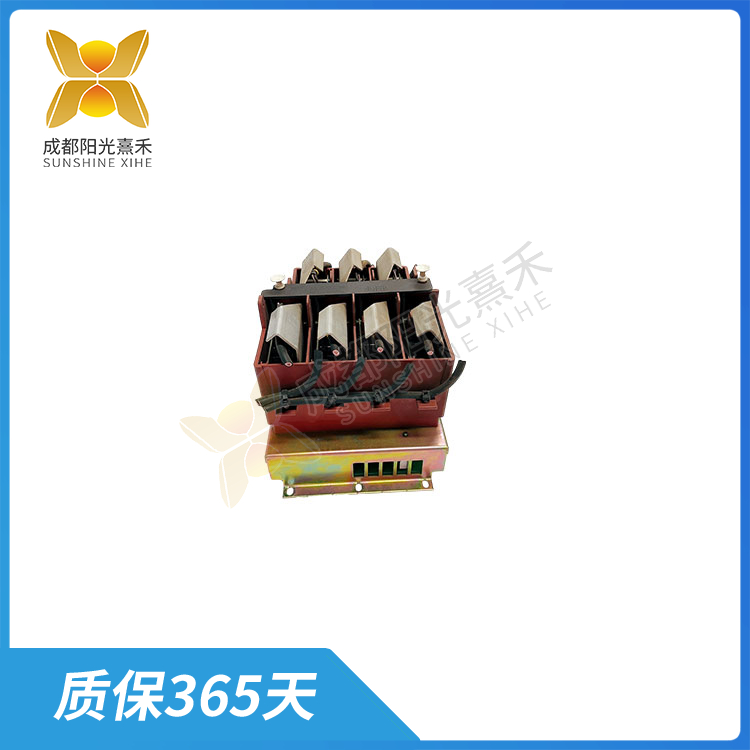

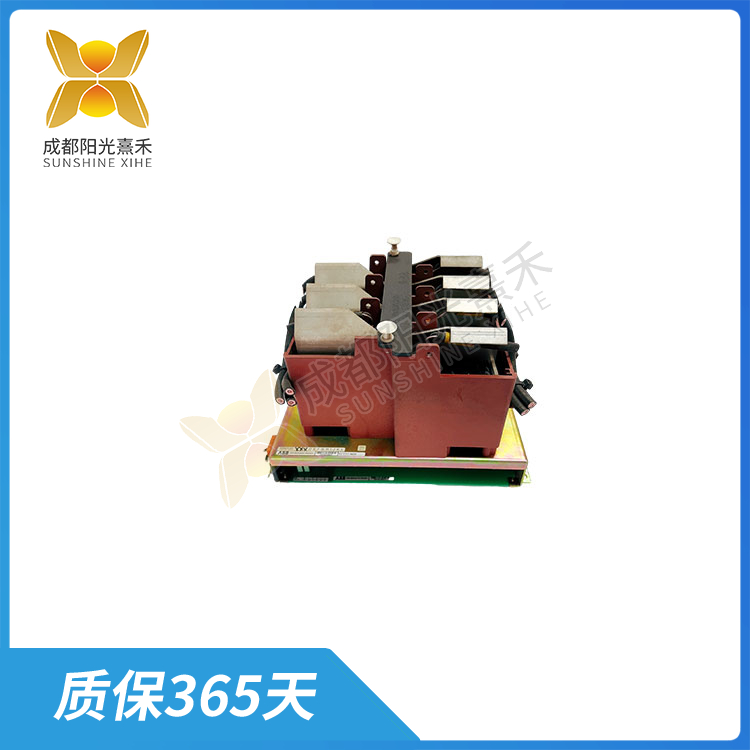

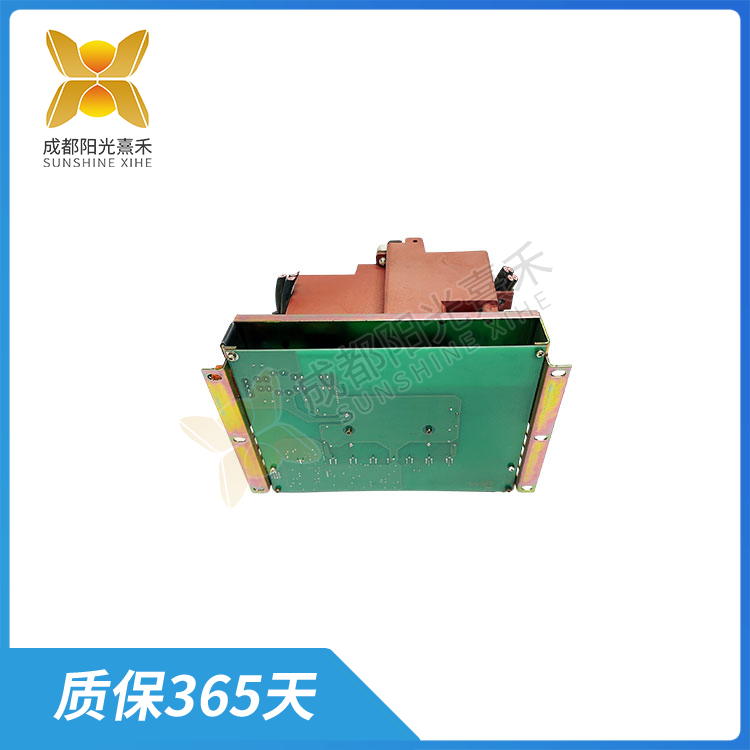

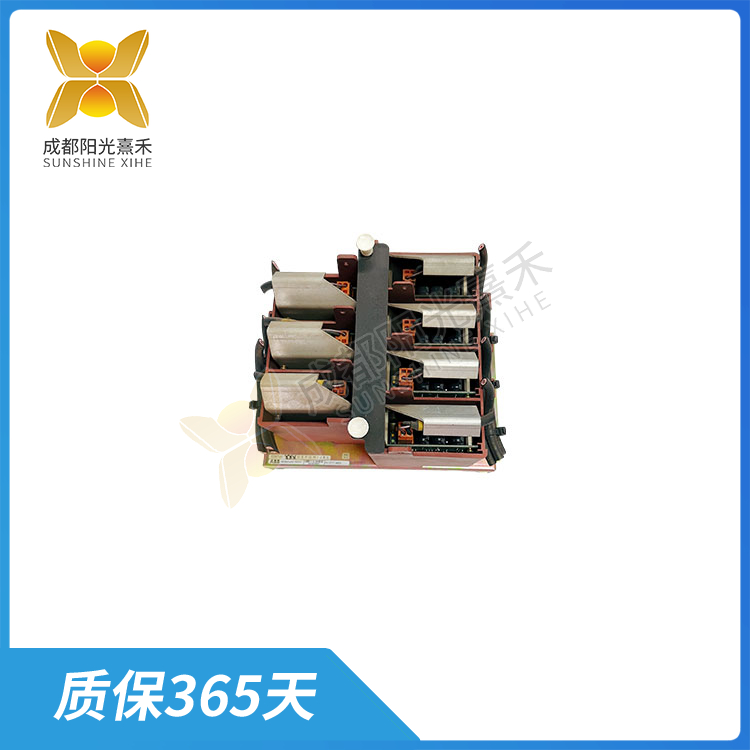

ABB-KUC711AE101-3BHB004661R0101 励磁控制器通常由控制单元、功率单元和测量单元等组成

Description

ABB-KUC711AE101-3BHB004661R0101 励磁控制器通常由控制单元、功率单元和测量单元等组成

励磁控制器是电力系统中的一个重要组件，ABB-KUC711AE101-3BHB004661R0101主要负责对发电机的励磁系统进行控制。励磁系统的主要作用是向发电机的励磁绕组提供直流电流，以建立并维持发电机的端电压，并调节无功功率的输出。

励磁控制器ABB-KUC711AE101-3BHB004661R0101的主要功能包括：

电压和无功功率控制：通过调节励磁电流的大小，励磁控制器可以控制发电机的端电压和无功功率输出，从而维持电力系统的稳定运行。

稳定性增强：励磁控制器可以通过快速响应系统的变化，提供必要的励磁电流，以增强电力系统的稳定性。

故障保护：在电力系统发生故障时，励磁控制器可以迅速响应，通过减小或切断励磁电流，以防止发电机受到损害。

励磁控制器通常由控制单元、功率单元和测量单元等组成。控制单元负责接收来自电力系统的信号，并根据预设的控制策略计算出需要的励磁电流大小。功率单元则负责根据控制单元的计算结果，向励磁绕组提供相应的直流电流。测量单元则负责实时监测电力系统的运行状态，为控制单元提供必要的反馈信号。

随着现代电力电子技术的发展，励磁控制器的性能和功能也在不断提升。例如，一些先进的励磁控制器采用了数字化控制技术，ABB-KUC711AE101-3BHB004661R0101具有更高的控制精度和更快的响应速度。同时，一些励磁控制器还集成了故障诊断和预警功能，可以及时发现并处理潜在的故障，提高电力系统的可靠性。

ABB-KUC711AE101-3BHB004661R0101 励磁控制器通常由控制单元、功率单元和测量单元等组成

Excitation controller is an important component in the power system, ABB-KUC711AE101-3BHB004661R0101 is mainly responsible for controlling the excitation system of the generator. The main function of the excitation system is to provide direct current to the excitation winding of the generator to establish and maintain the terminal voltage of the generator and regulate the output of reactive power.

The main functions of the excitation controller ABB-KUC711AE101-3BHB004661R0101 include:

Voltage and reactive power control: By adjusting the size of the excitation current, the excitation controller can control the generator terminal voltage and reactive power output, so as to maintain the stable operation of the power system.

Stability enhancement: The excitation controller can enhance the stability of the power system by quickly responding to changes in the system and providing the necessary excitation current.

Fault protection: In the event of a failure of the power system, the excitation controller can respond quickly to prevent damage to the generator by reducing or cutting off the excitation current.

Excitation controller is usually composed of control unit, power unit and measurement unit. The control unit is responsible for receiving the signal from the power system and calculating the required excitation current according to the preset control strategy. The power unit is responsible for providing the corresponding DC current to the excitation windings according to the calculation results of the control unit. The measuring unit is responsible for monitoring the operating status of the power system in real time and providing the necessary feedback signals for the control unit.

With the development of modern power electronic technology, the performance and function of excitation controller are also improving. For example, some advanced excitation controllers use digital control technology, ABB-KUC711AE101-3BHB004661R0101 has higher control accuracy and faster response speed. At the same time, some excitation controllers also integrate fault diagnosis and early warning functions, which can find and deal with potential faults in time, and improve the reliability of the power system.
