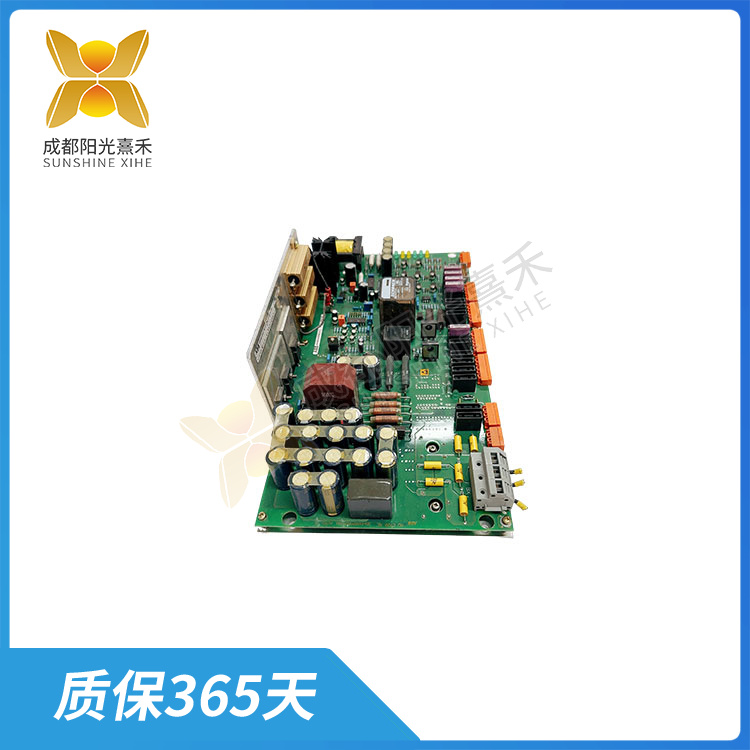

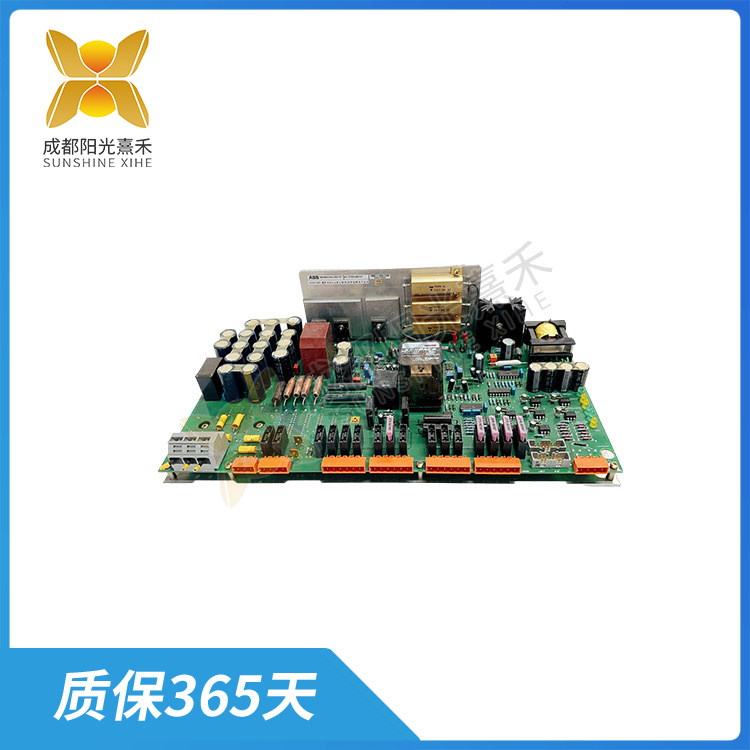

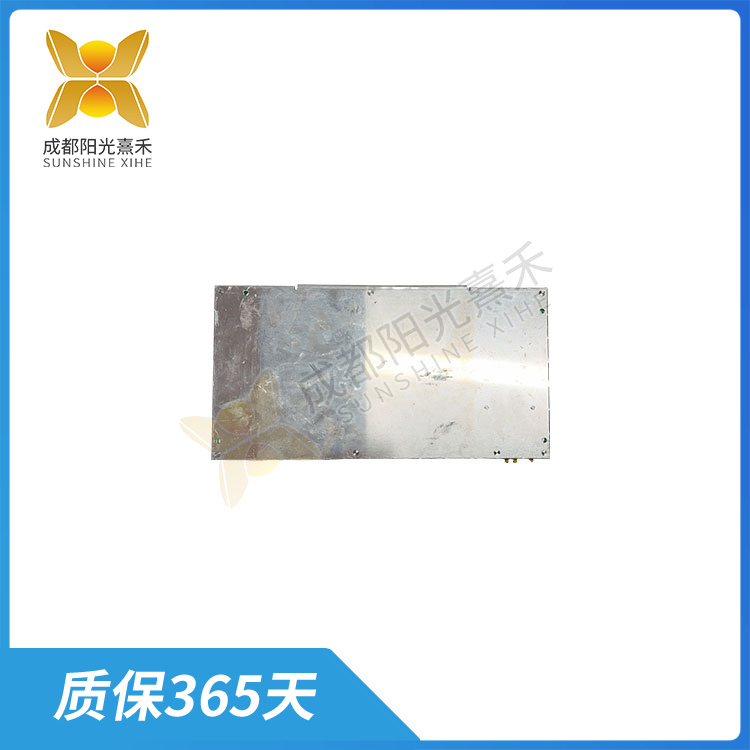

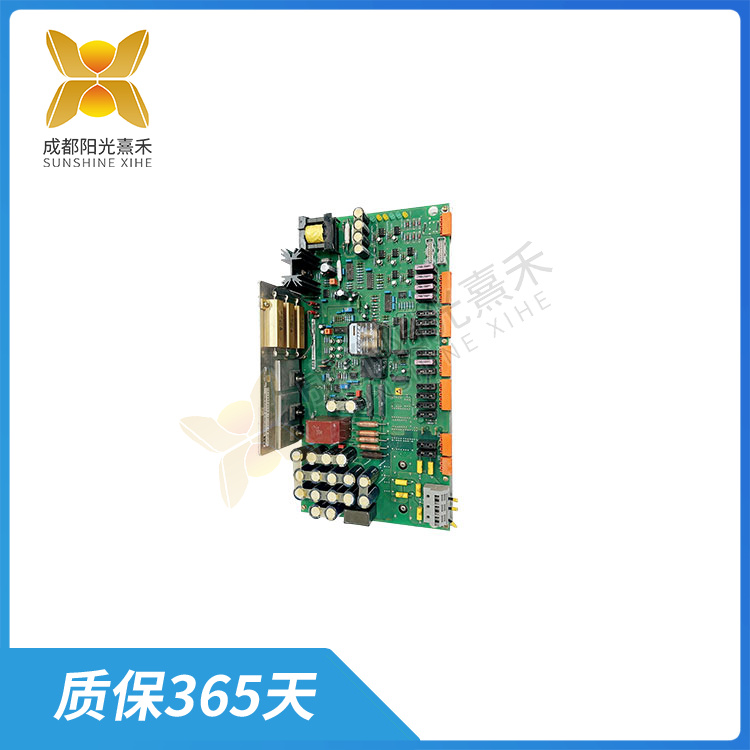

ABB-KUC720AE01-3BHB003431R0101-3BHB000652R0101 励磁控制器还通常具备一些保护功能，如过流保护、过压保护、欠压保护等

Description

ABB-KUC720AE01-3BHB003431R0101-3BHB000652R0101 励磁控制器还通常具备一些保护功能，如过流保护、过压保护、欠压保护等

励磁控制器的工作原理主要涉及到发电机励磁系统的控制。ABB-KUC720AE01-3BHB003431R0101-3BHB000652R0101励磁系统的作用是为发电机的励磁绕组提供直流电流，从而建立并维持发电机的端电压，并调节其无功功率输出。励磁控制器则负责控制这个励磁系统的运行。

具体来说，ABB-KUC720AE01-3BHB003431R0101-3BHB000652R0101励磁控制器的工作原理可以分为以下几个步骤：

信号检测：励磁控制器首先通过传感器等装置检测发电机的运行状态，包括端电压、电流、有功功率、无功功率等参数。

信号处理：检测到的信号被送入励磁控制器的控制单元进行处理。控制单元会根据预设的控制策略和算法，对这些信号进行分析和计算，从而确定当前需要的励磁电流大小和方向。

生成控制信号：根据信号处理的结果，控制单元会生成相应的控制信号。这个控制信号通常是一个电压或电流信号，用于指示功率单元如何调节励磁电流。

功率放大与输出：功率单元接收到控制信号后，会对其进行放大，以产生足够的功率来驱动励磁绕组。这样，励磁绕组就会得到相应的直流电流，从而建立起发电机的端电压，并调节其无功功率输出。

反馈与调节：在励磁系统运行过程中，励磁控制器会不断检测发电机的运行状态，并根据反馈信号对励磁电流进行微调，以确保发电机始终运行在最佳状态。

此外，励磁控制器还通常具备一些保护功能，如过流保护、过压保护、欠压保护等，以确保在电力系统发生故障时，励磁控制器能够迅速响应并采取相应的保护措施，防止发电机受到损害。

总的来说，ABB-KUC720AE01-3BHB003431R0101-3BHB000652R0101励磁控制器的工作原理是通过检测、计算、控制、反馈等步骤，实现对发电机励磁系统的精确控制，从而维持电力系统的稳定运行并优化其性能。

ABB-KUC720AE01-3BHB003431R0101-3BHB000652R0101 励磁控制器还通常具备一些保护功能，如过流保护、过压保护、欠压保护等

The working principle of excitation controller mainly involves the control of generator excitation system. ABB-KUC720AE01-3BHB003431R0101-3BHB000652R0101 The role of the excitation system is to provide direct current to the excitation windings of the generator, thereby establishing and maintaining the terminal voltage of the generator and regulating its reactive power output. The excitation controller is responsible for controlling the operation of the excitation system.

Specifically, the working principle of ABB-KUC720AE01-3BHB003431R0101-3BHB000652R0101 excitation controller can be divided into the following steps:

Signal detection: The excitation controller first detects the operating status of the generator through sensors and other devices, including terminal voltage, current, active power, reactive power and other parameters.

Signal processing: The detected signal is sent to the control unit of the excitation controller for processing. The control unit will analyze and calculate these signals according to the preset control strategy and algorithm, so as to determine the current required excitation current size and direction.

Generate control signal: According to the result of signal processing, the control unit will generate the corresponding control signal. This control signal is usually a voltage or current signal that indicates how the power unit regulates the excitation current.

Power amplification and output: After receiving the control signal, the power unit amplifies it to generate enough power to drive the excitation winding. In this way, the field winding will get the corresponding DC current, thus establishing the generator’s terminal voltage and regulating its reactive power output.

Feedback and regulation: During the operation of the excitation system, the excitation controller will constantly detect the operating state of the generator and fine-tune the excitation current according to the feedback signal to ensure that the generator is always running in the best state.

In addition, the excitation controller usually has some protection functions, such as over-current protection, over-voltage protection, under-voltage protection, etc., to ensure that when the power system fails, the excitation controller can respond quickly and take appropriate protective measures to prevent damage to the generator.

In general, the working principle of ABB-KUC720AE01-3BHB003431R0101-3BHB000652R0101 excitation controller is to achieve accurate control of the generator excitation system through detection, calculation, control, feedback and other steps, so as to maintain the stable operation of the power system and optimize its performance.
