ACC-8E 2 轴数模 (DAC) 分线接线板

Description

ACC-8E 2 轴数模 (DAC) 分线接线板

部件编号:3A0-602469-10X

特点:
4个18位D/A转换器
模拟输出的范围为-10V至+10V
放大器使能输出通过干接点继电器
用户可配置跳线为常开，常闭，下沉或源
用于PMAC2系列控制器的Delta Tau ACC-8E 2轴数模转换(DAC)分线端子块板为两个轴提供带模拟输入放大器的引脚。放大器可以是速度模式，扭矩模式，或正弦输入模式(两个模拟命令);或者以上任何一种混合。

ac – 8e板有一个单一的平面电缆连接到PMAC2(100针电缆)。所有进出机器的主要信号(DAC输出，标志，编码器输入)都可以通过模块化可移动终端块连接。另外，许多信号可以通过平板电缆通过板载IDC头连接到机器上。

ACC-8E

ACC-8E 2 轴数模 (DAC) 分线接线板

Part Number: 3A0-602469-10X

Features:
Four 18-bit D/A Converters
Analog Outputs have a Range of -10V to +10V
Amplifier-Enable Outputs are Through Dry-Contact Relays
User Configurable with Jumpers for Normally Open, Normally Closed, Sinking or Sourcing

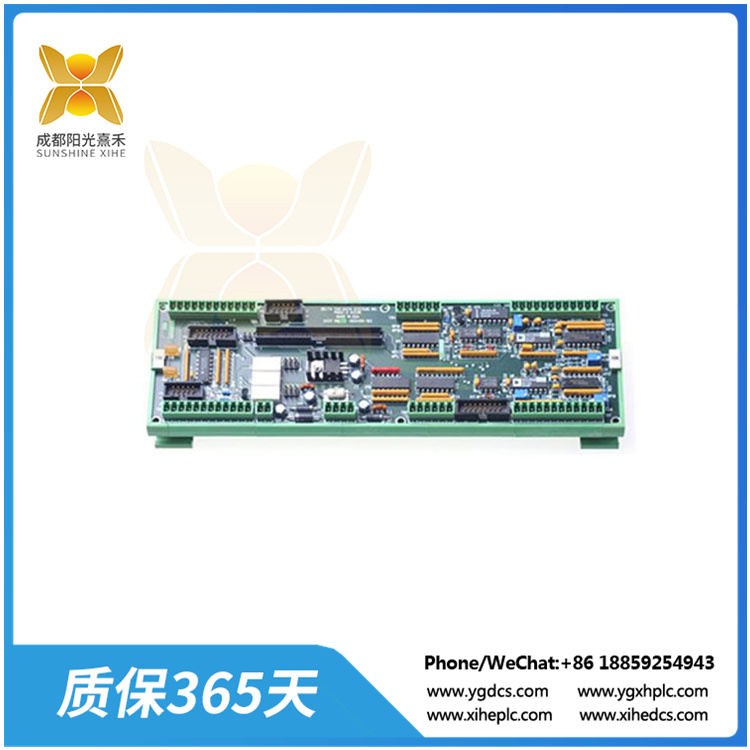

The Delta Tau ACC-8E 2-Axis Digital to Analog (DAC) Breakout Terminal Block Board for the PMAC2 family of controllers provides the pinouts for two axes with analog-input amplifiers. The amplifiers can be velocity-mode, torque-mode, or sinusoidal input mode (two analog commands); or any mix of the above.

The ACC-8E board has a single flat-cable connection to the PMAC2 (100-pin cable). All of the main signals (DAC outputs, Flags, encoder inputs) to and from the machine can be wired through modular removable terminal blocks. Alternatively, many signals can be connected to the machine through flat cables via on-board IDC headers.
