AF09-30-10 接触器

Description

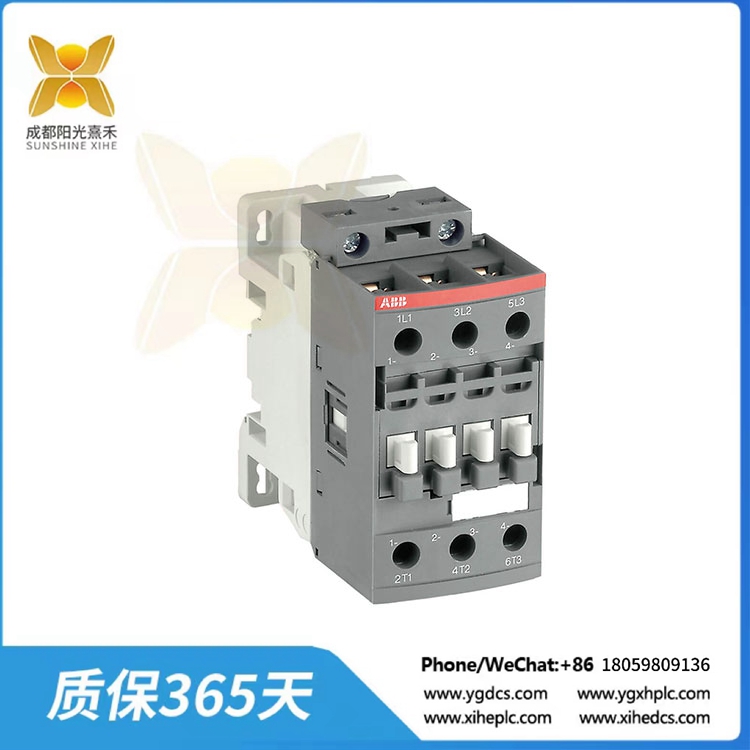

AF09-30-10 接触器

产品型号:af09-30-10-13
产品id: 1sbl137001r1310
欧洲商品编号(ean):3471523110038
目录说明:AF09-30-10-13 100-250V50/60HZ-DC接触器
详细描述:AF09-30-10-13是一款3极690v IEC或600ul接触器，内置1个辅助触点和螺钉端子，控制最高4kw / 400v AC (AC-3)或5hp / 480v UL的电机和最高25a (AC-1)或25a UL的开关电源电路。得益于AF技术，接触器具有宽的控制电压范围(100-250 V 50/60 Hz和DC)，可以管理大的控制电压变化，降低面板能耗，并确保在不稳定的网络中不同的操作。此外，电涌保护是内置的，提供一个紧凑的解决方案。AF接触器具有块式设计，可以很容易地扩展附加的辅助接触块和其他各种配件。

尺寸
产品净宽:45mm
产品净深:77毫米
产品净高:86毫米
产品净重:0.27公斤

AF09-30-10

AF09-30-10 接触器

Product Model :af09-30-10-13
Product id: 1sbl137001r1310
European Commodity Number (ean):3471523110038
Catalog Description :AF09-30-10-13 100-250V50/60HZ-DC contactor
Description :AF09-30-10-13 is a 3-pole 690v IEC or 600ul contactor with a built-in auxiliary contact and screw terminal. Control motors up to 4kw / 400v AC (AC-3) or 5hp / 480v UL and switching power circuits up to 25a (AC-1) or 25a UL. Thanks to AF technology, the contacters have a wide control voltage range (100-250 V 50/60 Hz and DC), which can manage large control voltage variations, reduce panel energy consumption, and ensure different operation in unstable networks. In addition, surge protection is built in to provide a compact solution. AF contacts are available in block design and can be easily extended with additional auxiliary contact blocks and various other accessories.

dimension
Product width :45mm
Product depth :77 mm
Product height :86 mm
Net weight :0.27 kg
