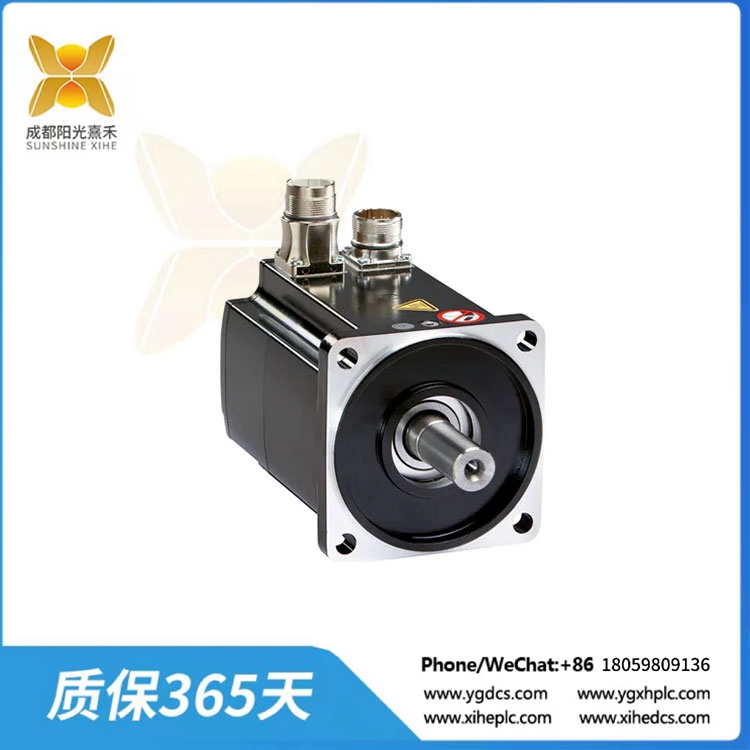

BMH1902P32F2A 运动伺服驱动器

Description

BMH1902P32F2A 运动伺服驱动器

该产品是lexum 32系列的一部分，该系列为0.15kW至7kW的机器提供运动伺服驱动器。10极伺服电机具有中等惯性矩，最大机械转速为4000RPM，平行键控轴和持式制动器。它配备了SinCos Hiperface®编码器(131072点/转x 4096转)，用于从伺服电机到伺服驱动器的数据自动传输。BMH伺服电机是中等惯量电机，它特别适用于高负载应用，并允许以更稳健的方式调整运动。为同步伺服电机，额定供电电压为480V，连续失速电流为30.8A，连续功率为6.1W。轴的尺寸为38毫米(直径)× 80毫米(长度)。它配有可旋转的直角连接器，用于电气连接。它是IP65(标准)和IP67(带套件)额定产品。其尺寸为长310mm ×宽190mm，定心领尺寸为深4mm ×直径180mm，安装孔圆直径215mm。它重32.5公斤。本产品兼容lexum 32伺服驱动器。它支持国际标准190mm法兰安装与自然对流冷却系统。编码器给出电机的绝对位置，使流量同步，并将数据从伺服电机发送到伺服驱动器，在伺服驱动器启动时提供电机的自动识别。BMH伺服电机采用三相定子和钕铁硼(NdFeB)磁铁。外壳采用RAL 9005不透明黑漆保护涂层。4点轴向安装法兰。电缆和连接器需单独订购。

BMH1902P32F2A

BMH1902P32F2A 运动伺服驱动器

This product is part of the Lexium 32 range, an offer of motion servo drives for machines from 0.15kW to 7kW. The 10-pole servo motor features a medium moment of inertia with maximum mechanical speed of 4000RPM, parallel keyed shaft and holding brake. It is equipped with a SinCos Hiperface® encoder (131072 points/turn x 4096 turns) for automatic transmission of data from the servo motor to the servo drive. BMH servo motor is medium inertia motor, it is particularly suitable for high-load applications and allows the movement to be adjusted in a more robust manner. It is a synchronous servo motor with a rated supply voltage of 480V, a continuous stall current of 30.8A and a continuous power of 6.1W. The shaft dimensions are 38mm (Diameter) x 80mm (Length). It is furnished with rotatable right-angled connectors for electrical connection. It is an IP65 (standard) and IP67 (with kit) rated product. Its dimensions are 310mm (Length) x 190mm (Width), centring collar dimensions are 4mm (Depth) x 180mm (Diameter) with 215mm circle diameter of the mounting hole. It weighs 32.5kg. This product is compatible with Lexium 32 servo drives. It supports international standard 190mm flange mount with a natural convection cooling system. Encoder gives the absolute position of the motor so that flows can be synchronized and sends data from the servo motor to the servo drive, which provides automatic identification of the motor when the servo drive starts. BMH servo motor with a 3-phase stator and neodymium iron boron (NdFeB) magnets. Casing with RAL 9005 opaque black paint protective coating. 4-point axial mounting flange. Cables and connectors to be ordered separately.
